PENETRATION WITH SLEEVE - (866.025.040.10FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.040.10FS
EAN no.: 5705499413267
NRF no.: 2172742

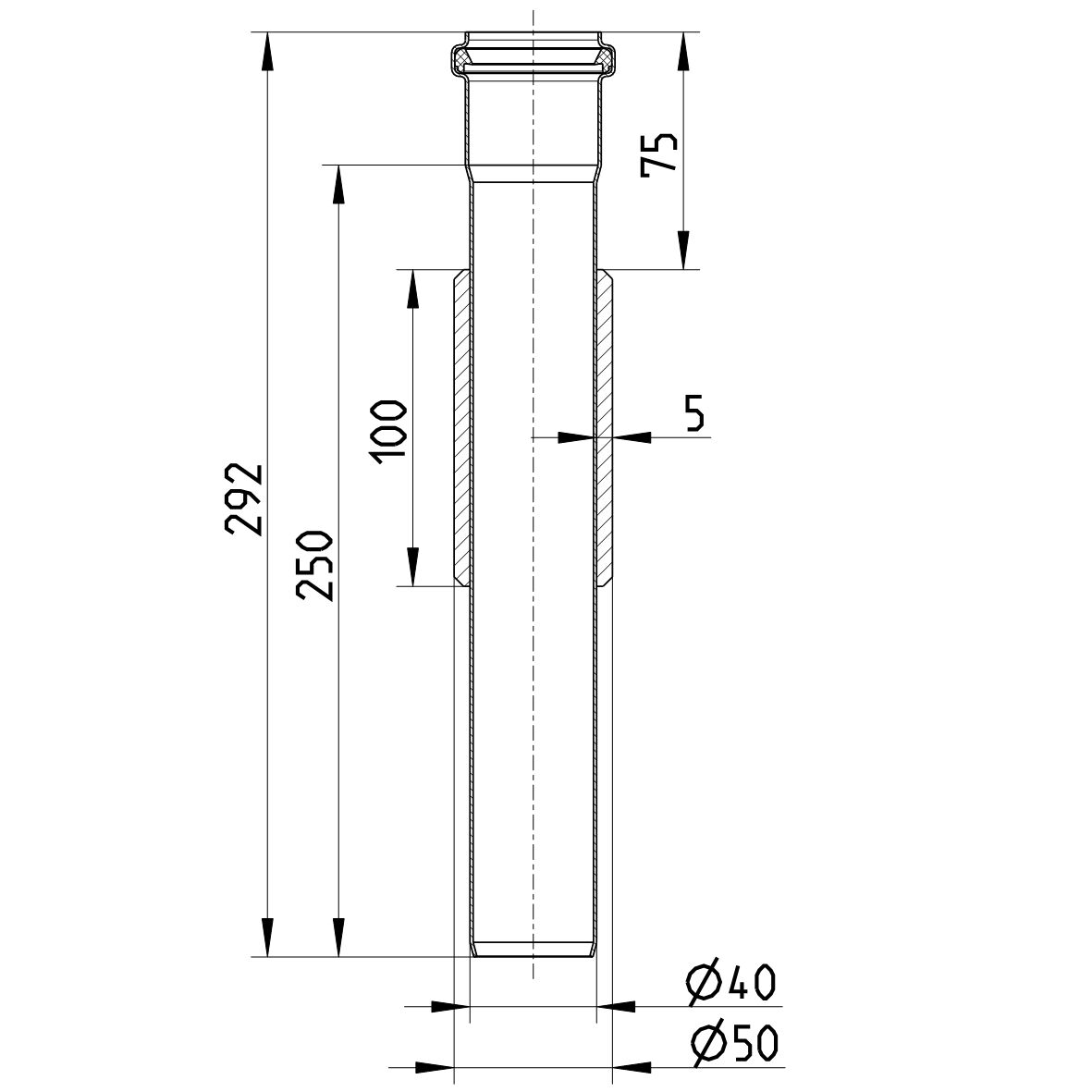

PENETRATION WITH SLEEVE
-Diameter: Ø40mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,83 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
Declaration of Conformity Welded penetrations
BLÜCHER® EuroPipe EPD
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA
