PENETRATION WITH SLEEVE - (866.025.110.10FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.110.10FS
EAN no.: 5705499411140
NRF no.: 2172754

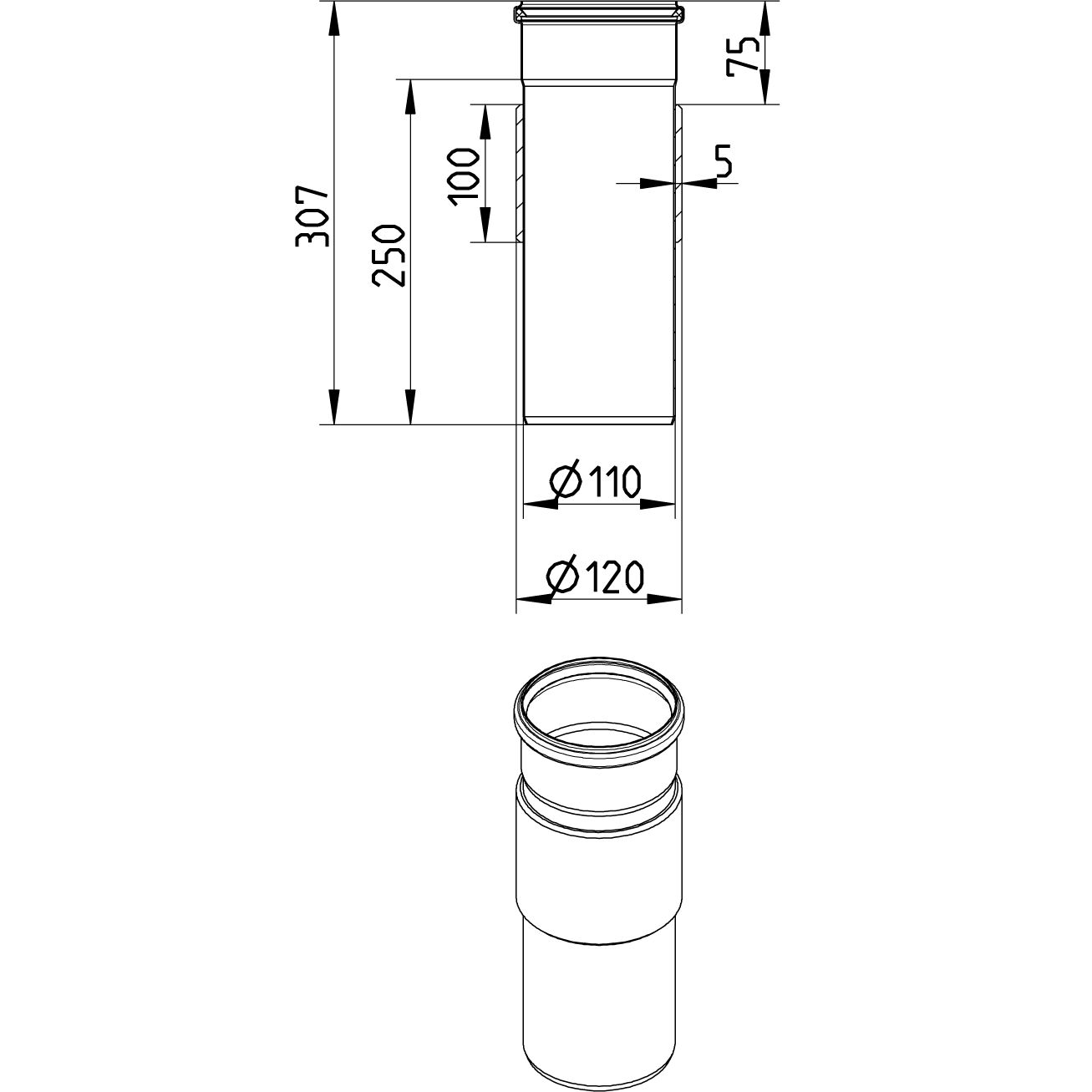

PENETRATION WITH SLEEVE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 2,20 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing ABS - 23-2329630-PDA Achilles Certificate - 46702-22 Lloyds Register LR22419510TA ClassNK - Type866, TA21159E(N)_21FPA11DA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes
