PENETRATION WITH SLEEVE - (866.025.200.10FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.025.200.10FS
EAN no.: 5705499413328
NRF no.: 2172762

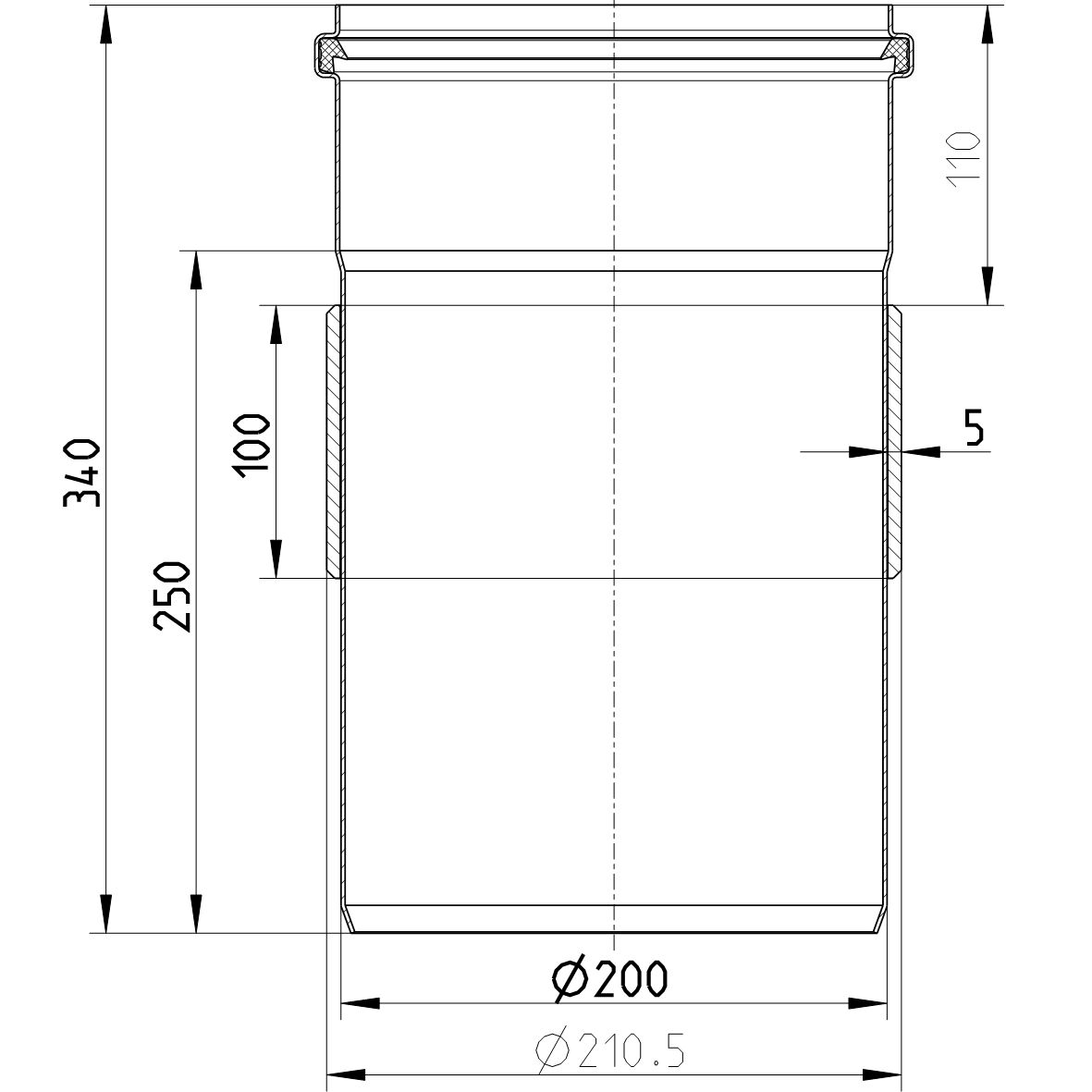

PENETRATION WITH SLEEVE
-Diameter: Ø200mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 5,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
HACCP Food Safety Programme - Australasia
DNV - MERB0001N3Y, Rev0
BLÜCHER® EuroPipe EPD
TÜRK LOYDU - 25041616077231247 RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA ClassNK - Type866, 866.032, 868 TA26494E(N)_26FPA26DA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings
