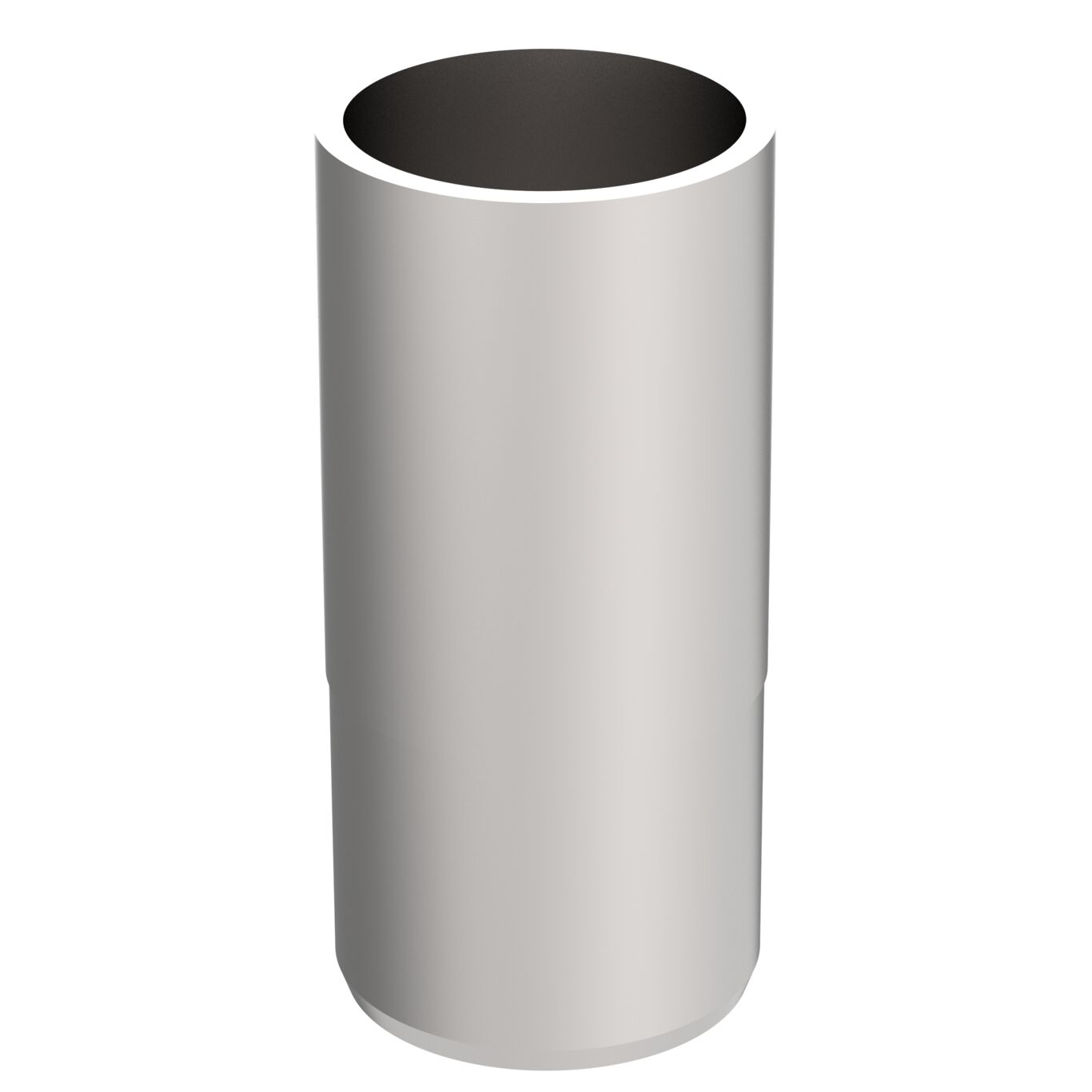

PENETRATION WITH SPIGOT - (872.076.075 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.076.075 S
EAN no.: 5705499411355
NRF no.: 2170345

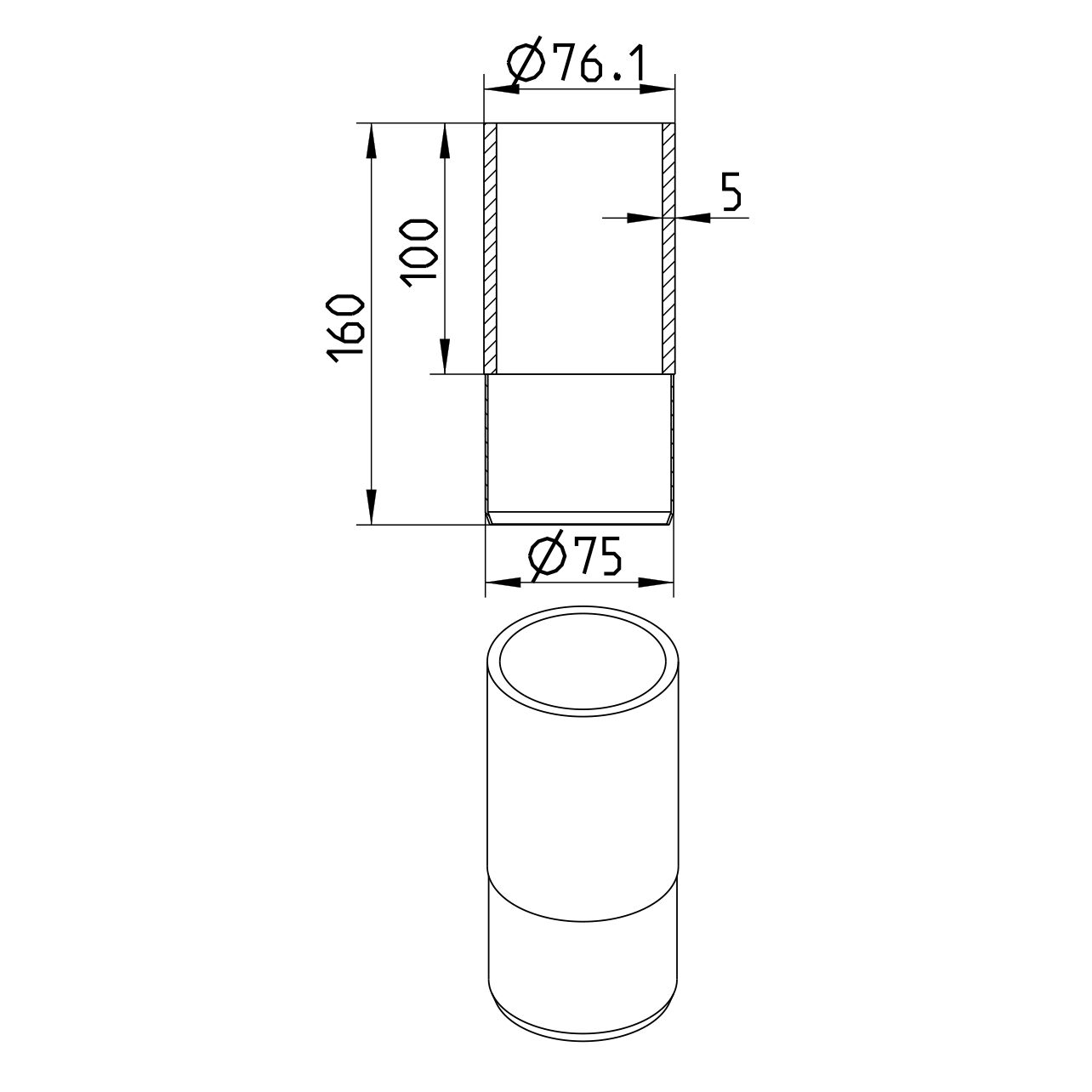

PENETRATION WITH SPIGOT
- Welding transition: Ø76.1mm
- Diameter: Ø75mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 160 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,99 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
BLÜCHER® EuroPipe EPD
HACCP Food Safety Programme - Australasia
DNV - MERB0001N3Y, Rev0
TÜRK LOYDU - 25041616077231247
DNV - MEDB000016W, Rev8, Penetrations with SI sealing
