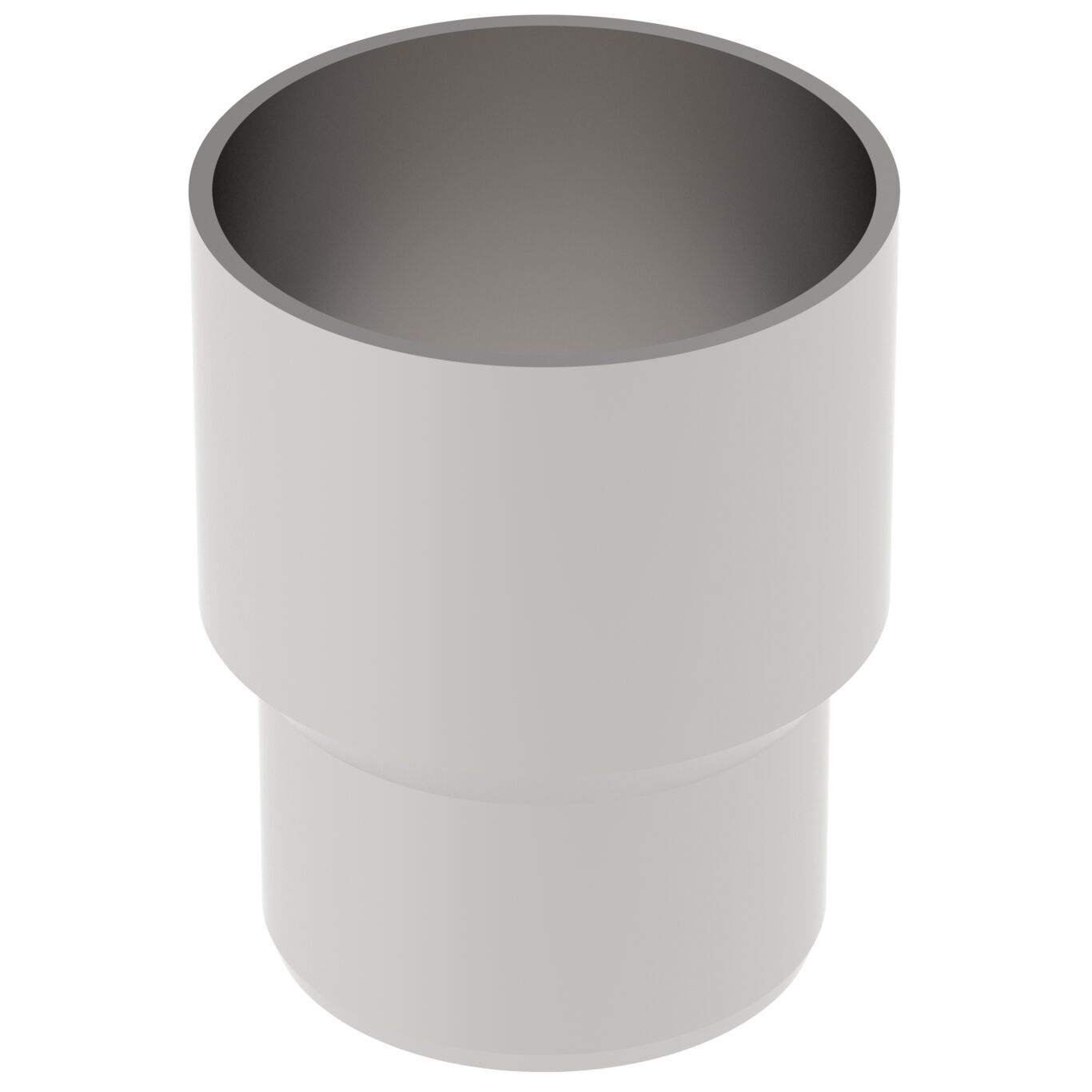

PENETRATION WITH SPIGOT - (872.150.125 S)
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.150.125 S
EAN no.: 5705499139754

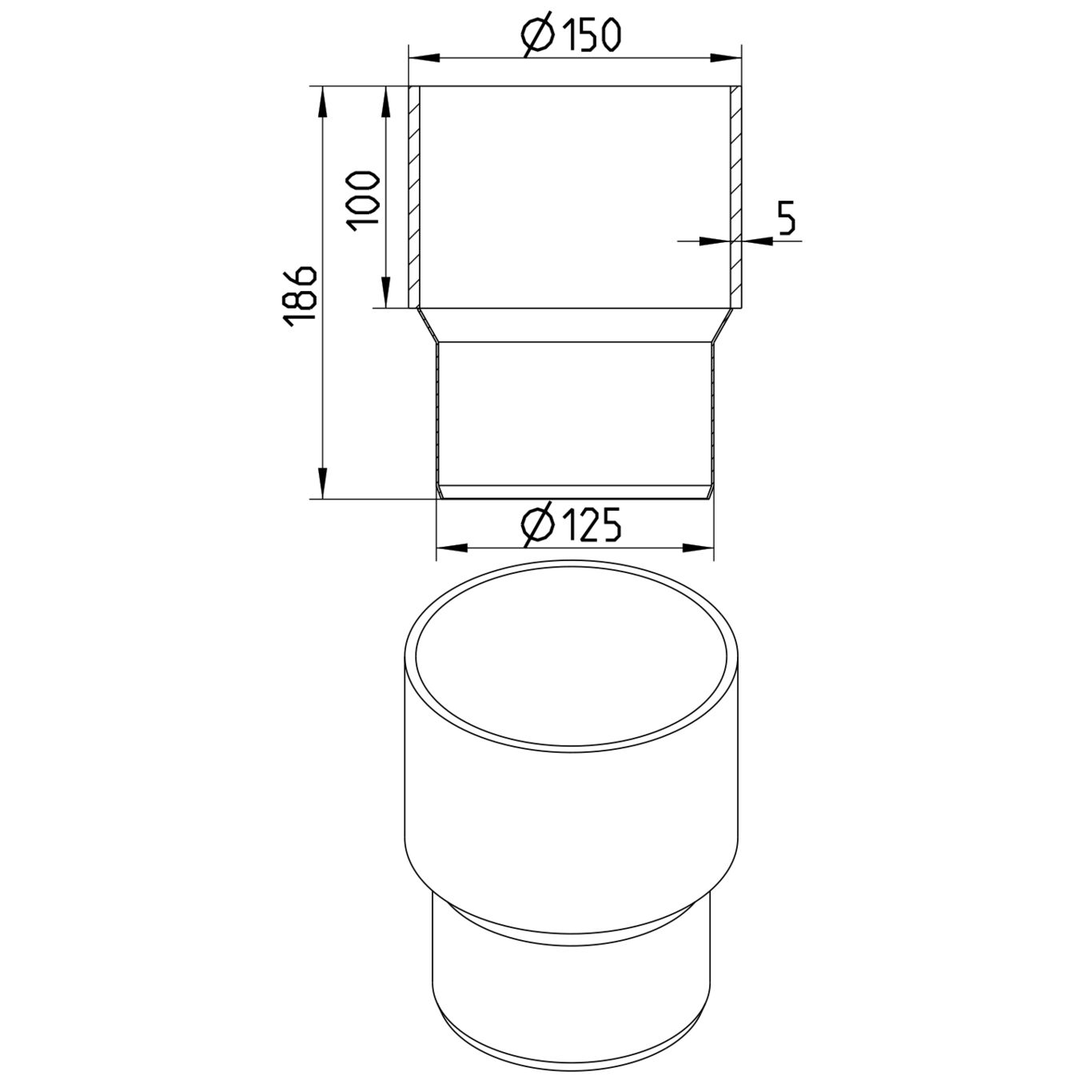

PENETRATION WITH SPIGOT
- Welding transition: Ø150mm
- Diameter: Ø125mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Bulkhead) | A0-A60 |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 186 |
Outlet Diameter (mm) | 125 |
Weight (kg) | 2,10 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
