ROOF DRAIN FOR GRAVITY - (401.104.075)
Part Of the Series: Drain for gravity-bitumen
Type no.: 401.104.075
EAN no.: 5705499132748
VVS no.: 164100075
RSK no.: 5173692
LVI no.: 3384519

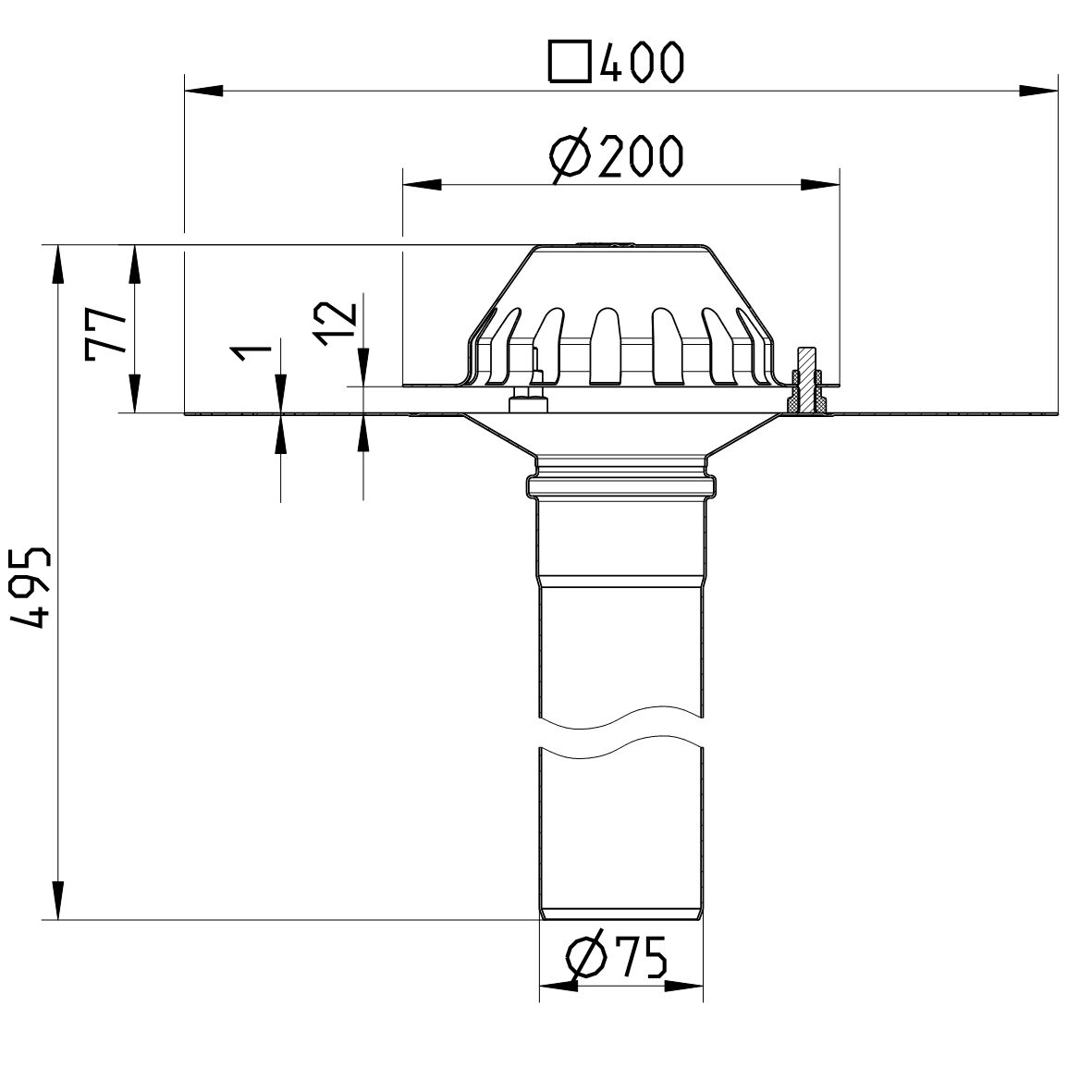

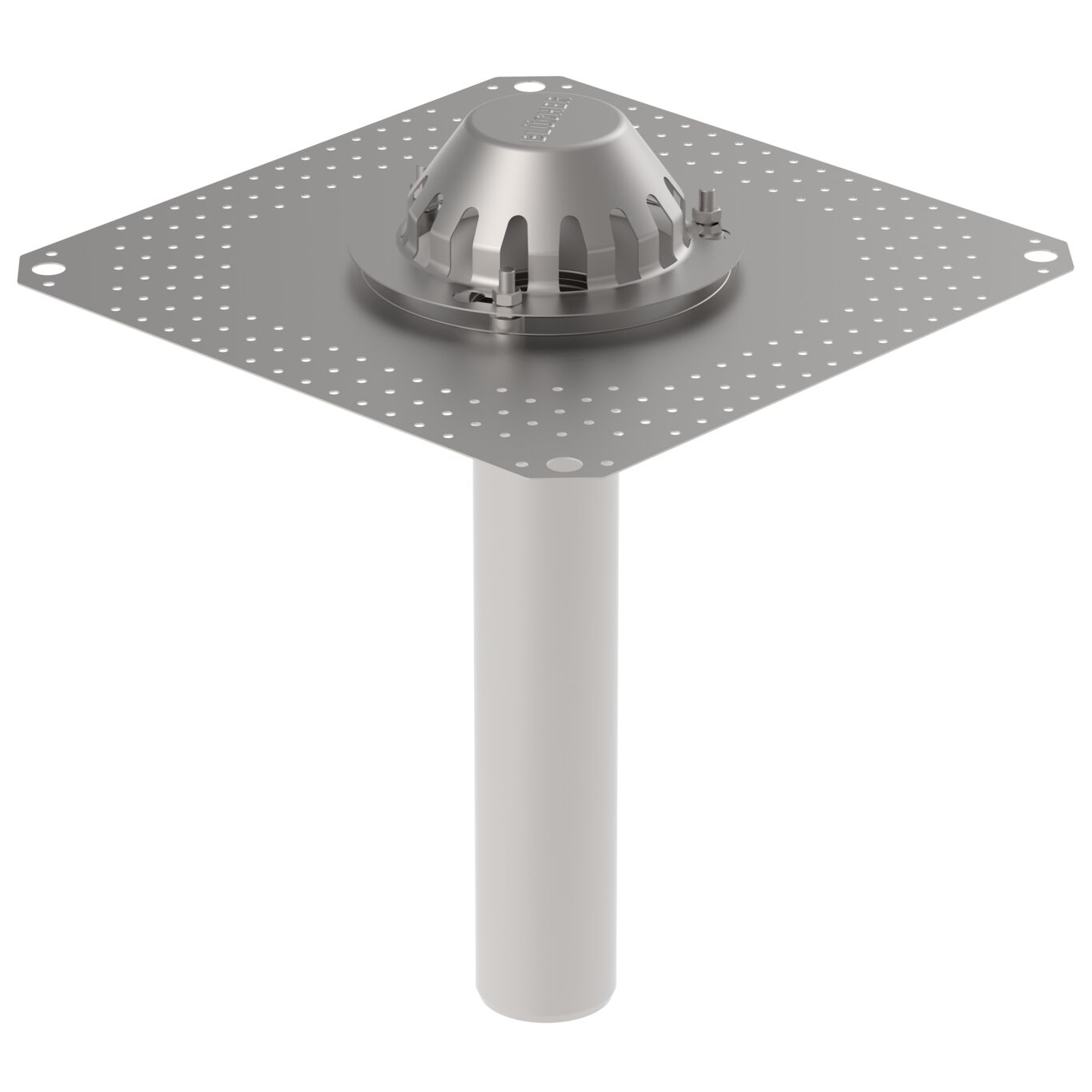

ROOF DRAIN FOR GRAVITY
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 5.0 |
Minimum Height (mm) | 495 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Roof | Bitumen |
System | Gravity |
Weight (kg) | 1,96 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
