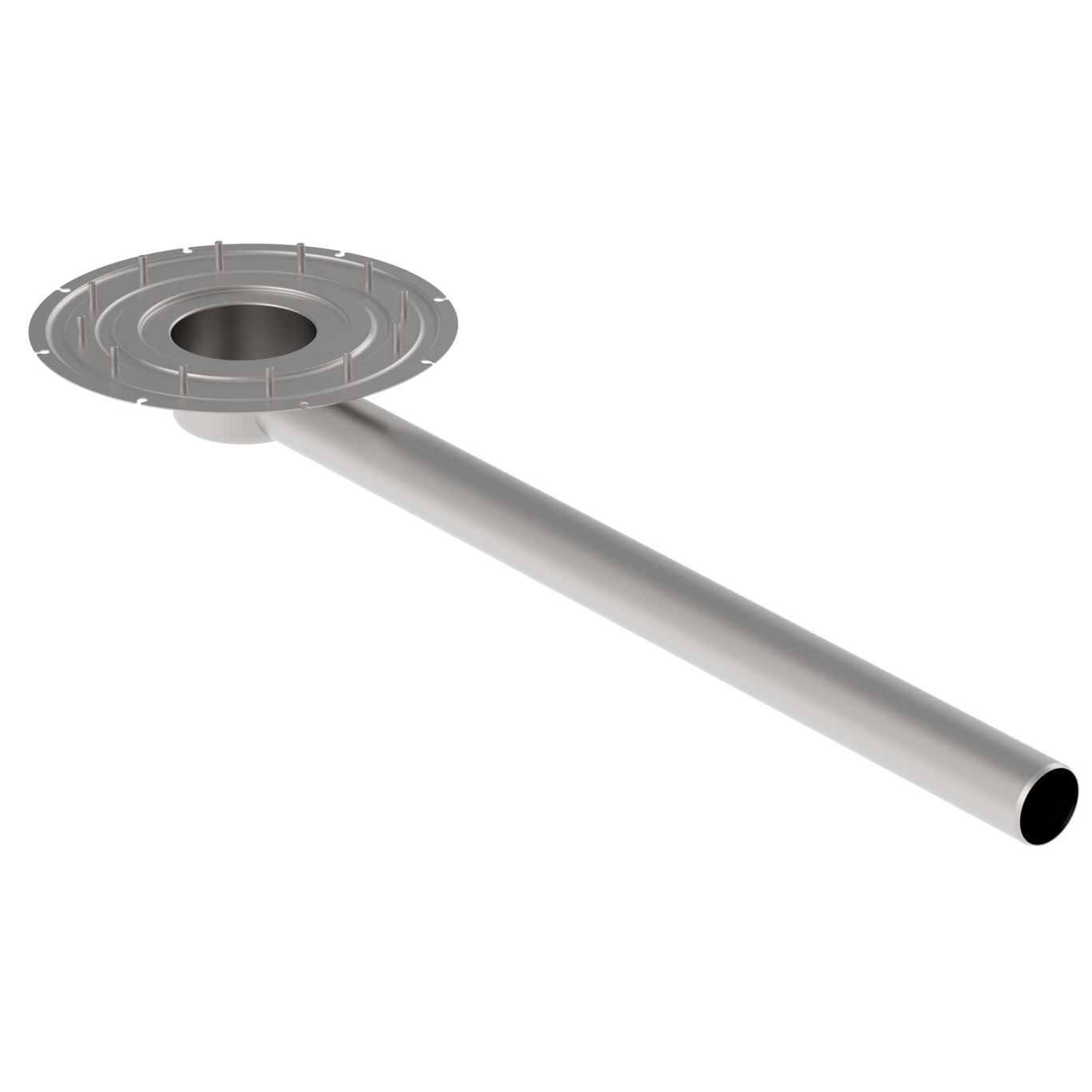

PARAPET DRAIN FOR GRAVITY - (405.000.075)
×
![]()
Part Of the Series: Drain-Parapet
Type no.: 405.000.075
EAN no.: 5705499139037
NRF no.: 3397199
PARAPET DRAIN FOR GRAVITY
-Without leaf guard
-Clamping flange : Bitumen and single ply membrane
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301

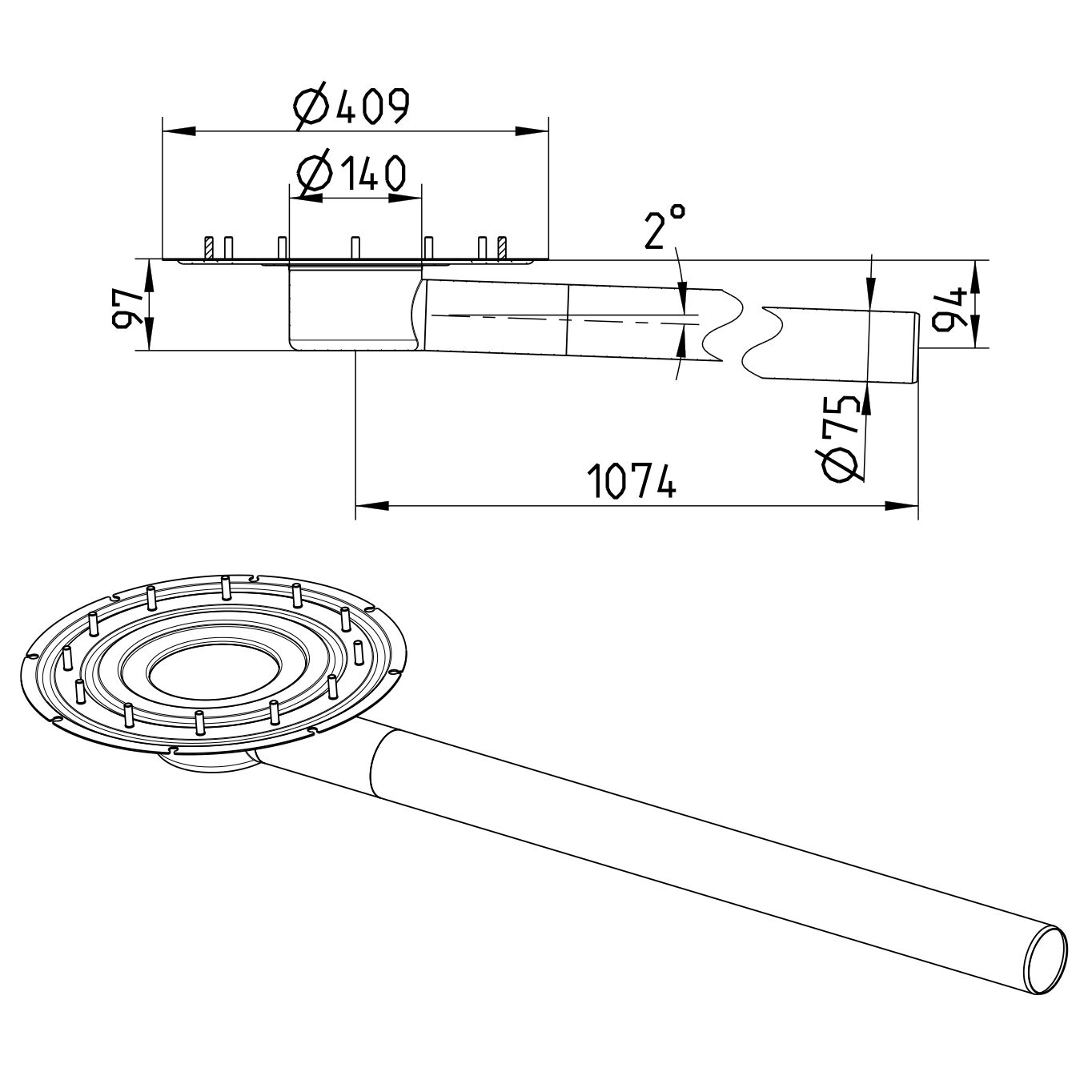

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 97 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Roof | Bitumen / Single ply membrane |
| System | Gravity |
| Weight (kg) | 3,77 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
