ROOF DRAIN FOR SIPHONIC - (403.200.040)
Part Of the Series: Drain for siphonic-bitumen collar
Type no.: 403.200.040
EAN no.: 5705499140385
VVS no.: 164114040

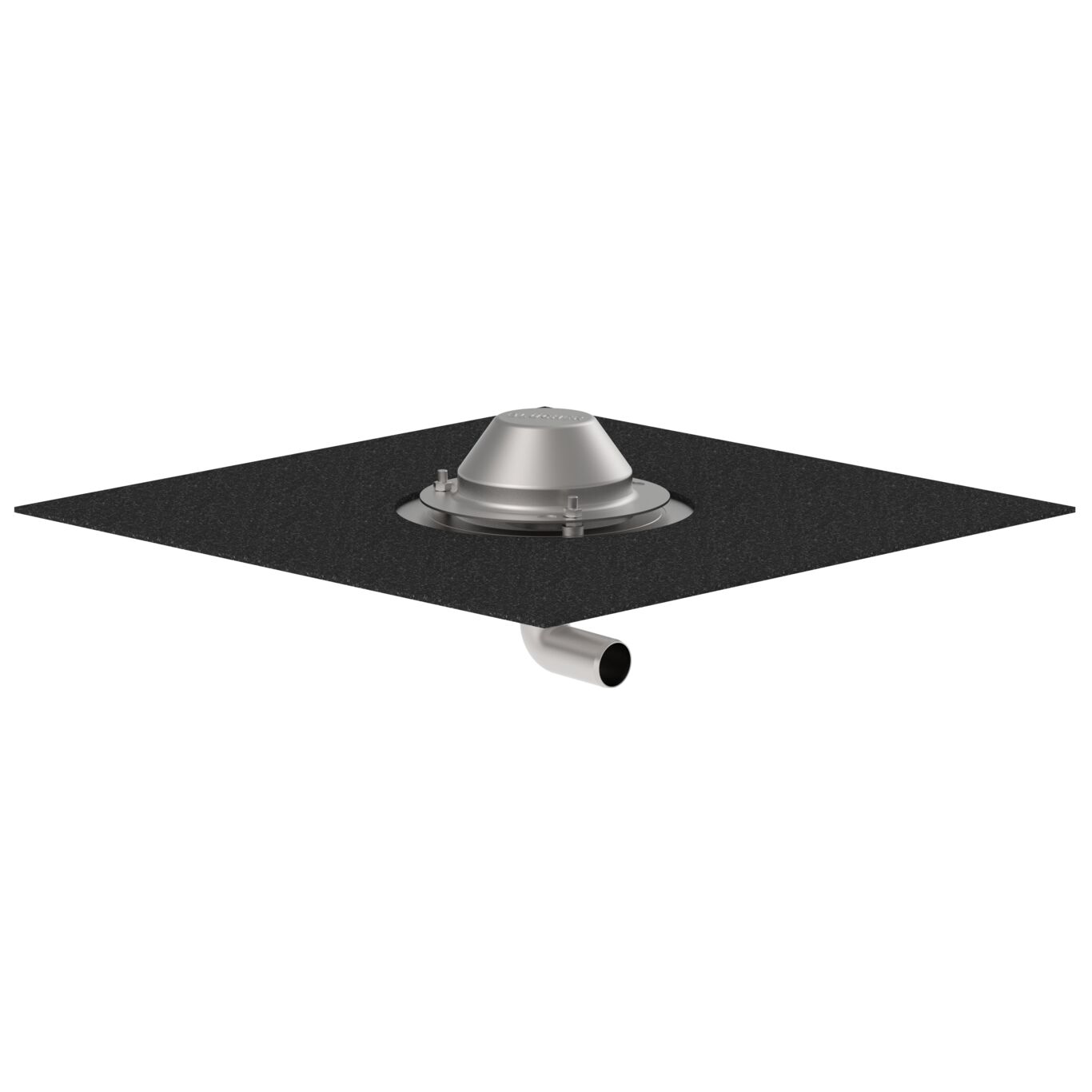

ROOF DRAIN FOR SIPHONIC
- With pre-mounted bitumen collar
- Roof: bitumen

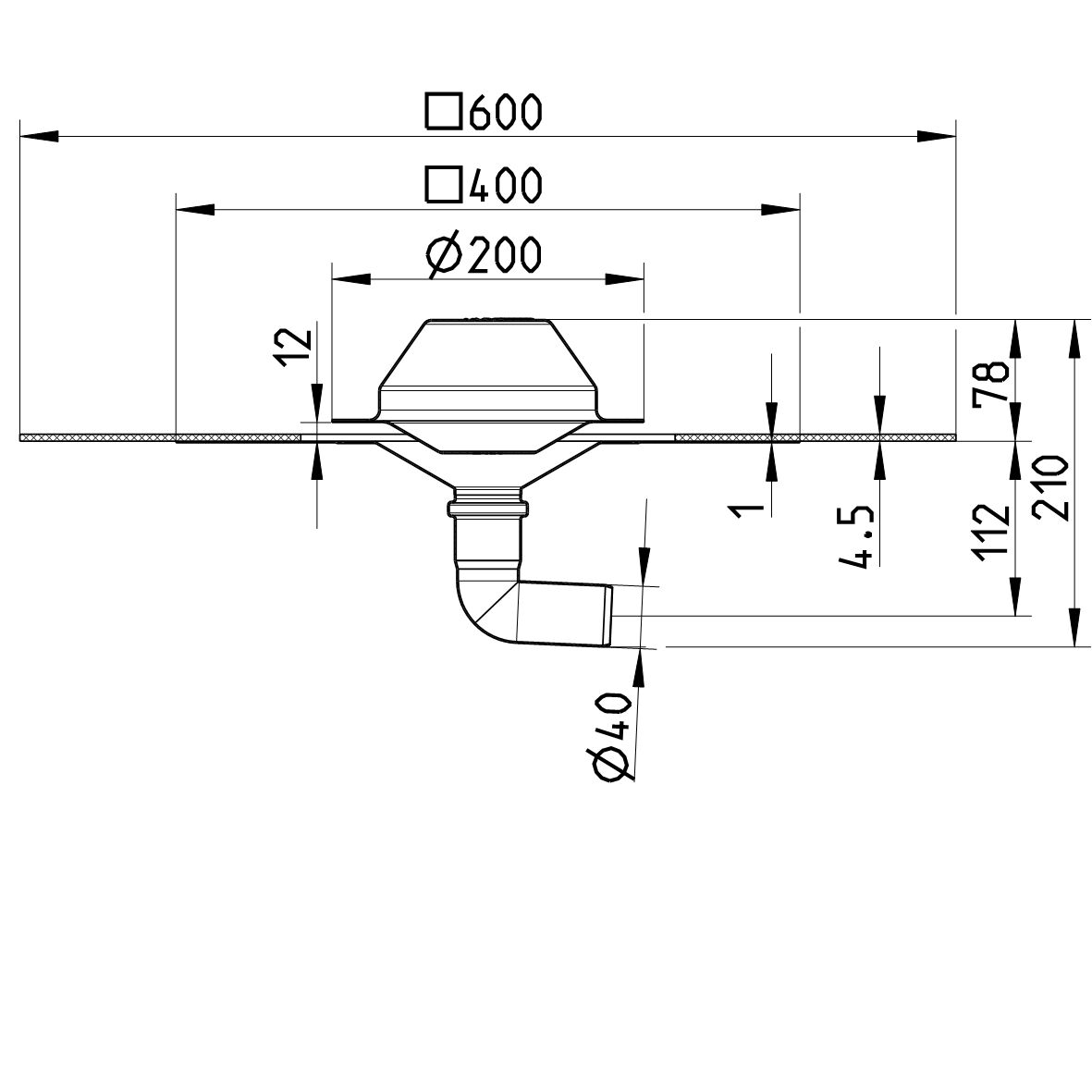

- Flange: 400x400mm
- Outlet: Ø40mm, horizontal
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 4.1 |
Minimum Height (mm) | 210 |
Outlet Diameter (mm) | 40 |
Outlet Direction | Horizontal |
Roof | Bitumen |
System | Siphonic |
Weight (kg) | 3,69 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
