ROOF DRAIN FOR SIPHONIC - (403.200.075)
×
![]()
Part Of the Series: Drain for siphonic-bitumen collar
Type no.: 403.200.075
EAN no.: 5705499141542

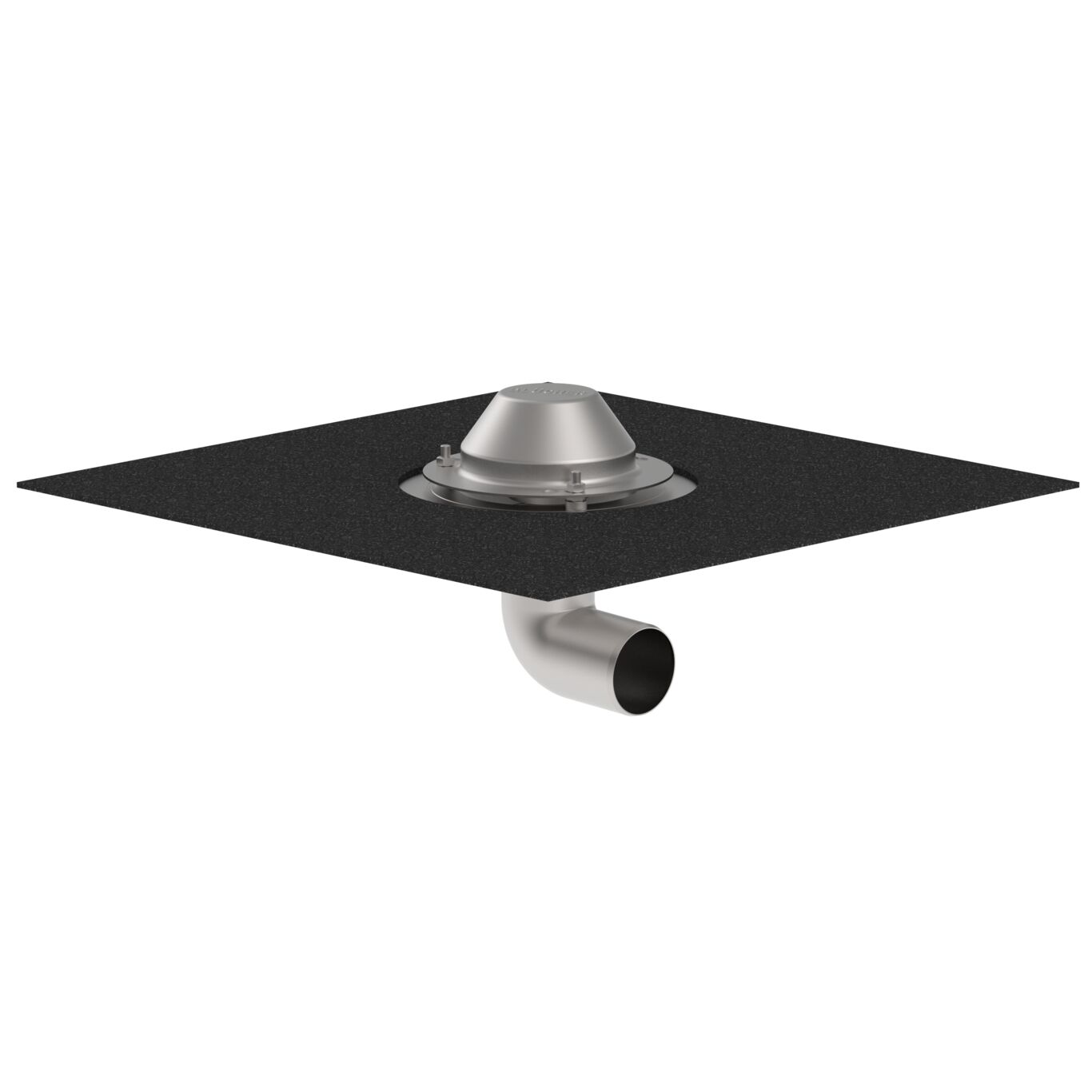

ROOF DRAIN FOR SIPHONIC
- With pre-mounted bitumen collar
- Roof: bitumen
- Flange: 400x400mm
- Outlet: Ø75mm, horizontal
- Stainless steel: AISI304/EN1.4301

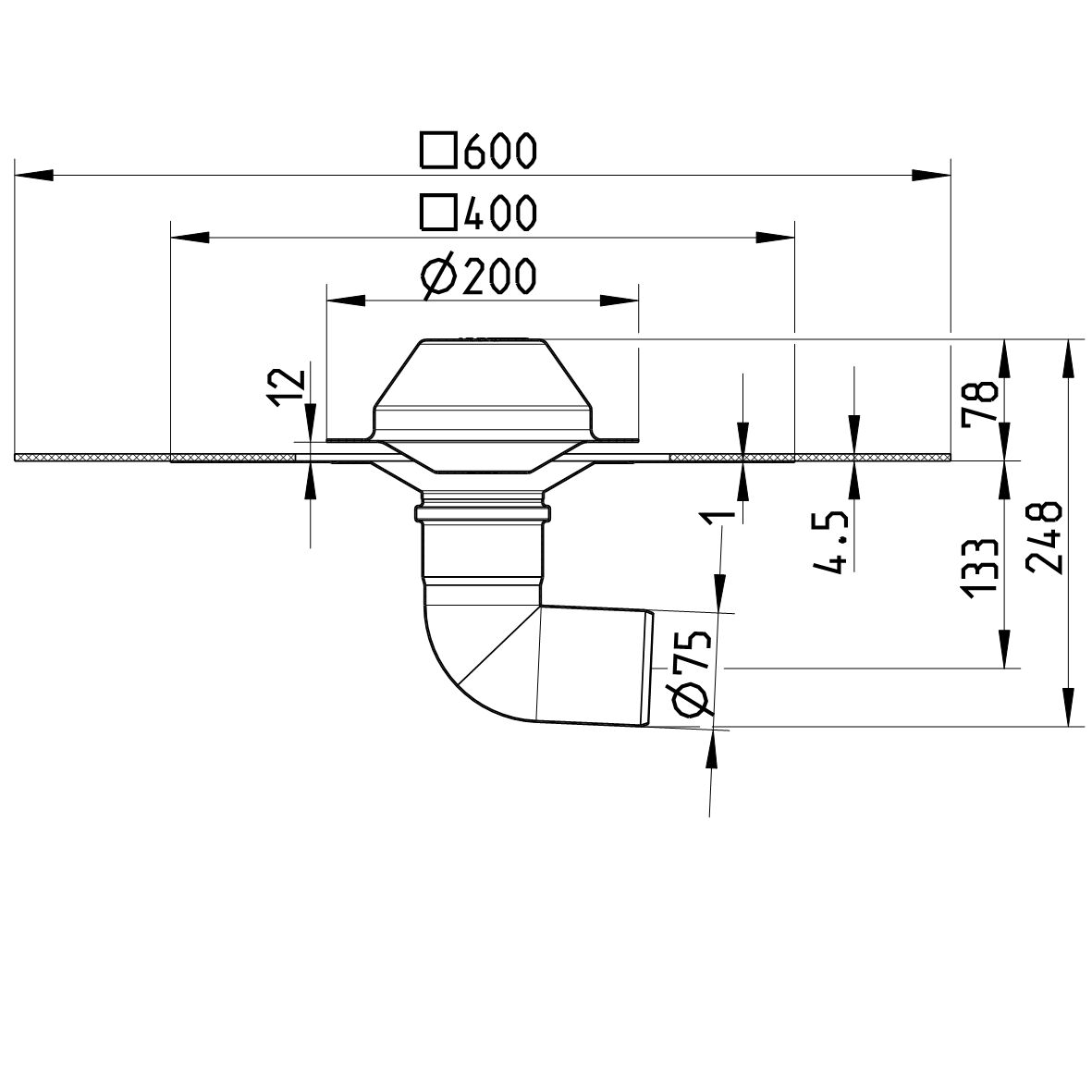

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 18.8 |
| Minimum Height (mm) | 248 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 3,93 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
