ROOF DRAIN FOR SIPHONIC - (401.200.040)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.200.040
EAN no.: 5705499141191

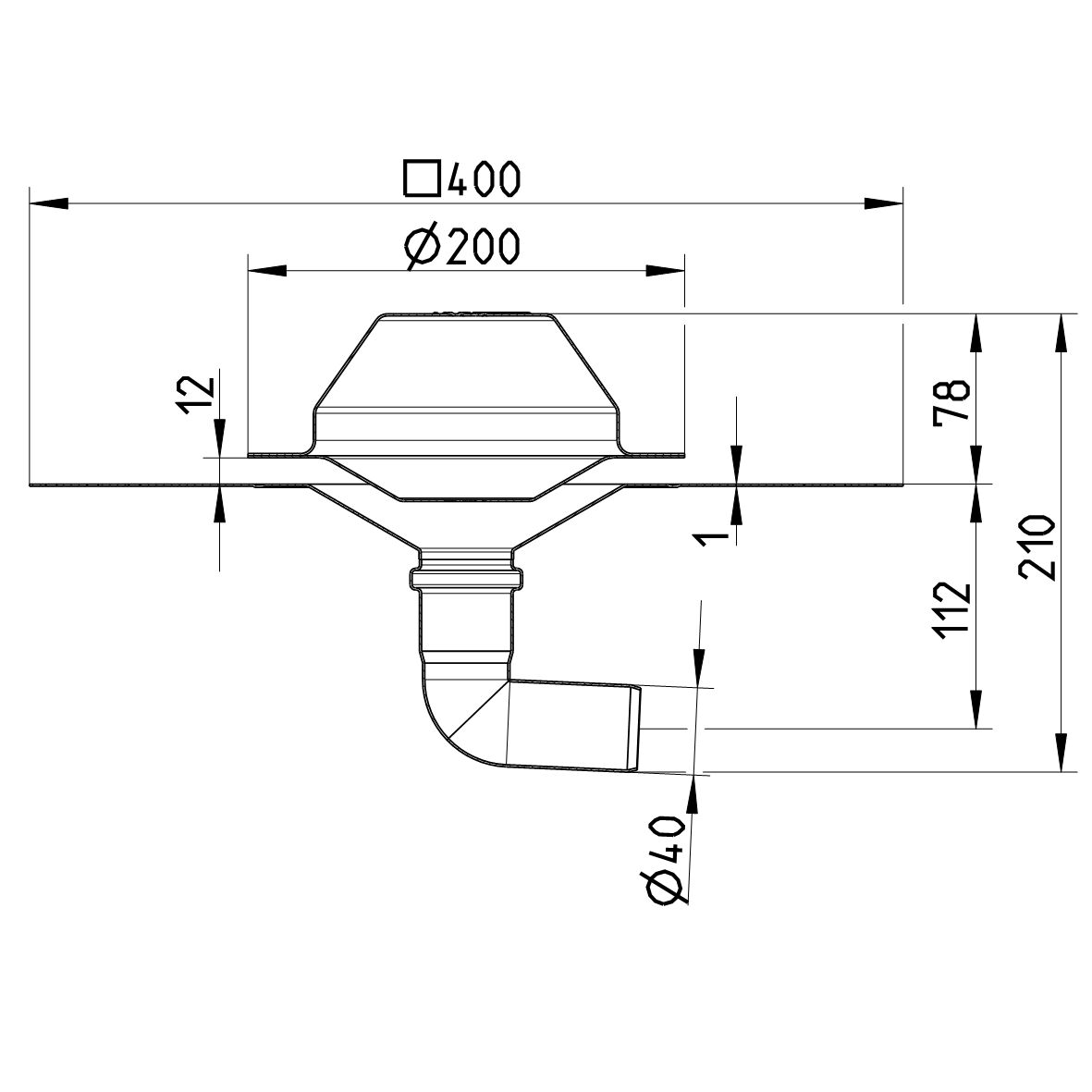

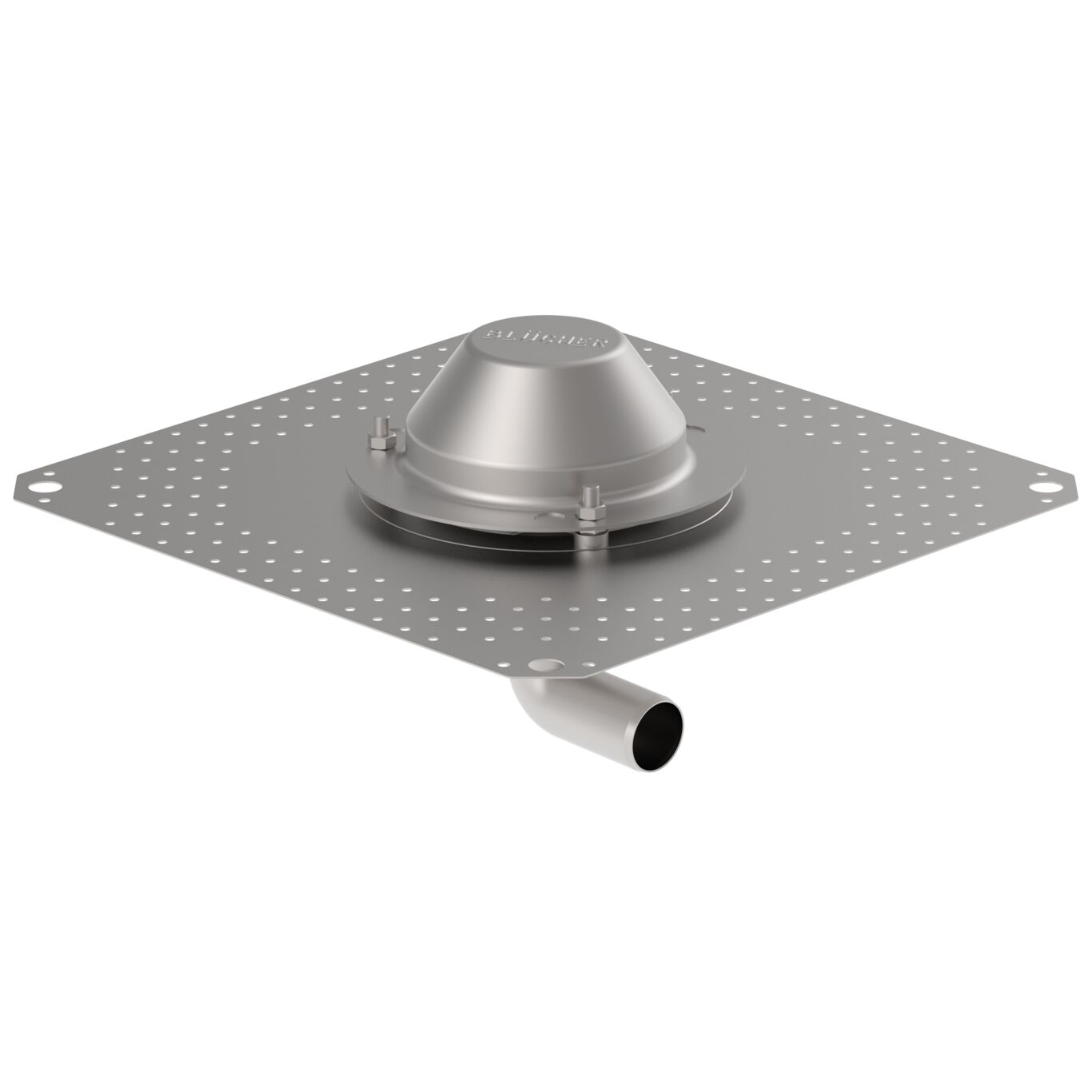

ROOF DRAIN FOR SIPHONIC
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø40mm, horizontal
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 210 |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Horizontal |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 2,12 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
