ROOF DRAIN FOR SIPHONIC - (402.200.075)
×
![]()
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.200.075
EAN no.: 5705499141337

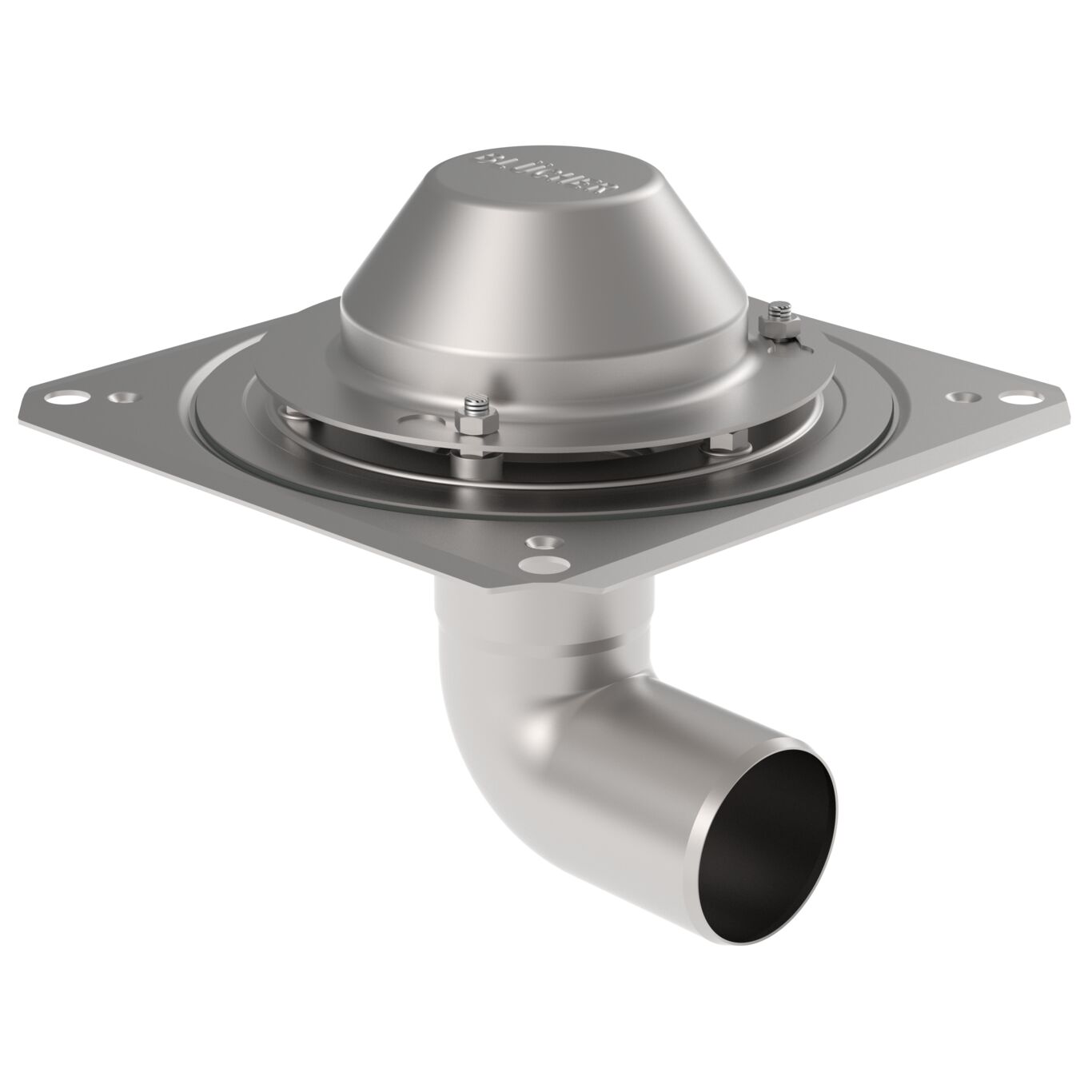

ROOF DRAIN FOR SIPHONIC
- Roof: Single ply membrane
- Flange: 280x280mm
- Outlet: Ø75mm, horizontal
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 18.8 |
| Minimum Height (mm) | 253 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Roof | Single ply membrane |
| System | Siphonic |
| Weight (kg) | 2,94 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
