ROOF DRAIN FOR SIPHONIC - (402.204.040)
×
![]()
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.204.040
EAN no.: 5705499132854
VVS no.: 164111040
RSK no.: 5173703
LVI no.: 3384534

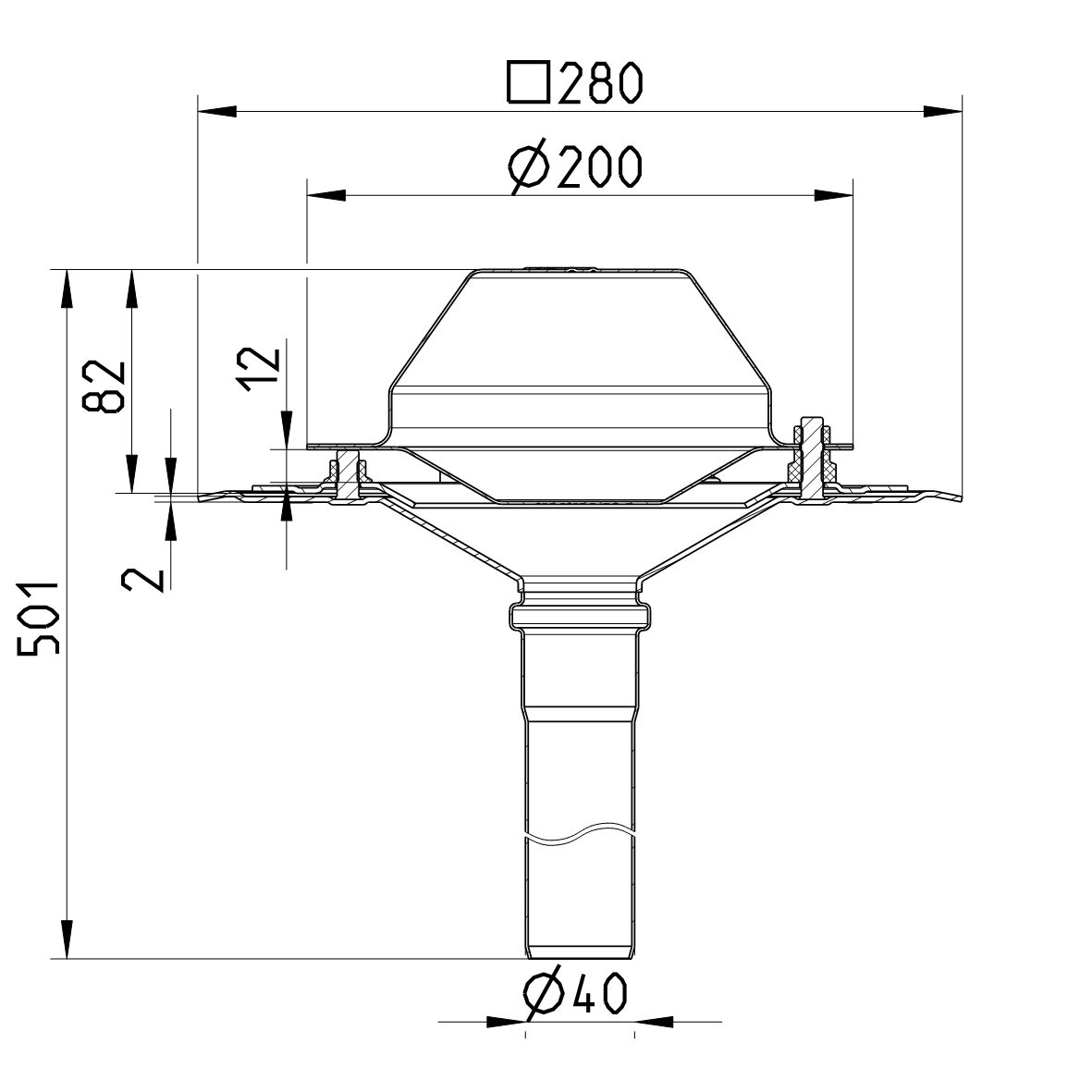

ROOF DRAIN FOR SIPHONIC
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø40mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 501 |
| Outlet Diameter (mm) | 40 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| System | Siphonic |
| Weight (kg) | 2,90 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
