LOWER PART FOR ROOF DRAIN - (401.004.160)
Part Of the Series: Lower part-bitumen
Type no.: 401.004.160
EAN no.: 5705499134513
VVS no.: 164120160

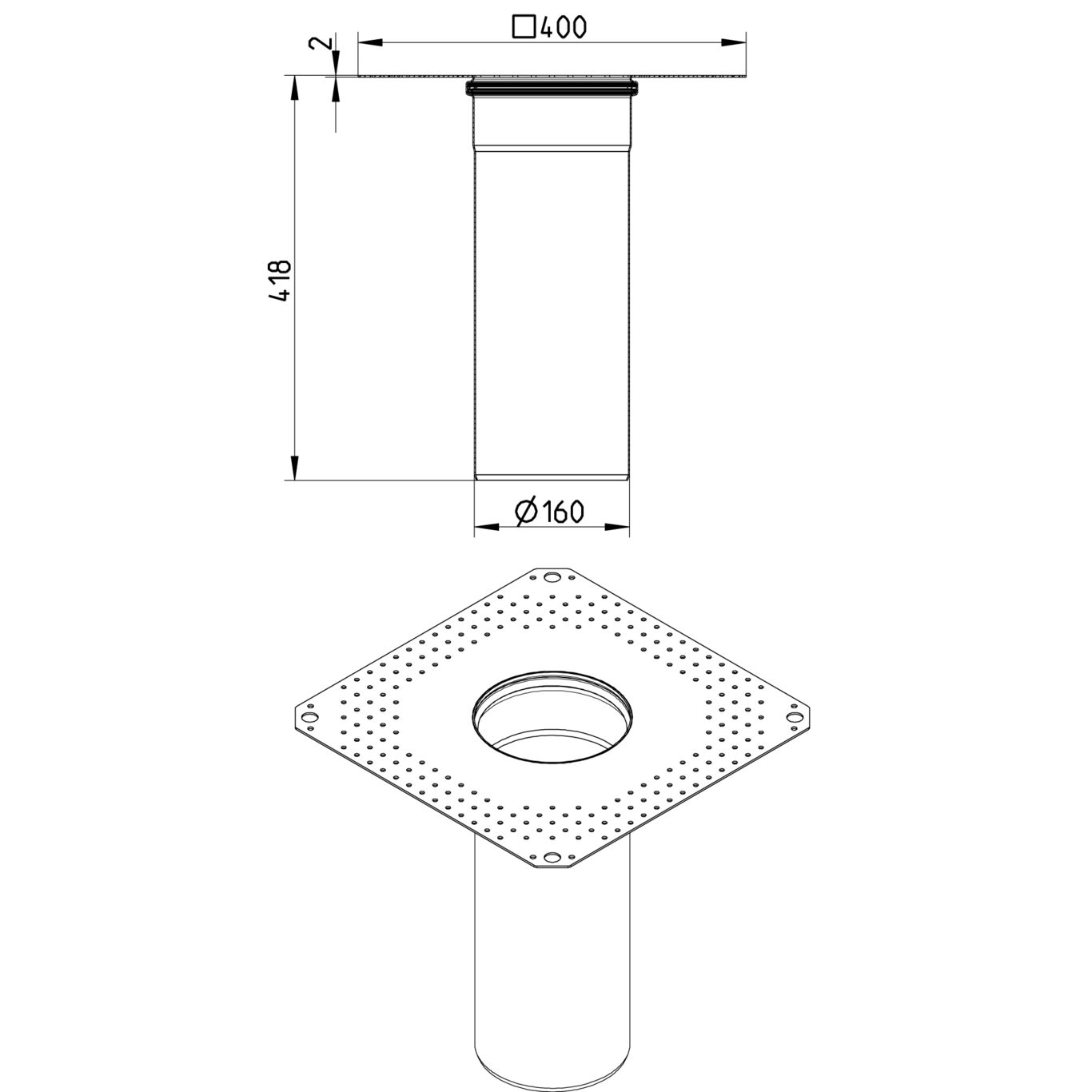

LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 418 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Roof | Bitumen |
Weight (kg) | 3,74 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
