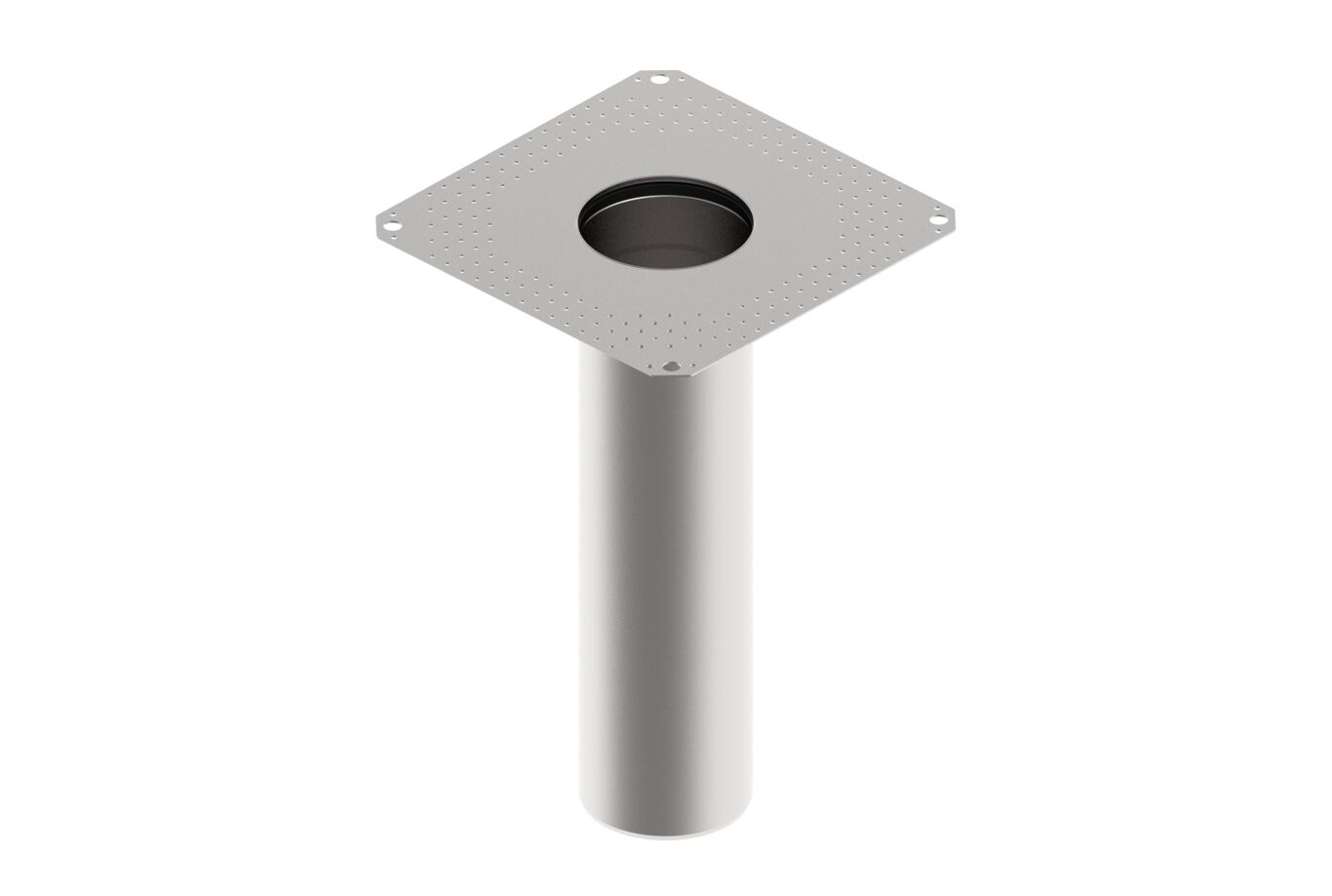

LOWER PART FOR ROOF DRAIN - (401.006.160)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.006.160
EAN no.: 5705499001914
LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

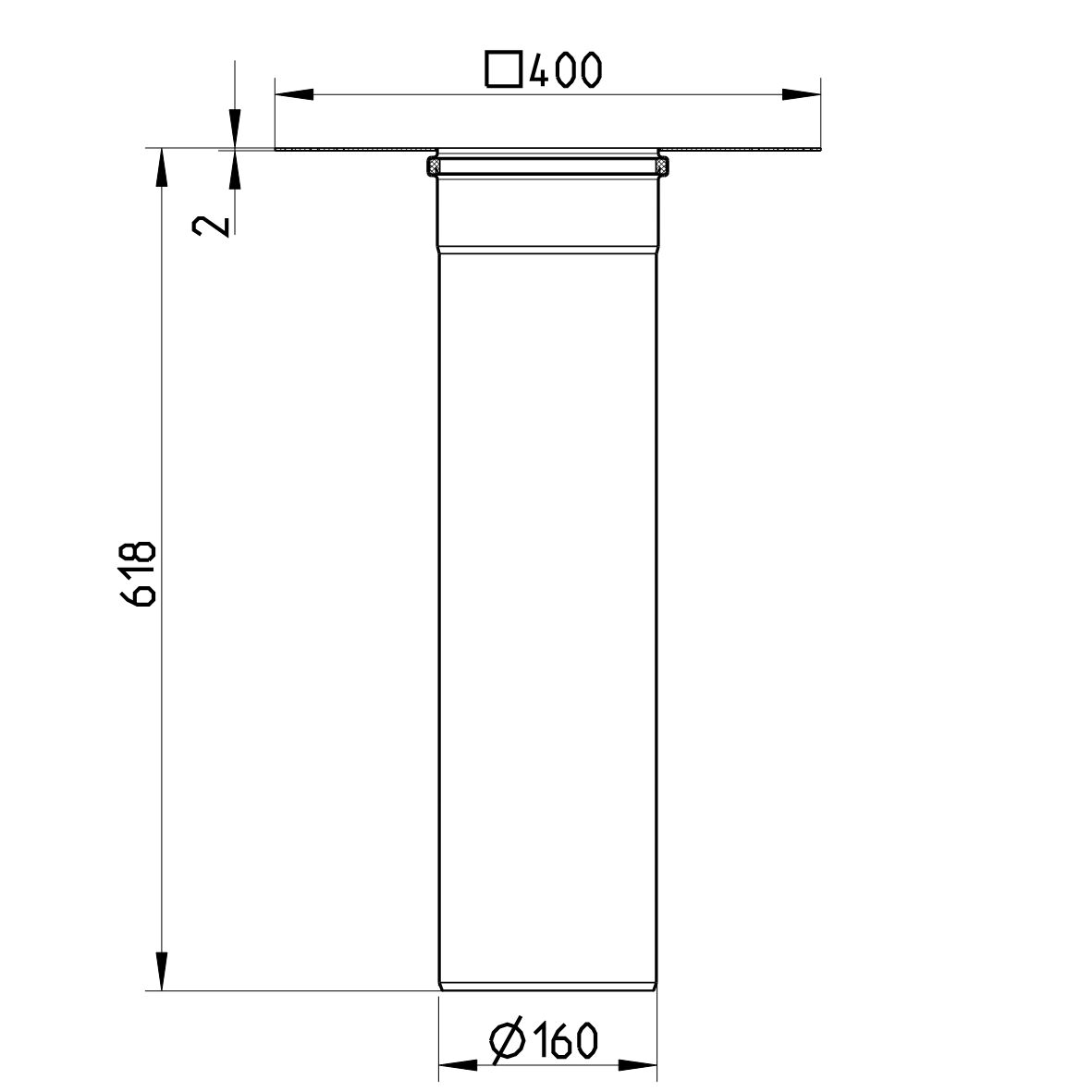

| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 618 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 4,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
