LOWER PART FOR ROOF DRAIN - (403.004.050)
Part Of the Series: Lower part-bitumen
Type no.: 403.004.050
EAN no.: 5705499141443
VVS no.: 164122050

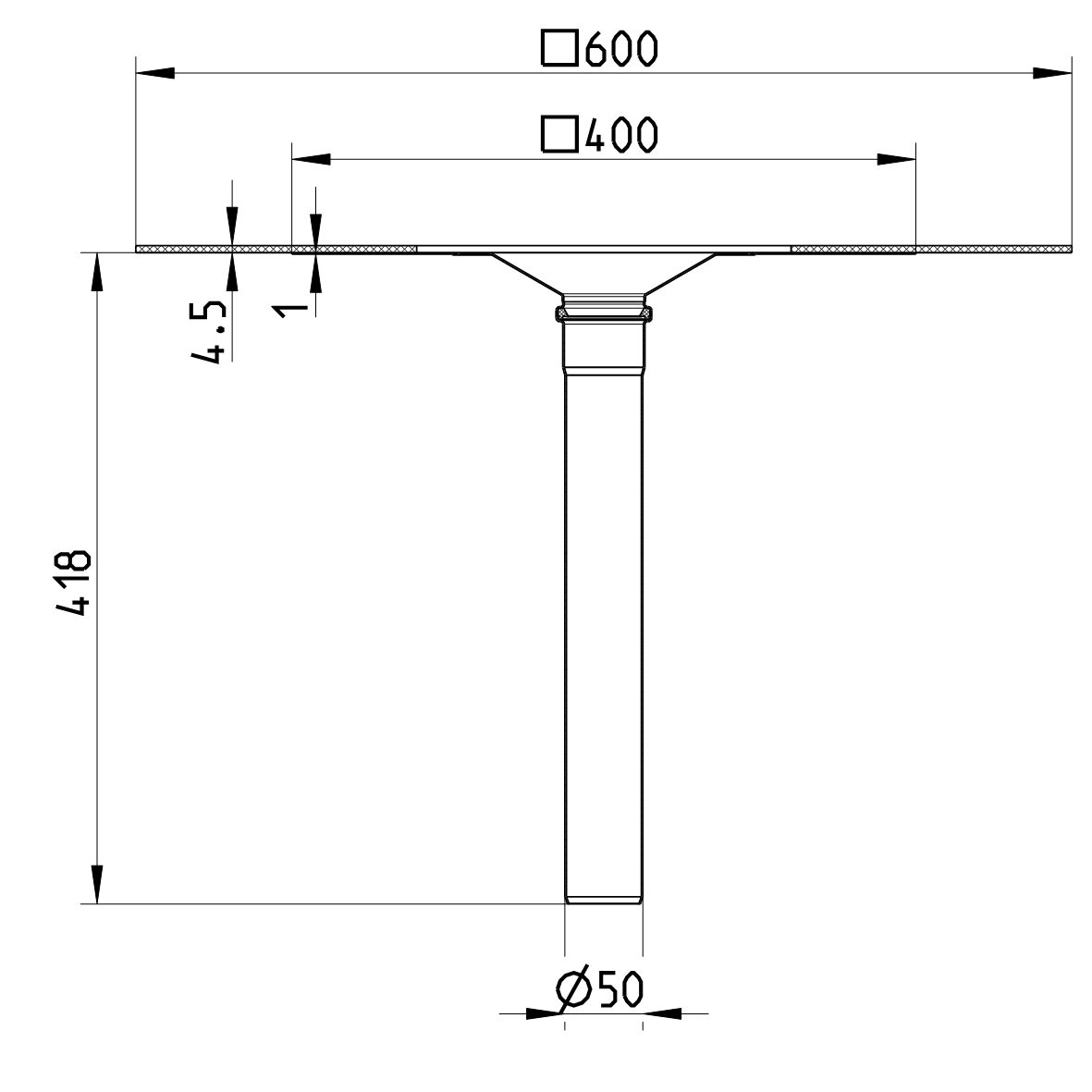

LOWER PART FOR ROOF DRAIN
- With pre-mounted bitumen collar
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø50mm, vertical
- Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 418 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Roof | Bitumen |
Weight (kg) | 3,32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
