LOWER PART FOR ROOF DRAIN - (403.004.160)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 403.004.160
EAN no.: 5705499141481
VVS no.: 164122160

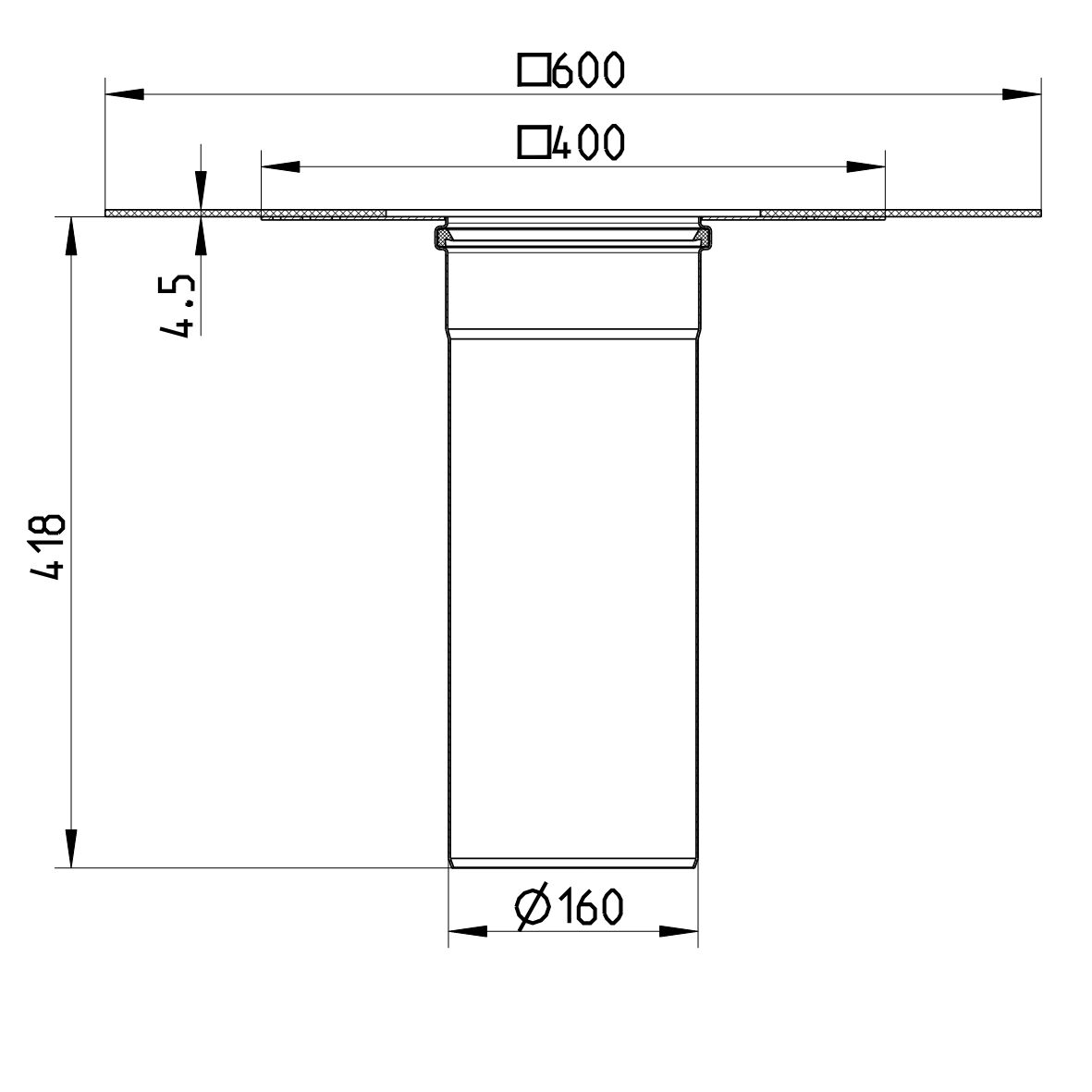

LOWER PART FOR ROOF DRAIN
- With pre-mounted bitumen collar
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø160mm, vertical
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 6,08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
