LOWER PART FOR ROOF DRAIN - (402.004.110)
×
![]()
Part Of the Series: Lower part-single ply membrane
Type no.: 402.004.110
EAN no.: 5705499132984
VVS no.: 164121110
NRF no.: 3395013
LVI no.: 3384527

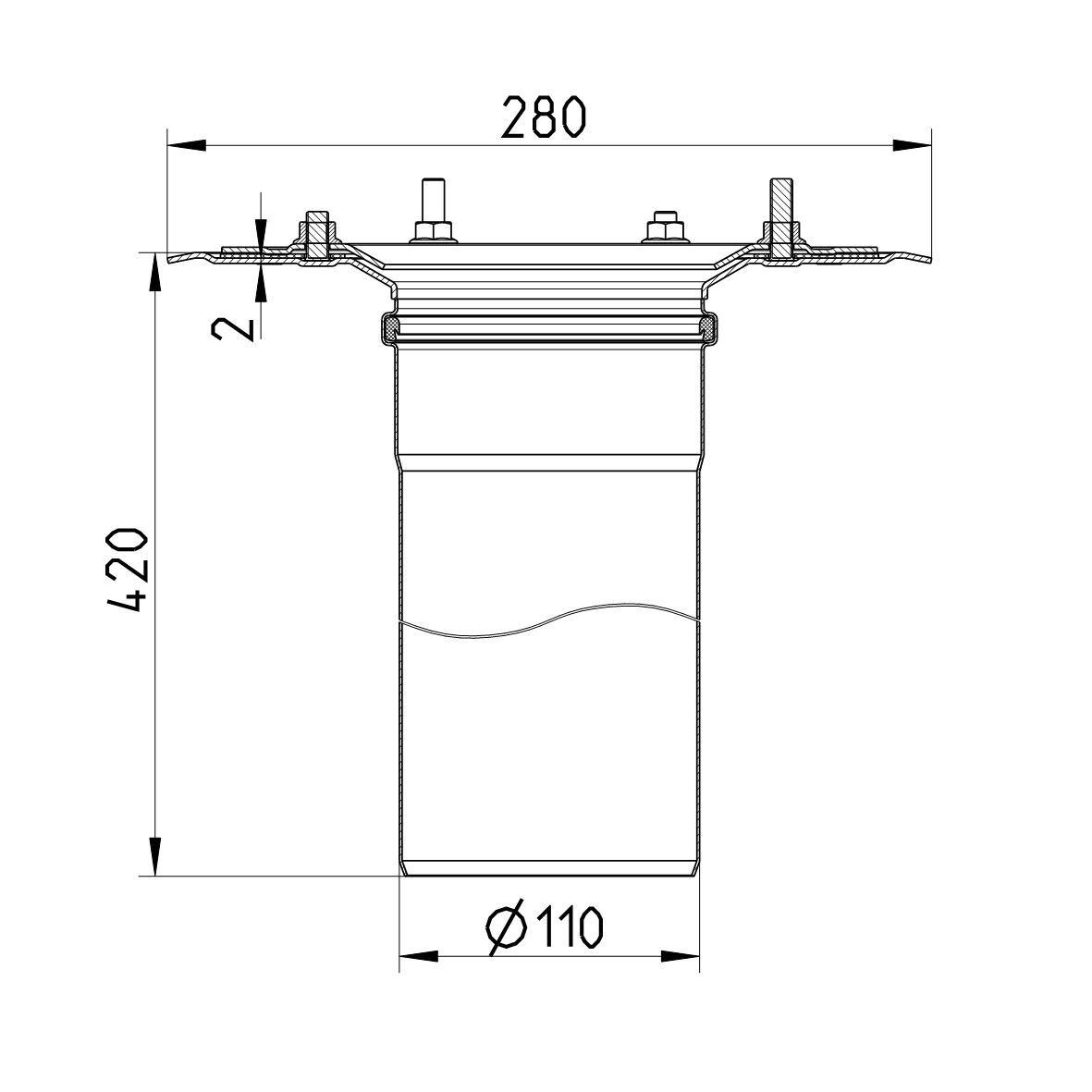

LOWER PART FOR ROOF DRAIN
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 420 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| Weight (kg) | 2,94 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
