LOWER PART FOR ROOF DRAIN - (408.004.160)
×
![]()
Part Of the Series: Lower part-single ply membrane
Type no.: 408.004.160
EAN no.: 5705499141573

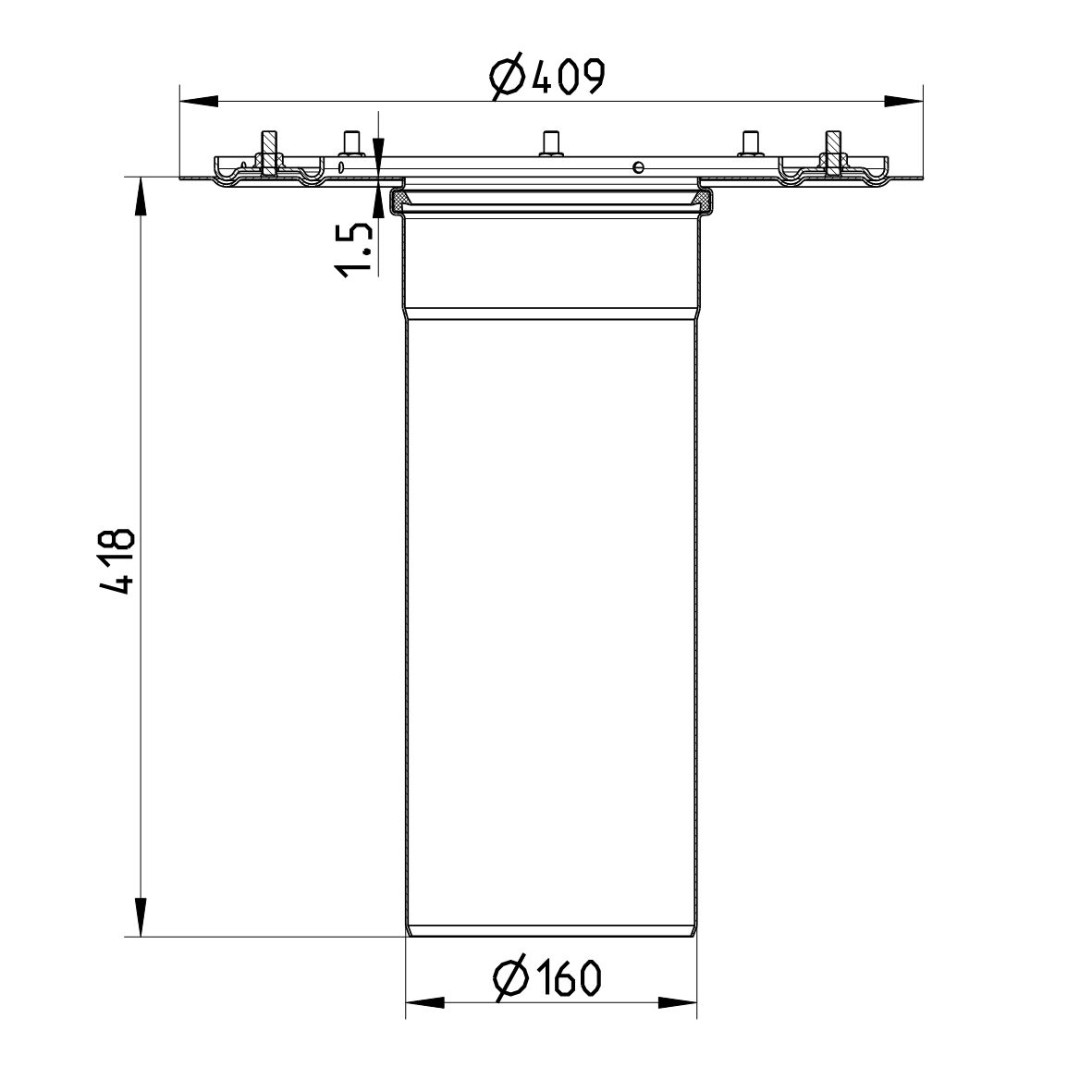

LOWER PART FOR ROOF DRAIN
- Roof: Single ply membrane
- Flange: Ø409mm
- Outlet: Ø160mm, vertical
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Roof | Single ply membrane |
| Weight (kg) | 5,17 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
