CHANNEL 150x1000 END OUTLET - (670CH010-00BA)
Part Of the Series: Channel-No membrane
Type no.: 670CH010-00BA
EAN no.: 5705499125726
RSK no.: 7121760
NRF no.: 3397062
LVI no.: 3304934

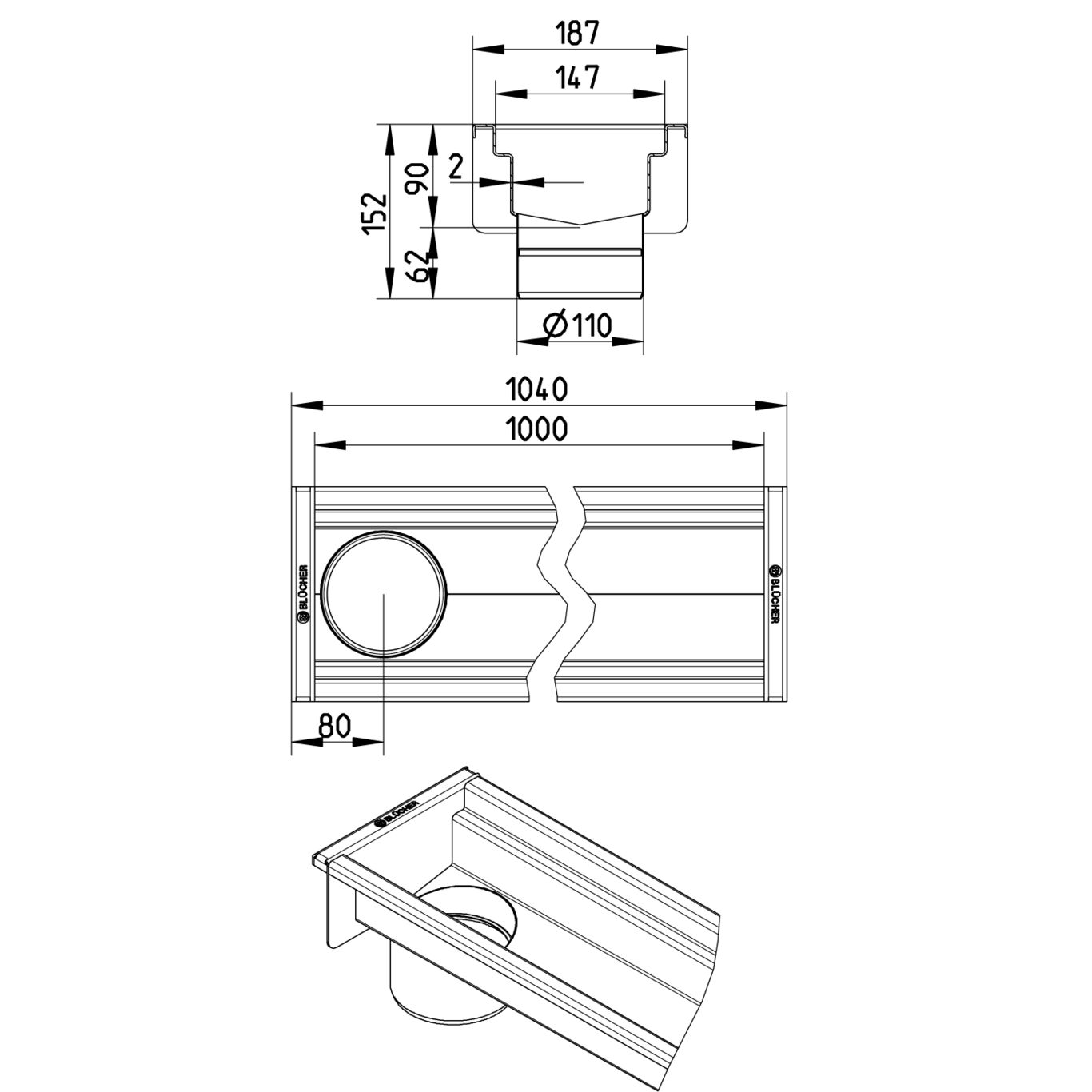

Size: 150x1000
CHANNEL 150x1000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 152 |
Outlet Box | No |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (mm) | 150x1000 |
Weight (kg) | 6,23 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe US - NSF NO - PS3079-21 HACCP Food Safety Programme - Australasia US - NSF/ANSI/3-A 14159-1-Meat and Poultry DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RU - 0212321 Drains-21 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
