CHANNEL 150x1200 END OUTLET - (670CH012-00BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670CH012-00BA
EAN no.: 5705499135039
RSK no.: 7121762
NRF no.: 3397064
LVI no.: 3304936

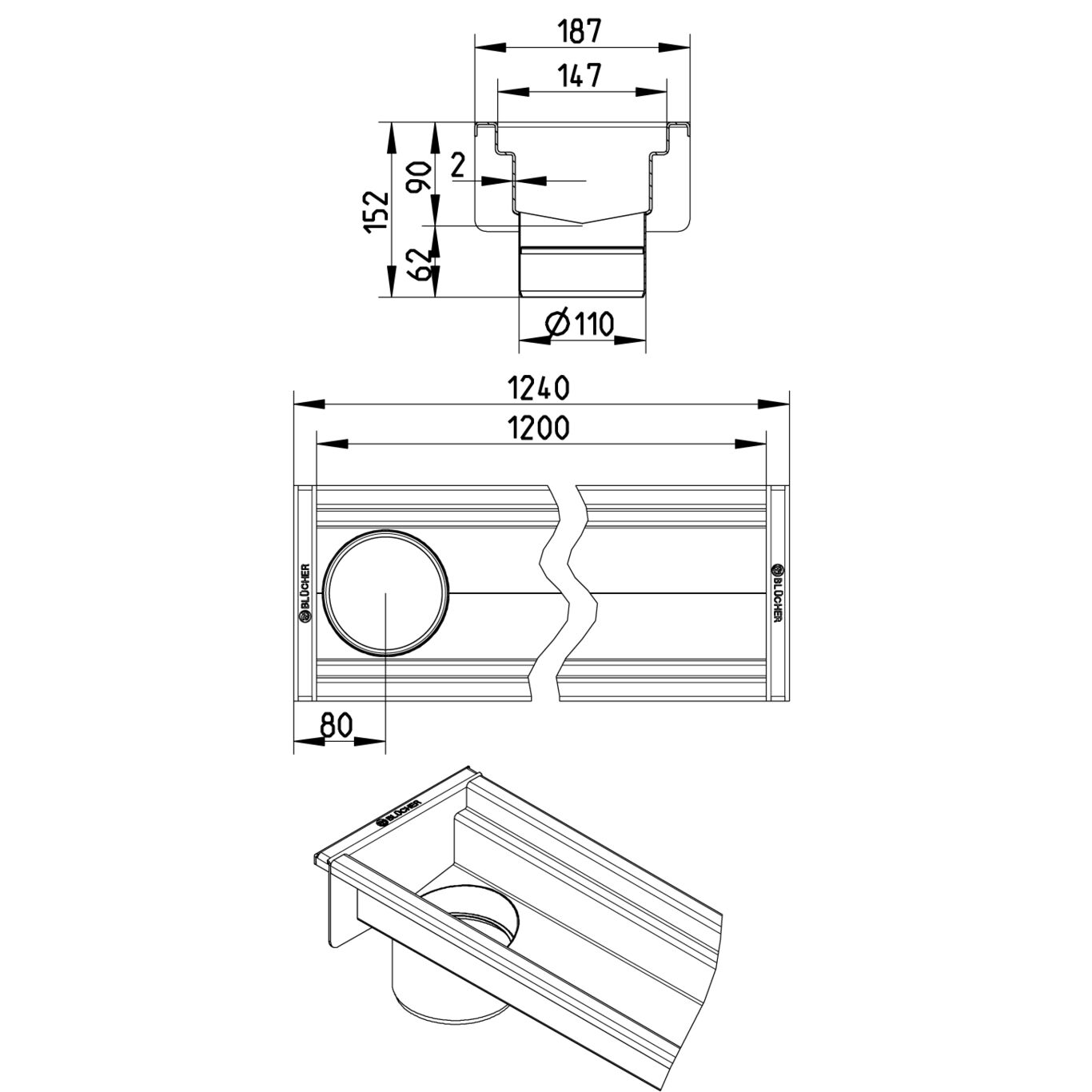

Size: 150x1200

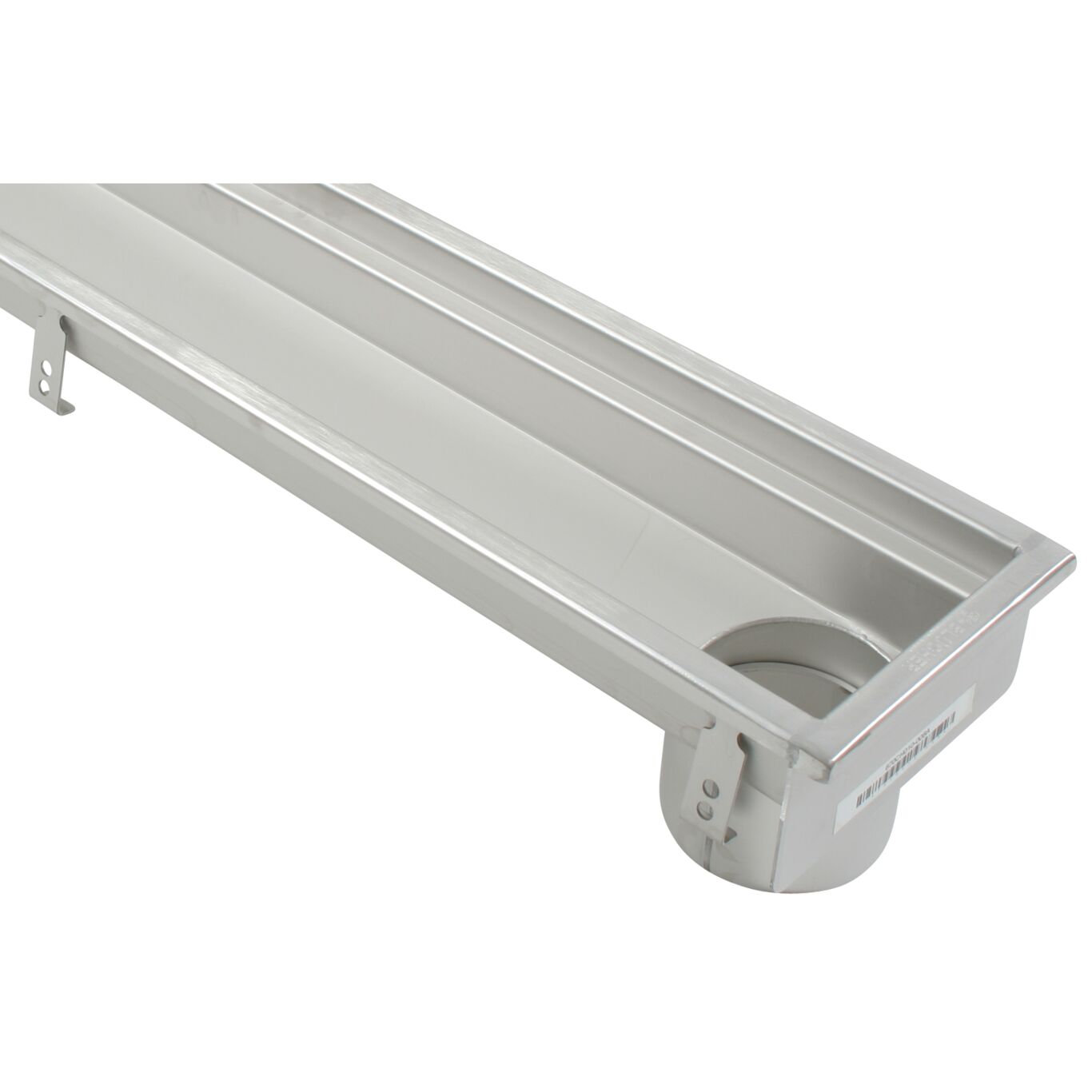

CHANNEL 150x1200 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x1200 |
| Weight (kg) | 7,21 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
