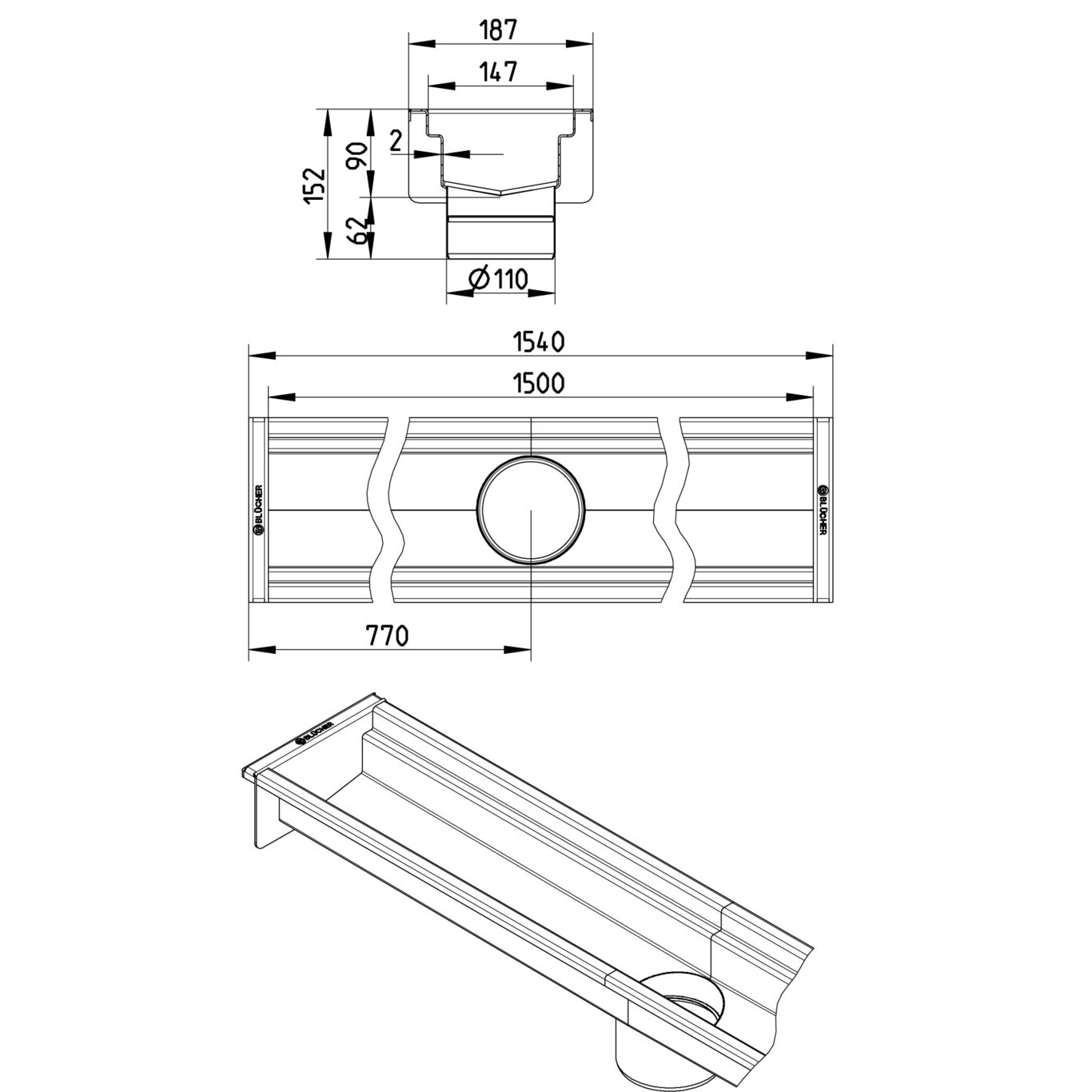

CHANNEL 150x1500 CENTER OUTLET - (670CH015-08BA)
Part Of the Series: Channel-No membrane
Type no.: 670CH015-08BA
EAN no.: 5705499129434
NRF no.: 3397066
Size: 150x1500
CHANNEL 150x1500 CENTER OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 152 |
Outlet Box | No |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 150x1500 |
Weight (kg) | 9,45 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia NO - PS3079-21 US - NSF HACCP Food Safety Programme - Europe RU - 0212321 Drains-21 ABS - LD1716353-PDA PL - Hygienic Certificate - All Products US - NSF/ANSI/3-A 14159-1-Meat and Poultry DNV - TAP0000023-rev4, Sanitary discharge pipes Lloyds Register LR22419510TA
