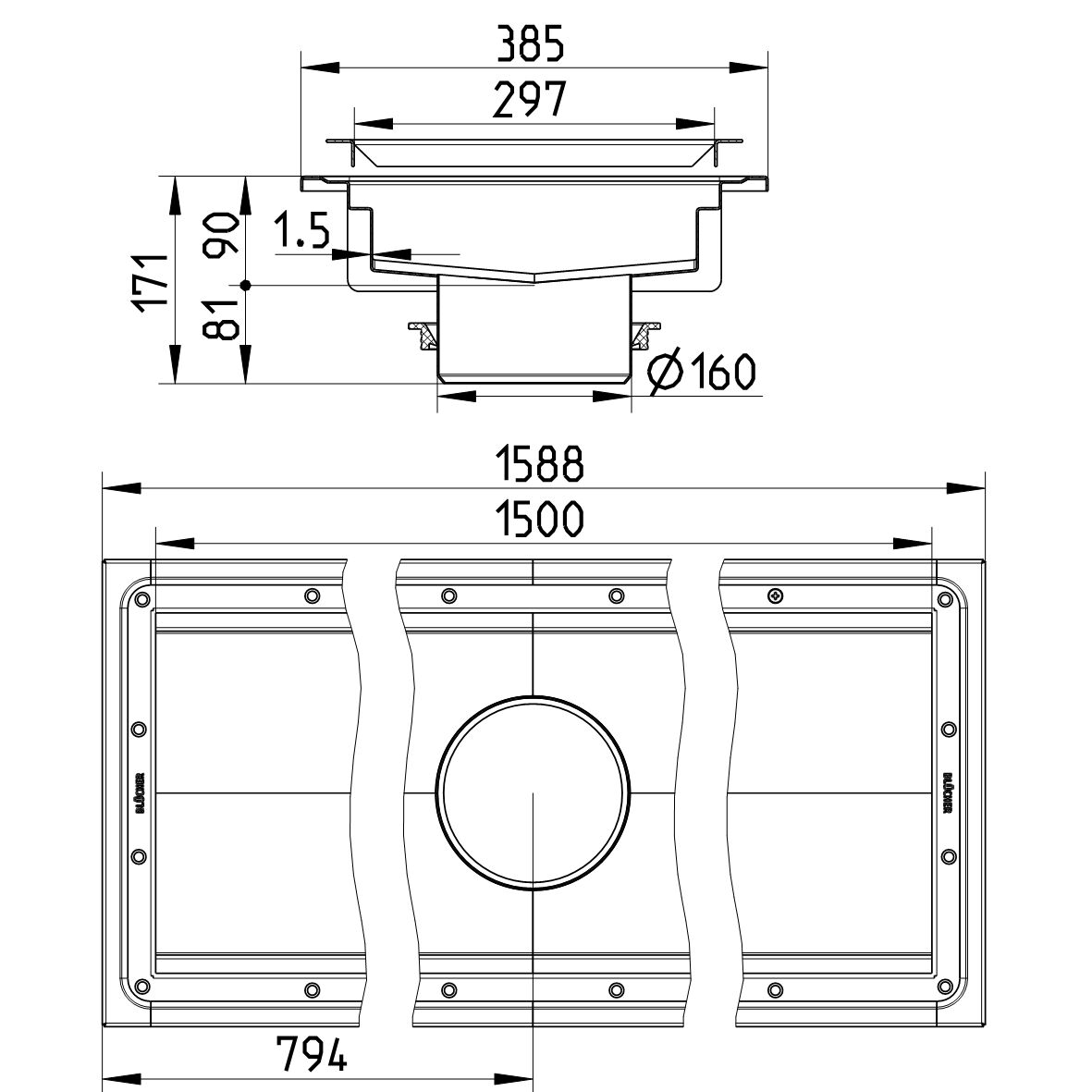

CHANNEL 300x1500 CENTER OUTLET - (672EK015-08BA)
×
Part Of the Series: Channel-Vinyl
Type no.: 672EK015-08BA
EAN no.: 5705499124880
Size: 300x1500
CHANNEL 300x1500 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 170 |
Outlet Box | No |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 300x1500 |
Weight (kg) | 13,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
