KITCHEN CHANNEL 200x200 - (668DK002-00)
×
Part Of the Series: Kitchen channel-Liquid membrane-max300
Type no.: 668DK002-00
EAN no.: 5705499134698
RSK no.: 7122969
LVI no.: 3304156
Size: 200x200

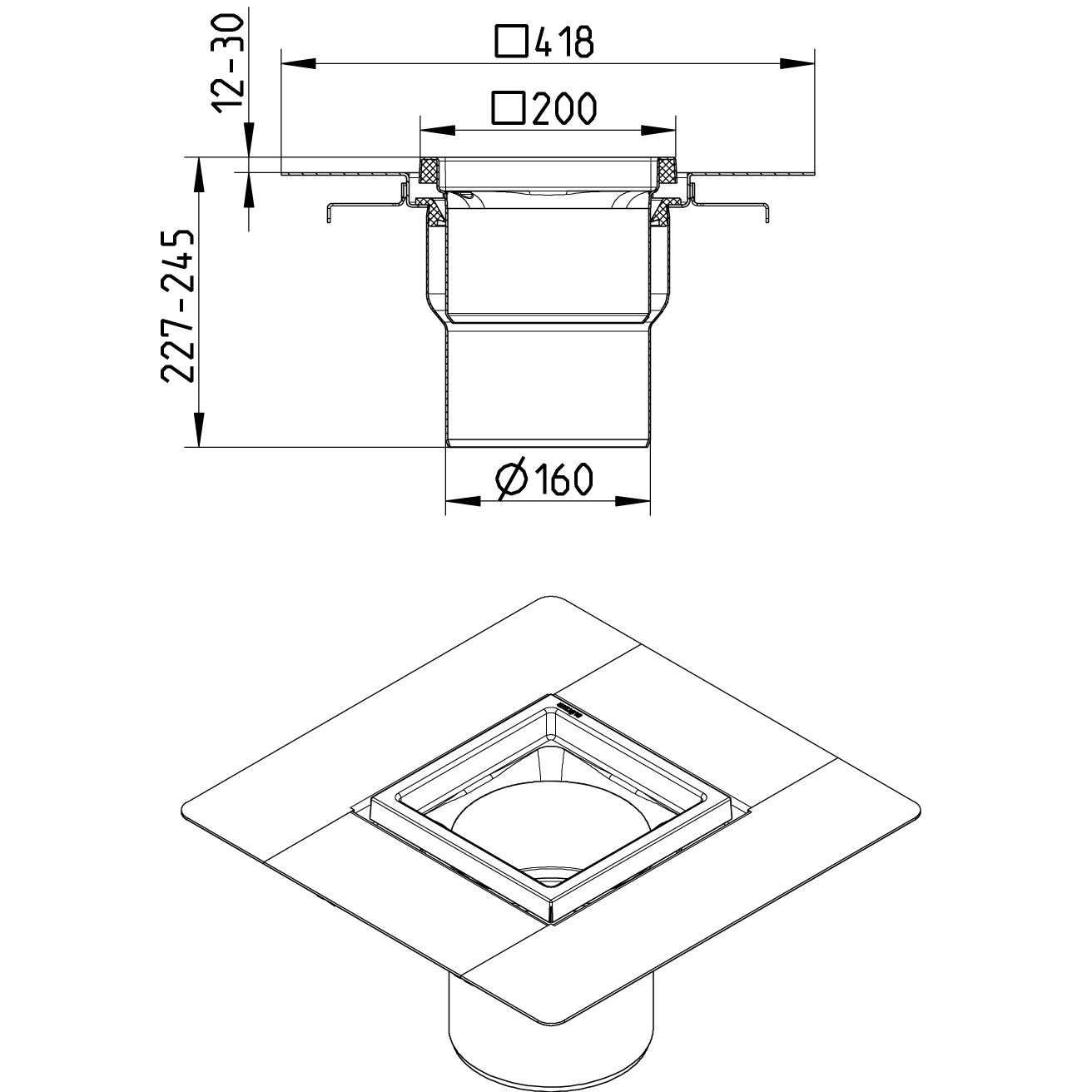

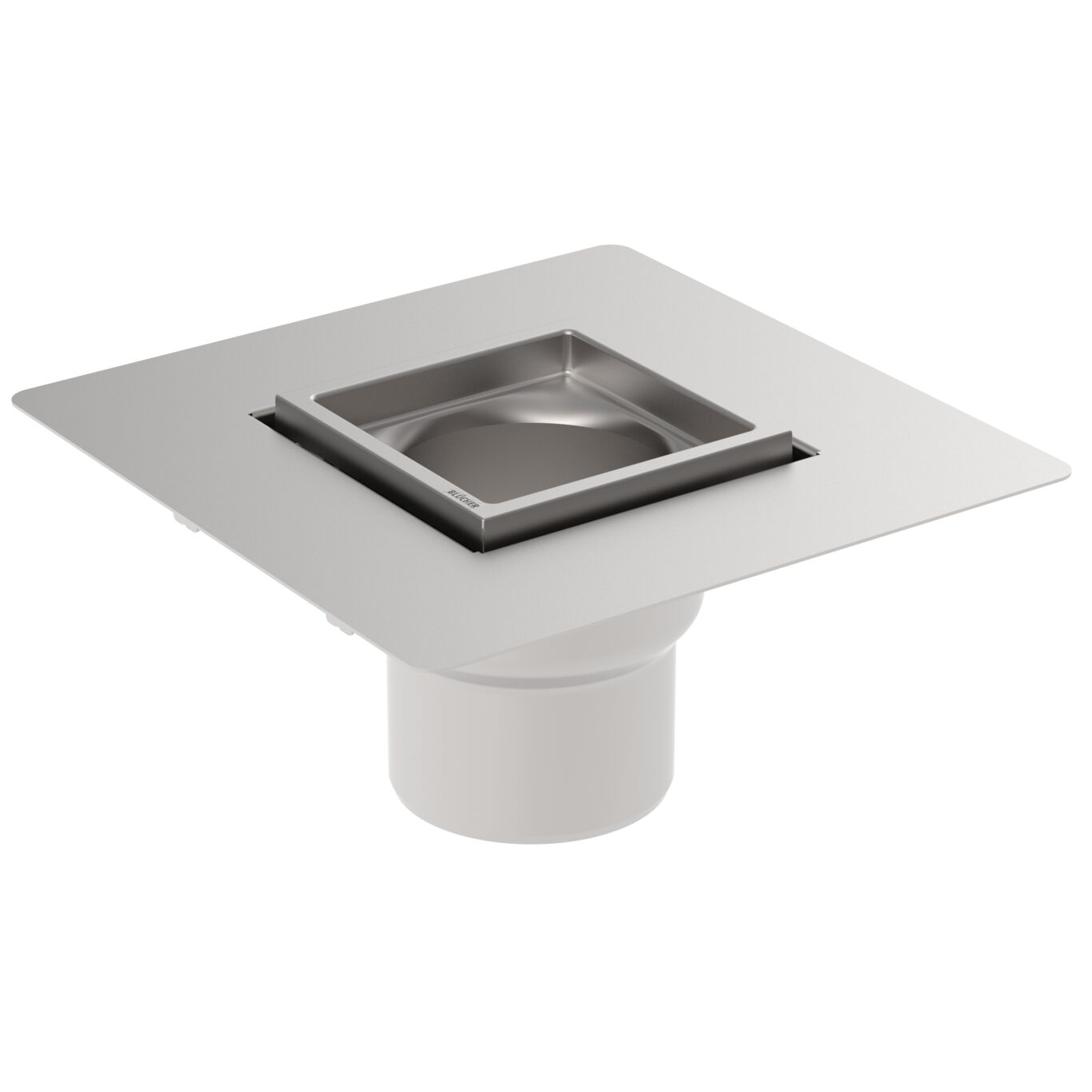

KITCHEN CHANNEL 200x200
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 245 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 227 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 200x200 |
Weight (kg) | 5,36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
