KITCHEN CHANNEL 600x900 - (664HK009-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane-max300
Type no.: 664HK009-11
EAN no.: 5705499135114
RSK no.: 7121804
LVI no.: 3304925

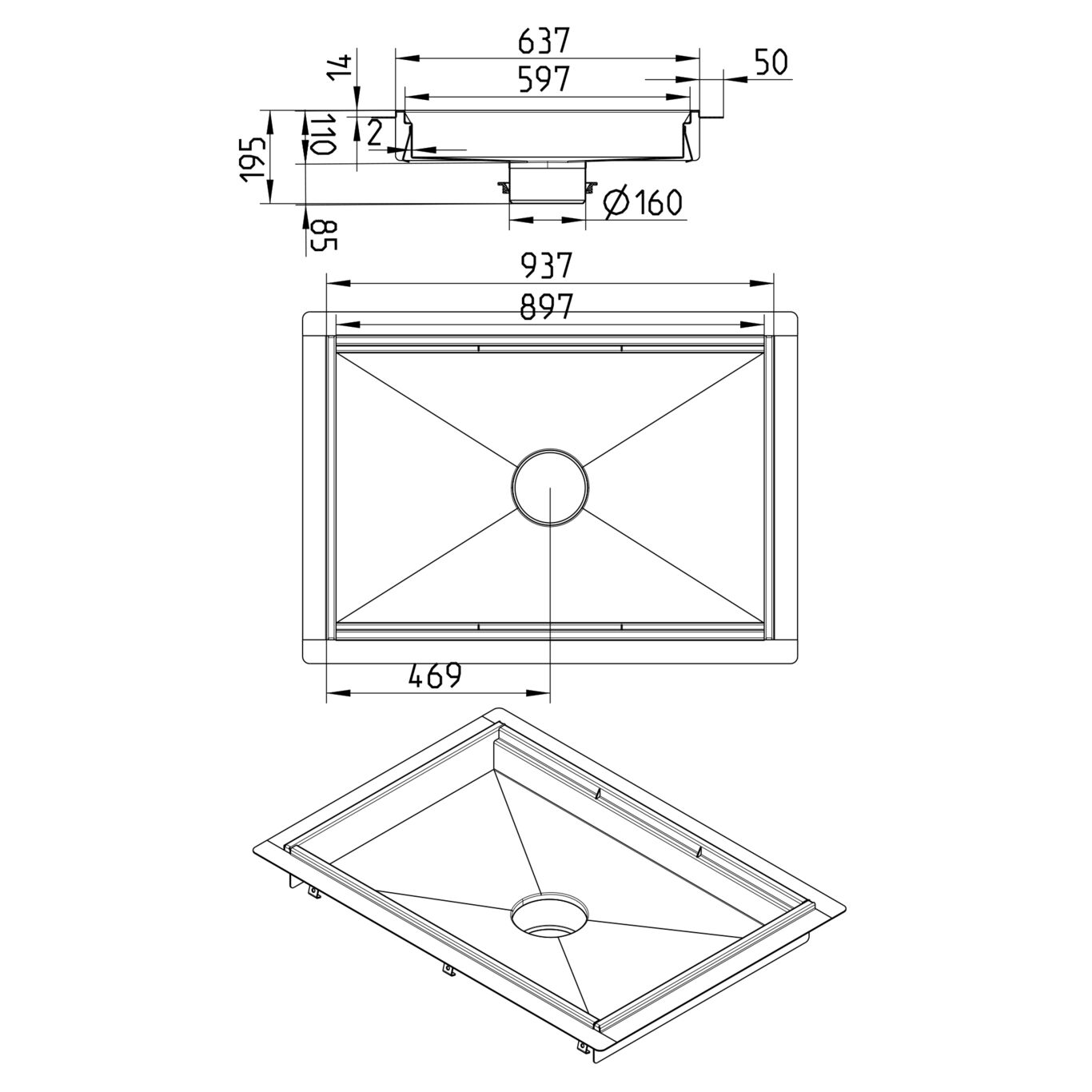

Size: 600x900

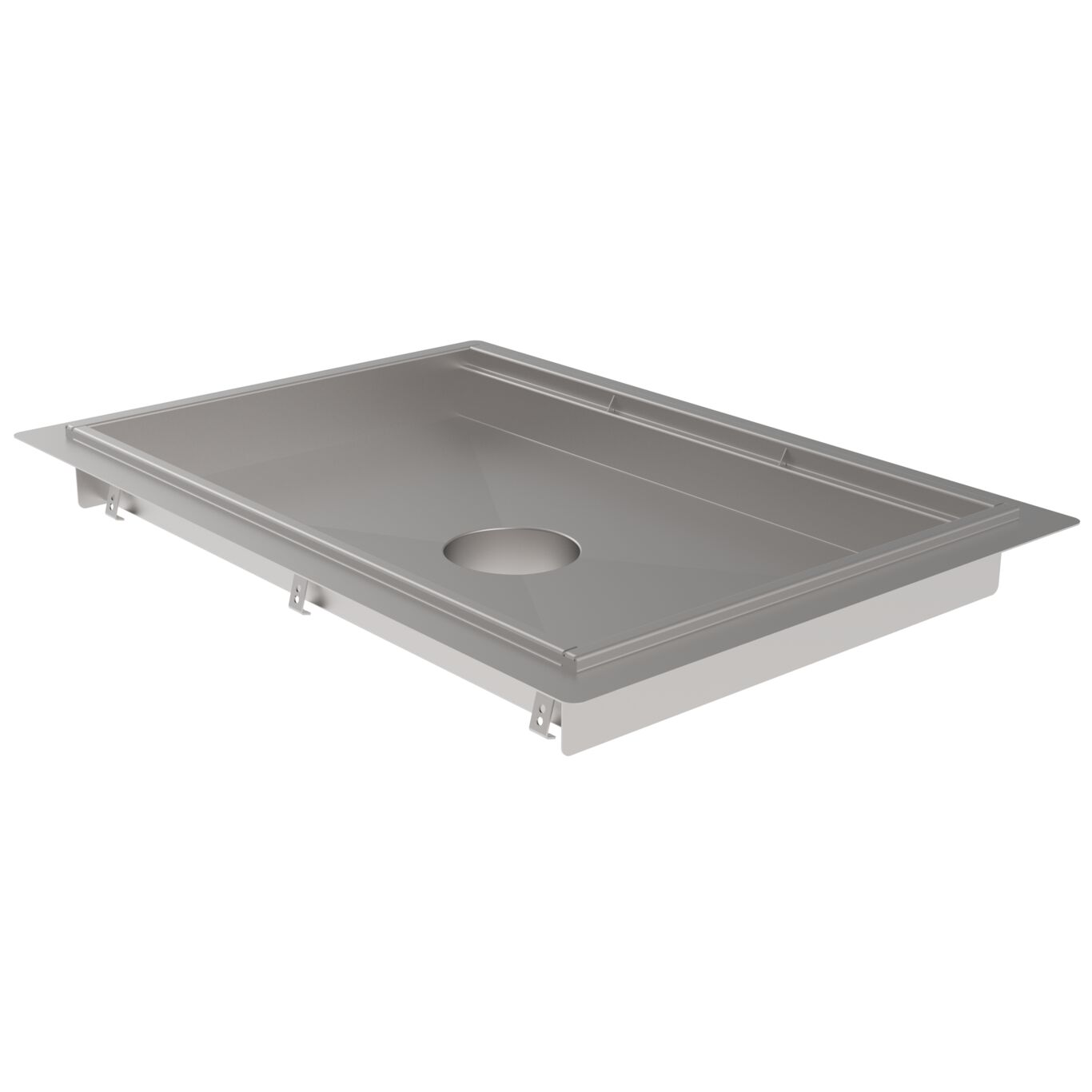

KITCHEN CHANNEL 600x900
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 195 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 600x900 |
| Weight (kg) | 17,84 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
