KITCHEN CHANNEL 400x400 - (668FK004-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668FK004-11
EAN no.: 5705499135176
RSK no.: 7121817
LVI no.: 3304929
Size: 400x400

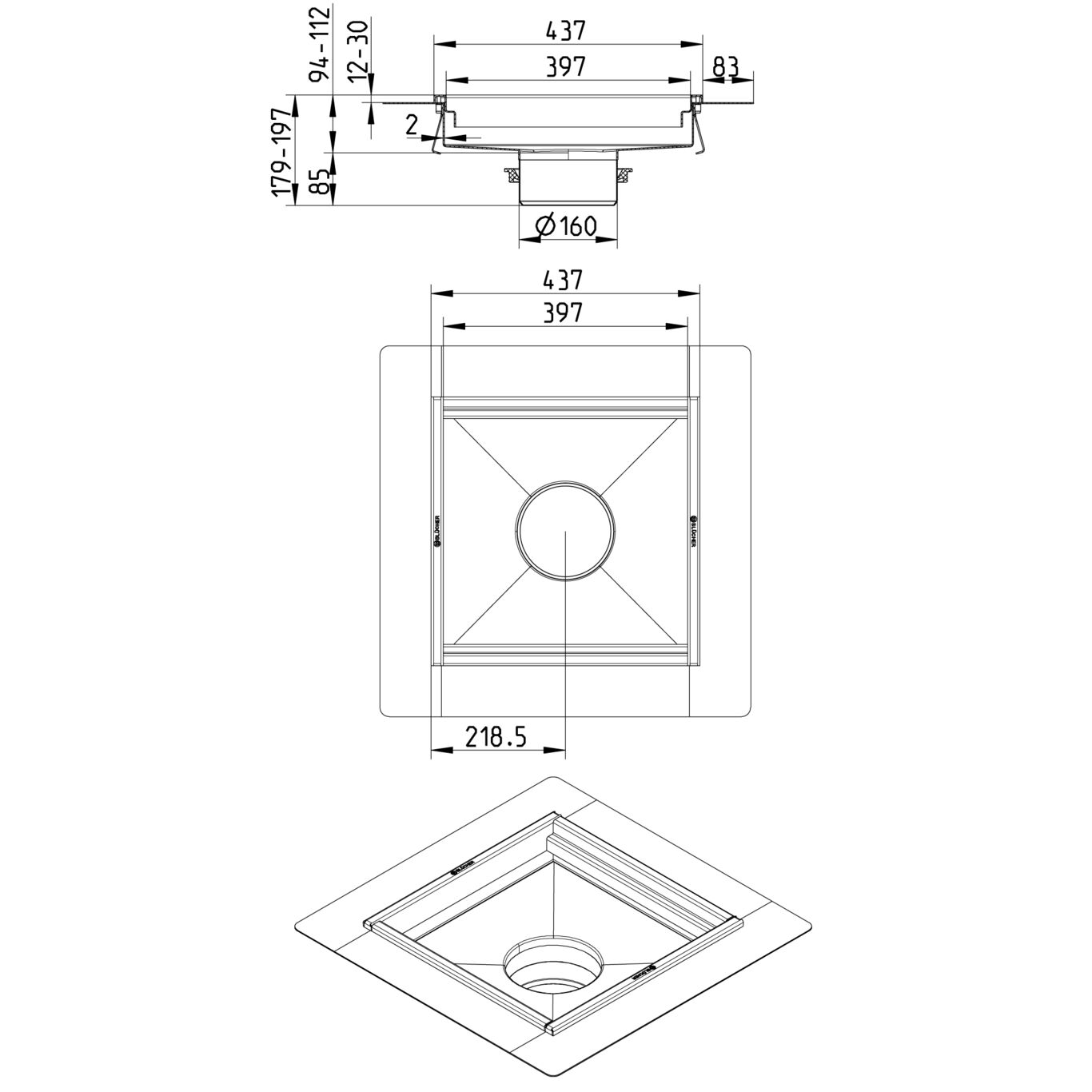

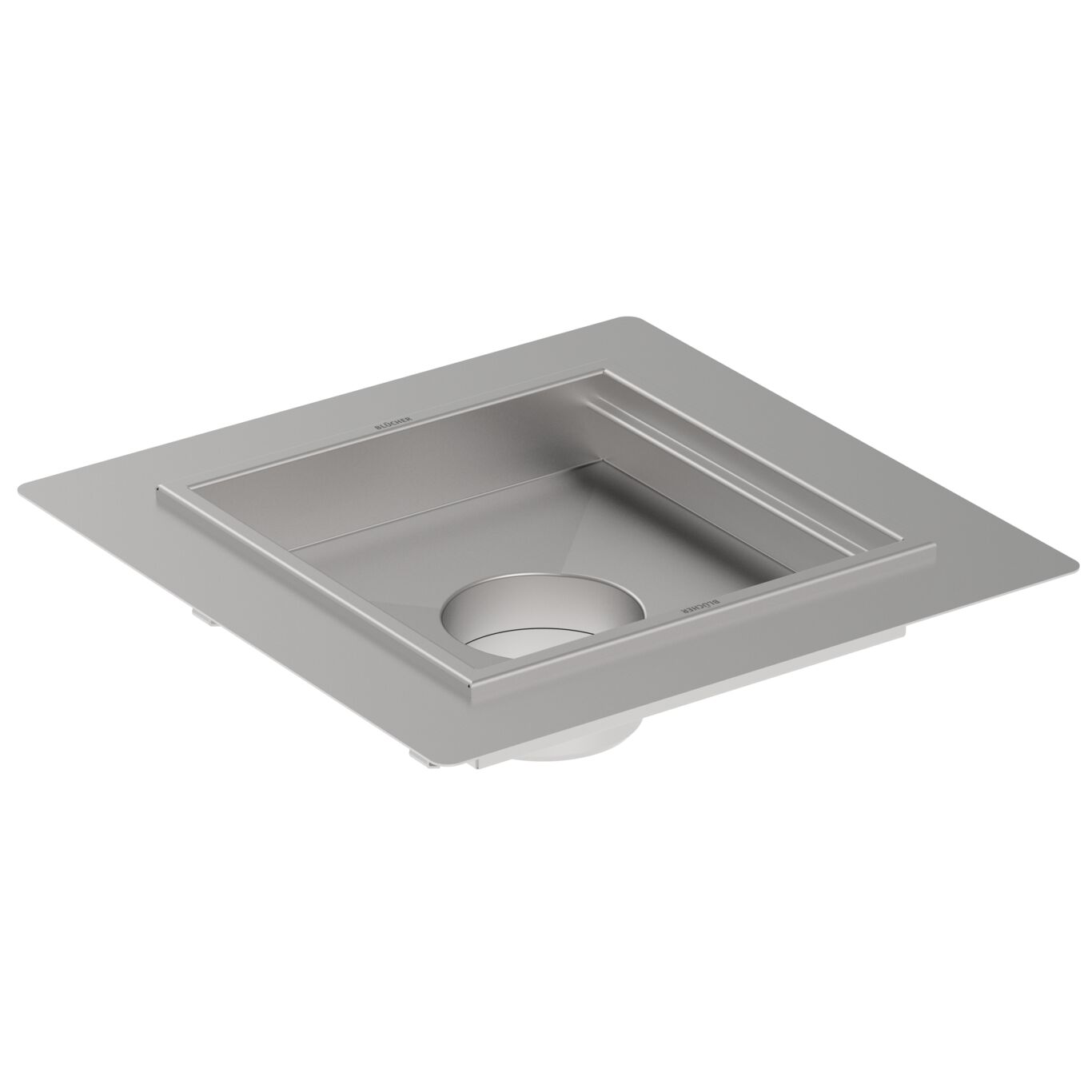

KITCHEN CHANNEL 400x400
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 197 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 179 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 400x400 |
| Weight (kg) | 10,15 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
