KITCHEN CHANNEL 500x800 - (668GK008-11)
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668GK008-11
EAN no.: 5705499135190
RSK no.: 7122973
LVI no.: 3304165
Size: 500x800
KITCHEN CHANNEL 500x800
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

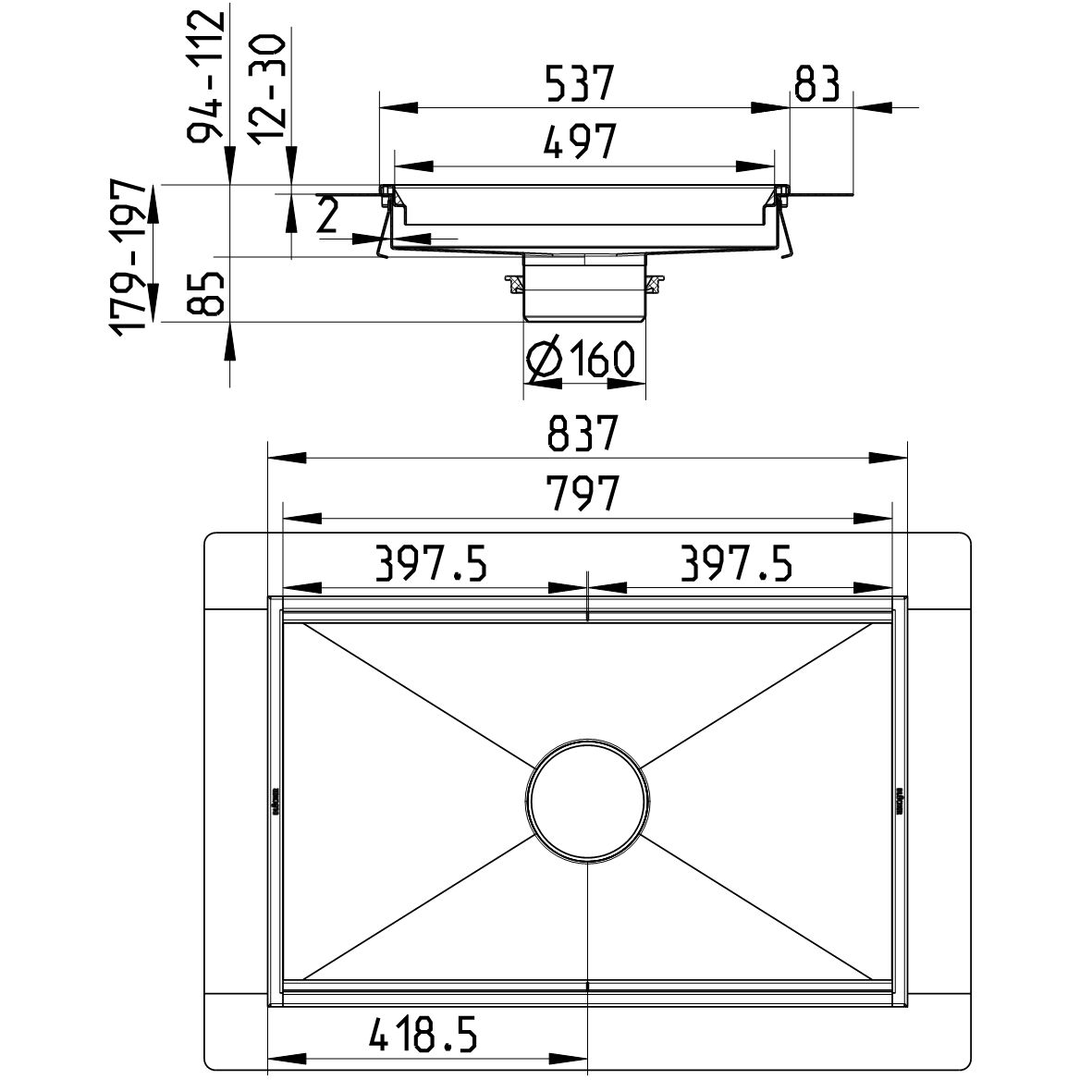

Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 197 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 179 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Shape | Rectangular |
Size (mm) | 500x800 |
Weight (kg) | 18,04 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
