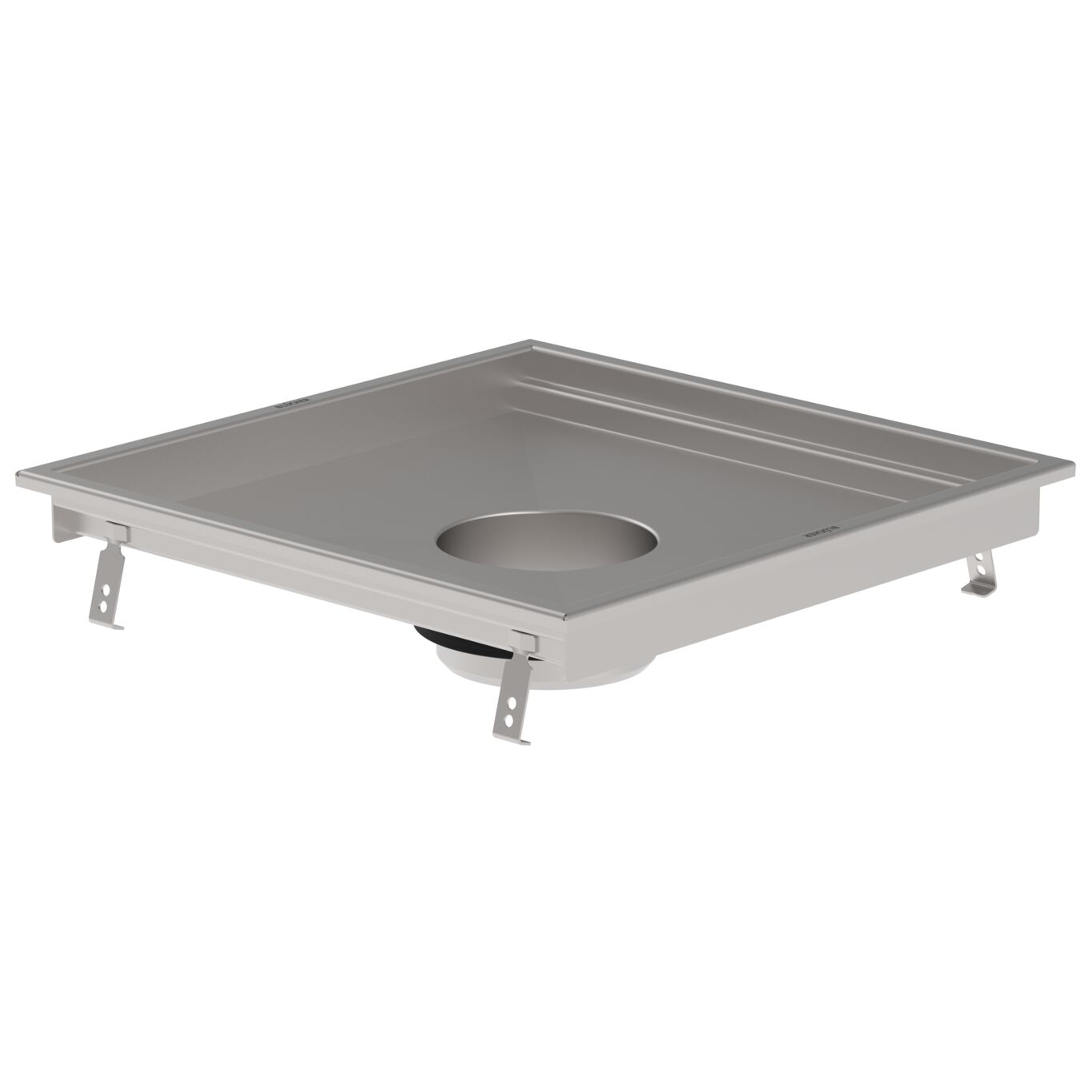

KITCHEN CHANNEL 500x500 - (660GK005-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660GK005-06
EAN no.: 5705499126341
Size: 500x500
KITCHEN CHANNEL 500x500
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 145 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 500x500 |
| Weight (kg) | 6,87 |
-
