KITCHEN CHANNEL 300X500 - (662EK005-11)

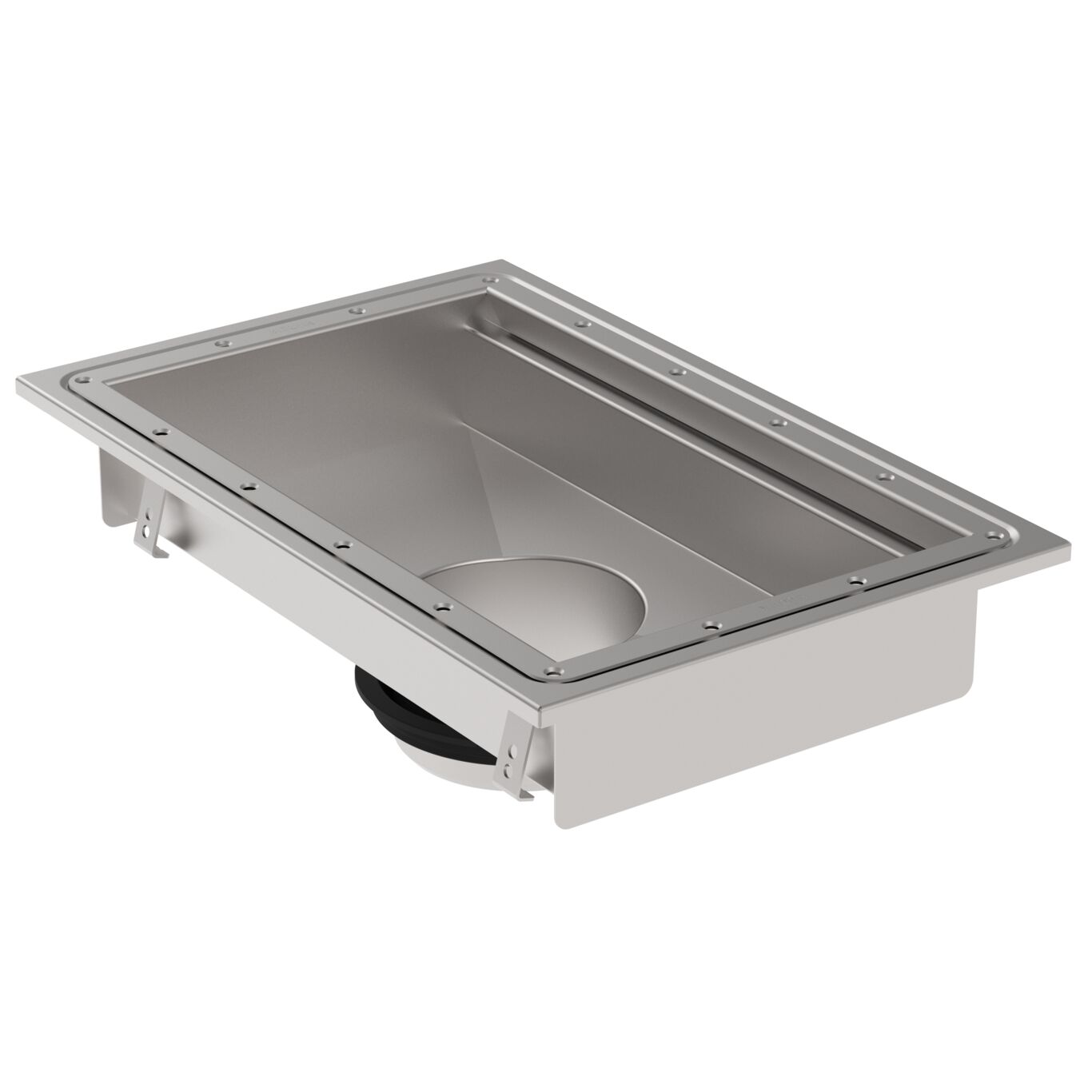

Product Image - Kitchen channel-Vinyl

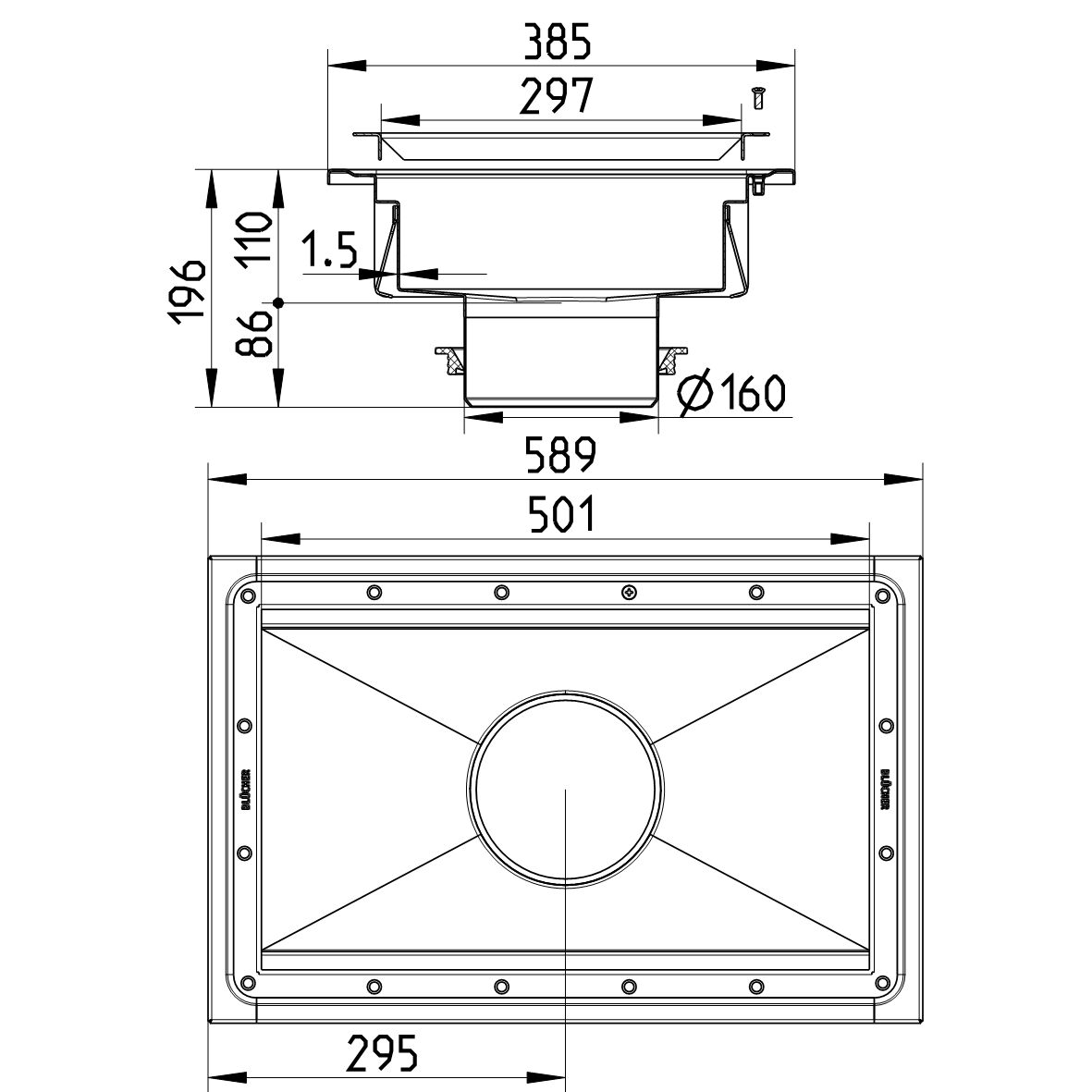

Line Drawing - Kitchen channel-Vinyl
×

Part Of the Series: Kitchen channel-Vinyl

Type no.: 662EK005-11

EAN no.: 5705499134759

RSK no.: 7122962

Size: 300x500

KITCHEN CHANNEL 300X500
-Floor: vinyl
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

Product Specification
Floor Vinyl
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 195
Outlet Diameter (mm) 160
Outlet Direction Vertical
Shape Rectangular
Size (mm) 300x500
Weight (kg) 6,26
