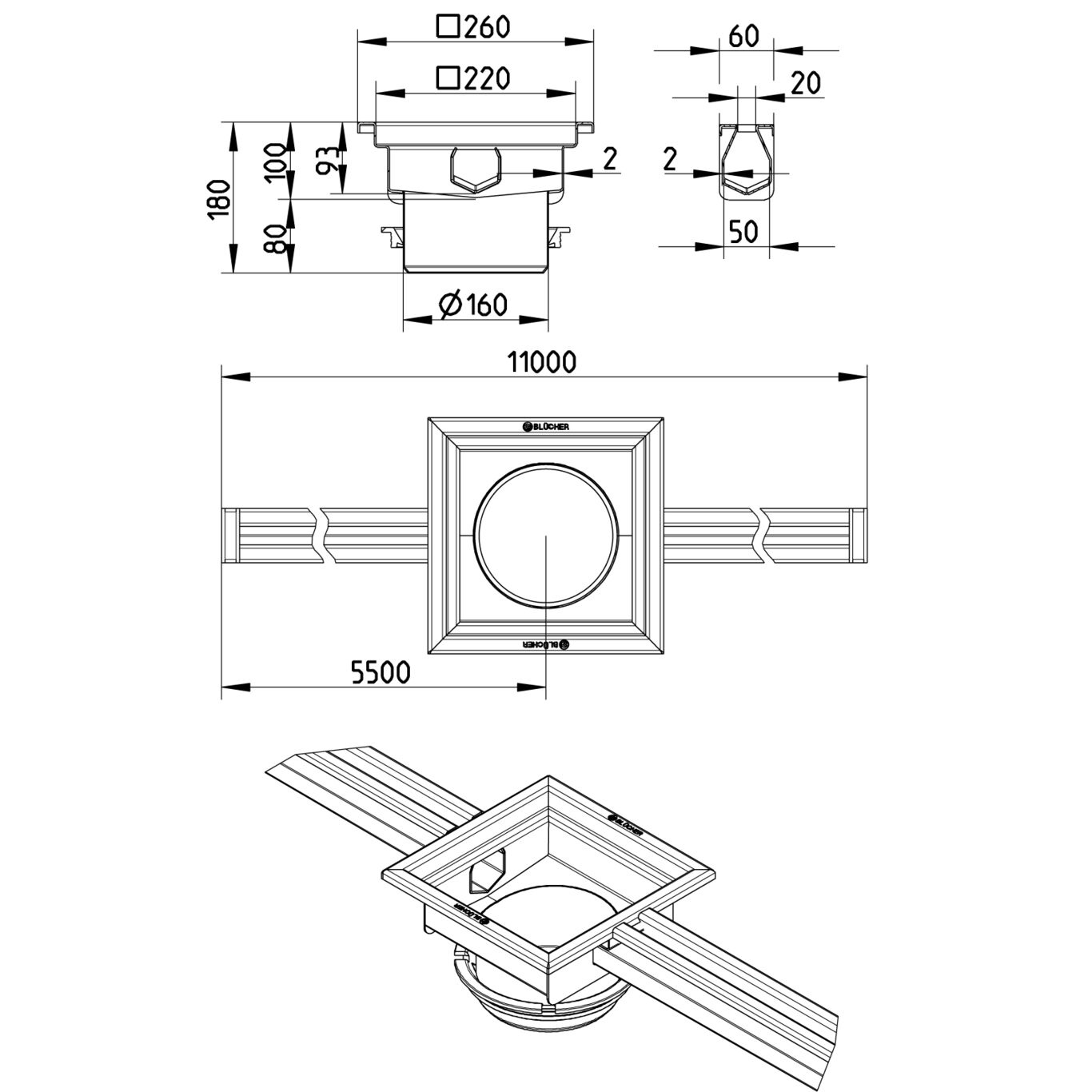

SLOT CHANNEL 20x11000 CENTER OUTLET - (673AK110-55BA)
×
Part Of the Series: Slot channel-No membrane
Type no.: 673AK110-55BA
EAN no.: 5705499125931
Size: 20x11000
SLOT CHANNEL 20x11000 CENTER OUTLET
-With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 180 |
Outlet Box | Yes |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (mm) | 20x11000 |
Weight (kg) | 46,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
