ADJUSTABLE SHOWER DRAIN CIRCLE - (250.300.050 S)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 250.300.050 S
EAN no.: 5705499124323

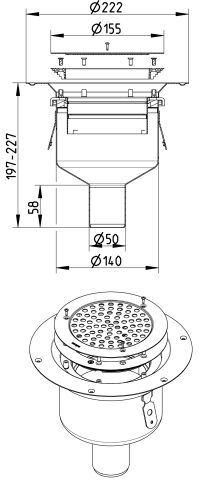

Size: Ø155

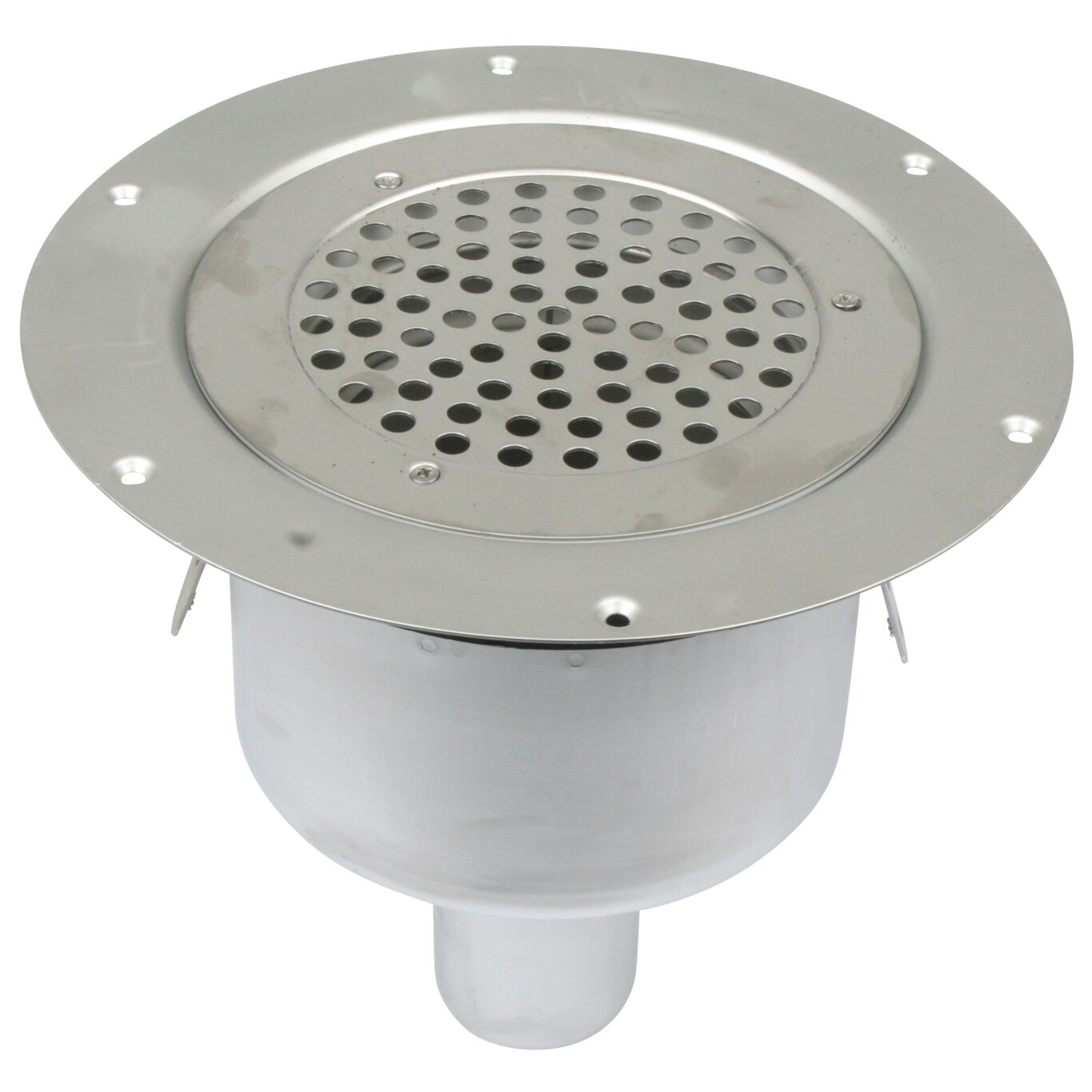

ADJUSTABLE SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 227 |
| Minimum Height (mm) | 197 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 1,33 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
