ADJUSTABLE SHOWER DRAIN CIRCLE - (250.300.075)
Part Of the Series: Drain-Vinyl-155
Type no.: 250.300.075
EAN no.: 5705499105100
VVS no.: 153612113
NRF no.: 3394583
Size: Ø155

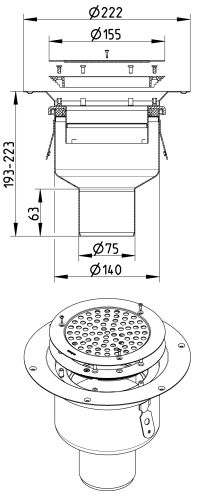

ADJUSTABLE SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 223 |
Minimum Height (mm) | 193 |
Number of Inlets | 0 |
Number of Screw Holes | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Shape | Round |
Size (mm) | Ø155 |
Weight (kg) | 1,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
