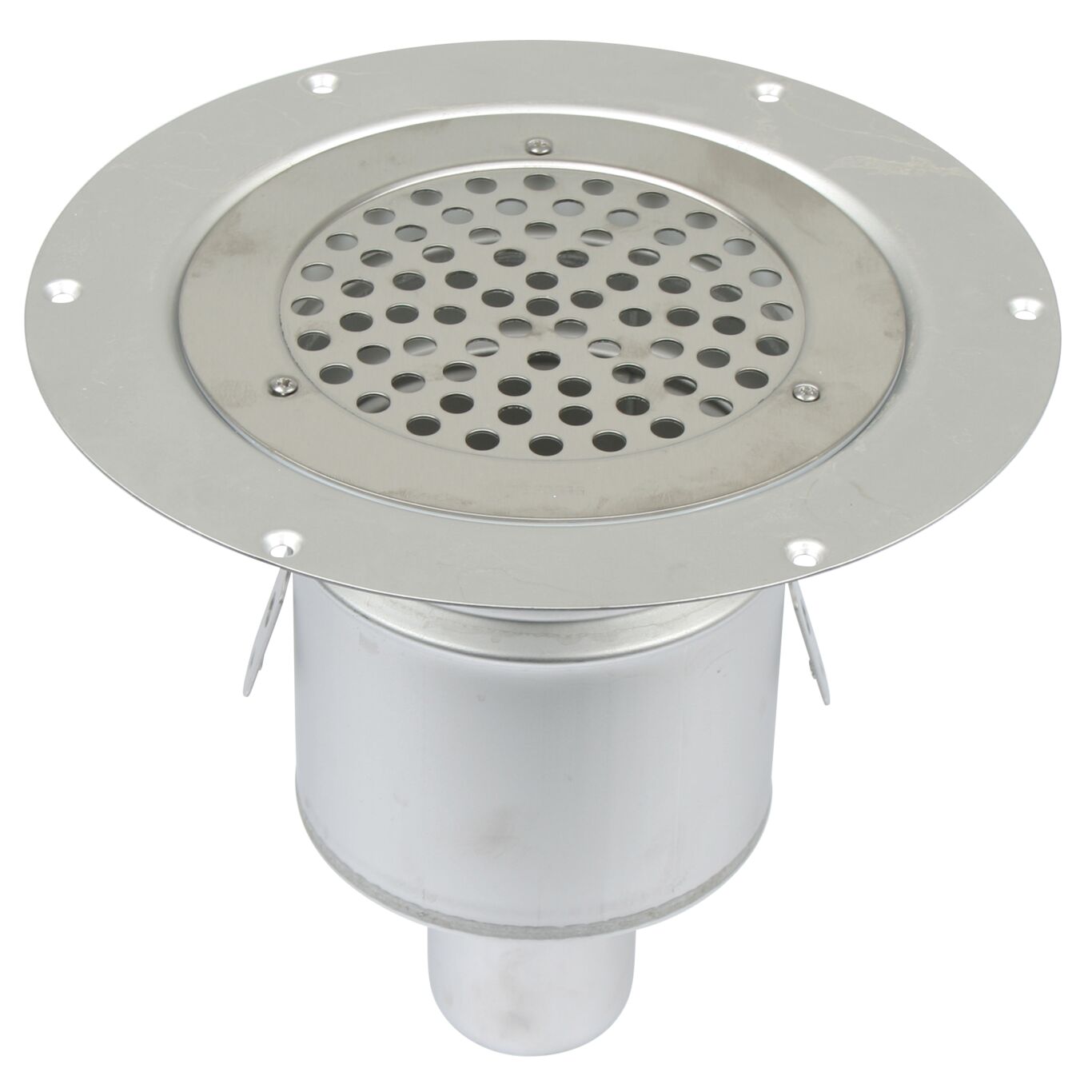

SHOWER DRAIN CIRCLE - (260.300.050)
Part Of the Series: Drain-Vinyl-155
Type no.: 260.300.050
EAN no.: 5705499123548
Size: Ø155
SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 203 |
Number of Inlets | 0 |
Number of Screw Holes | 3 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Shape | Round |
Size (mm) | Ø155 |
Weight (kg) | 0,98 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
