UPPER PART CIRCLE - (250.300.000 S)
×
![]()
Part Of the Series: Upper part-Vinyl-155
Type no.: 250.300.000 S
EAN no.: 5705499107029
VVS no.: 153612720
Size: Ø155

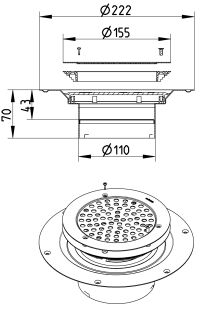

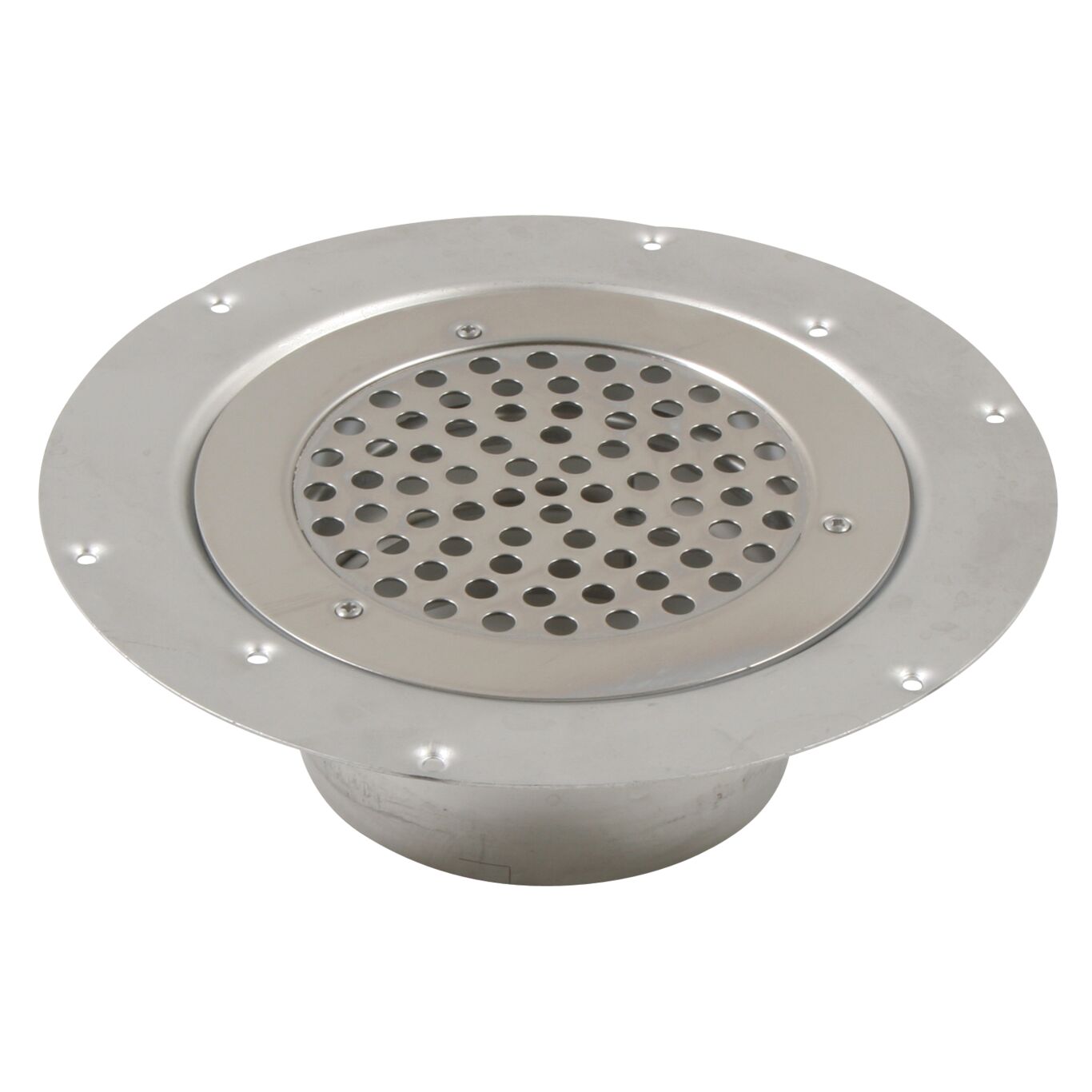

UPPER PART CIRCLE
-With supporting ring for water trap
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 70 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 0,55 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
