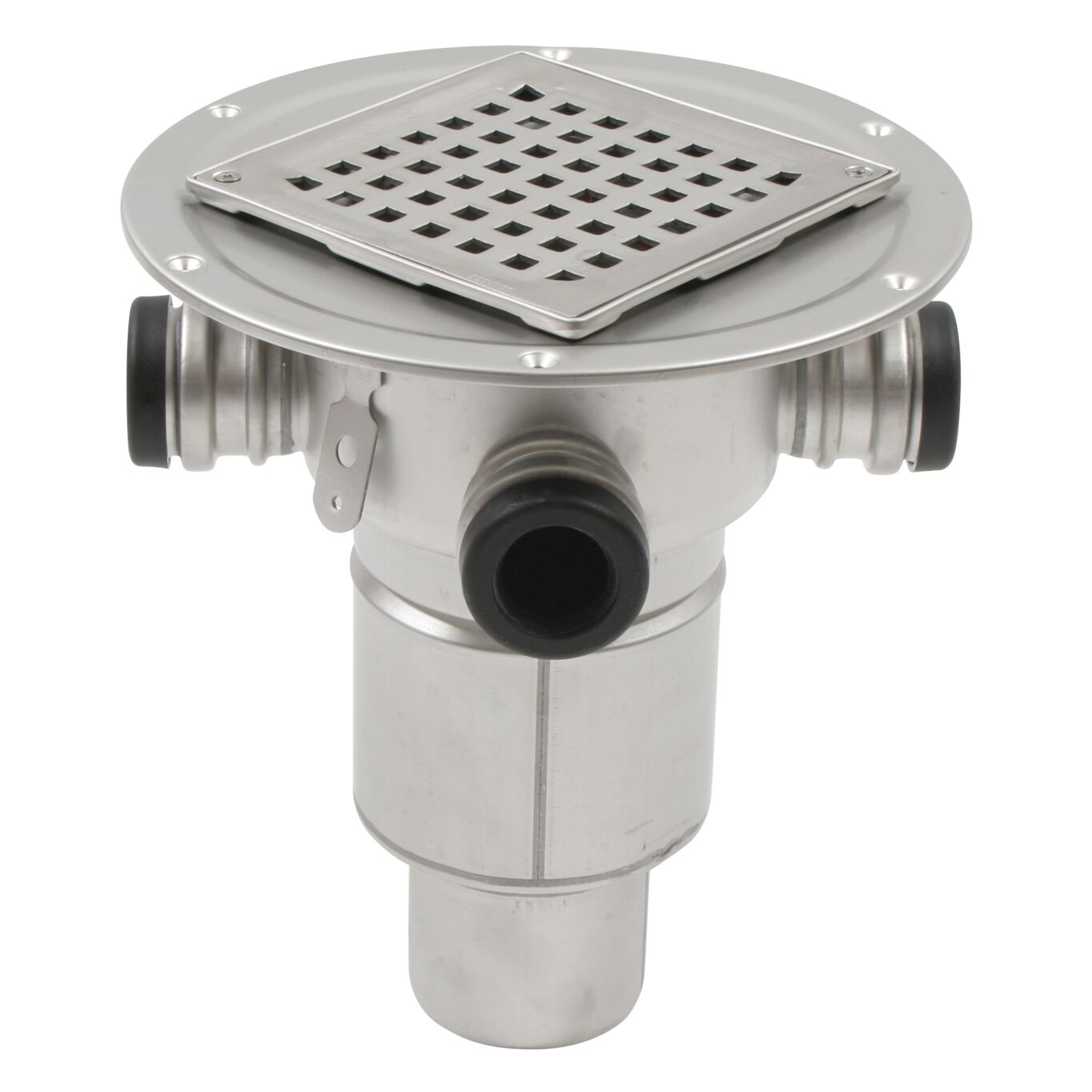

ADJUSTABLE SHOWER DRAIN SQUARE - (351.300.075)
×
![]()
Part Of the Series: Drain-Liquid membrane-145
Type no.: 351.300.075
EAN no.: 5705499105384
VVS no.: 153585313
RSK no.: 7119394
NRF no.: 3394689
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 310 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 2,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
