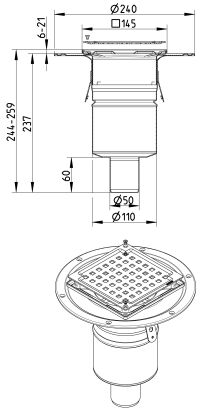

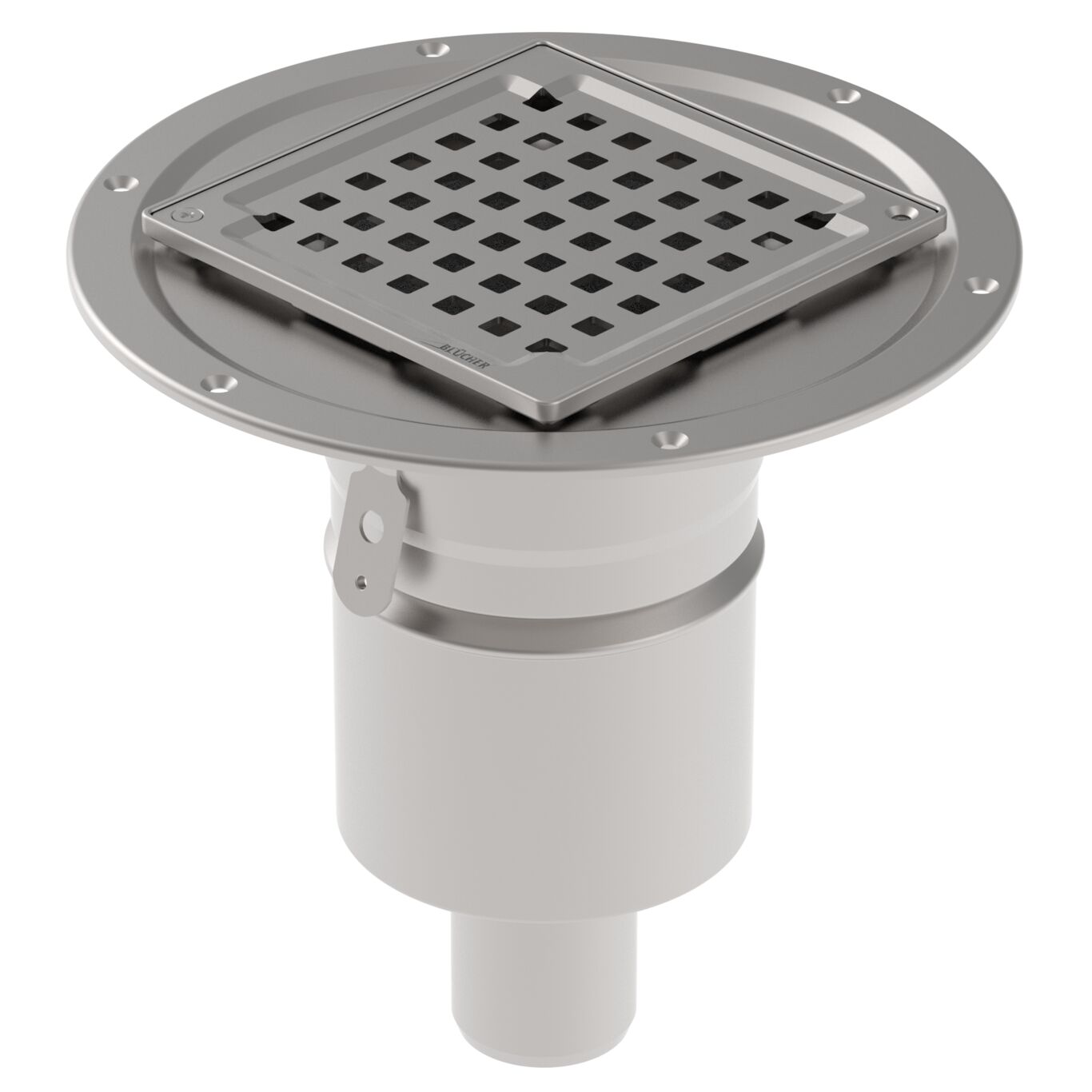

ADJUSTABLE SHOWER DRAIN SQUARE - (360.300.050 S)
Part Of the Series: Drain-Liquid membrane-145
Type no.: 360.300.050 S
EAN no.: 5705499124392
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 259 |
Membrane Type | Liquid Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 145x145 |
Weight (kg) | 1,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
