INDUSTRIAL DRAIN - (760.402.075.01 S)
Part Of the Series: Drain-No membrane-200
Type no.: 760.402.075.01 S
EAN no.: 5705499109375
LVI no.: 3303504

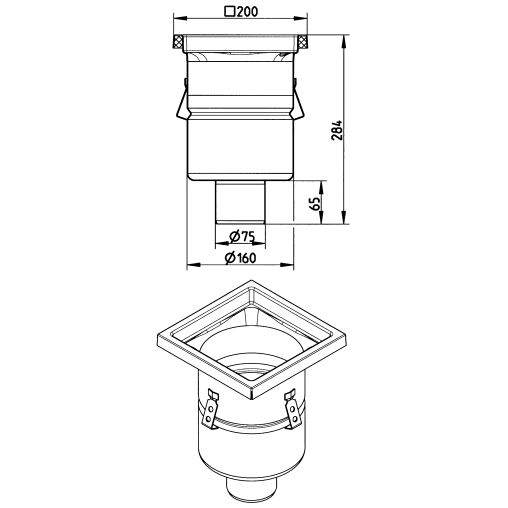

Size: 200x200

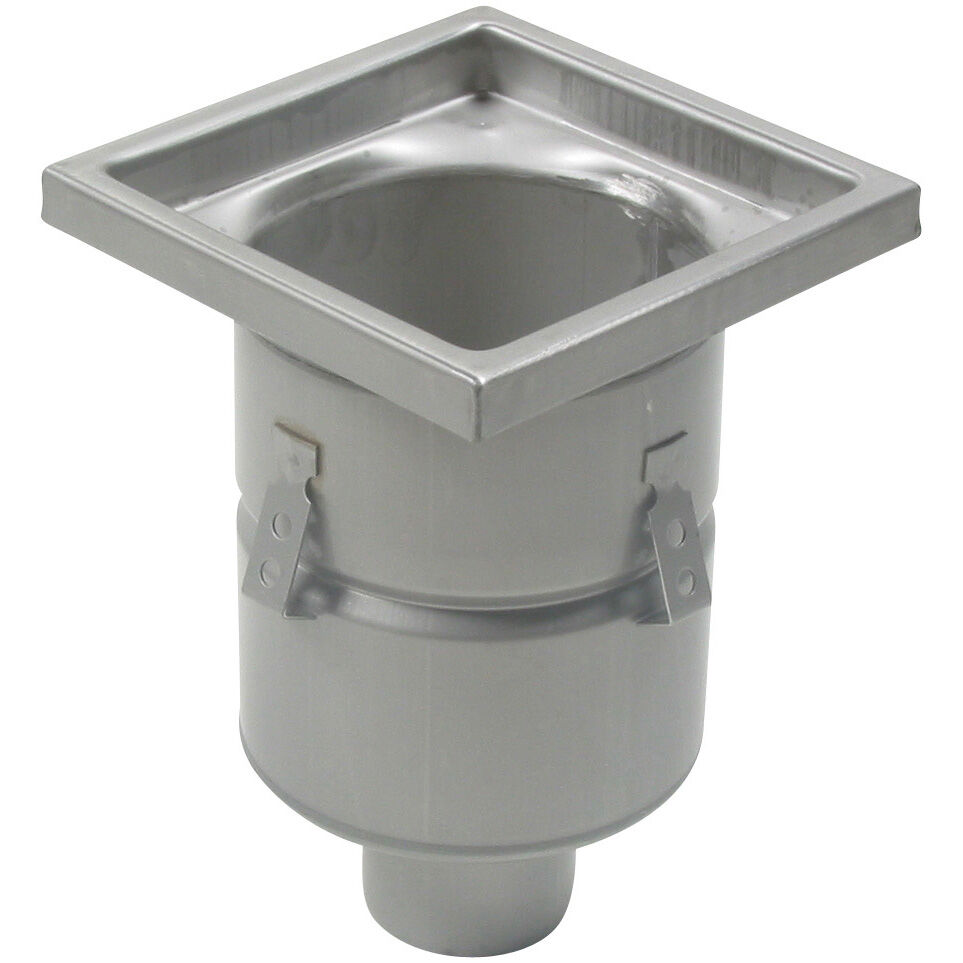

INDUSTRIAL DRAIN
-With screw lock
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Floor | Concrete / Tiled |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 1 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 200x200 |
Weight (kg) | 2,10 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
