INDUSTRIAL DRAIN, LOW - (766.401.075 S)
Part Of the Series: Drain-No membrane-250
Type no.: 766.401.075 S
EAN no.: 5705499129014
Size: 250x250

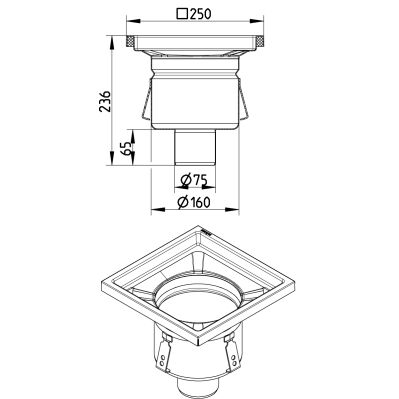

INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 250x250mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Floor | Concrete / Tiled |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 250x250 |
Weight (kg) | 2,34 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
