LOWER PART - (774.003.160 S)
×
![]()
Part Of the Series: Lower part-250
Type no.: 774.003.160 S
EAN no.: 5705499111972
VVS no.: 153008348
LVI no.: 3303796

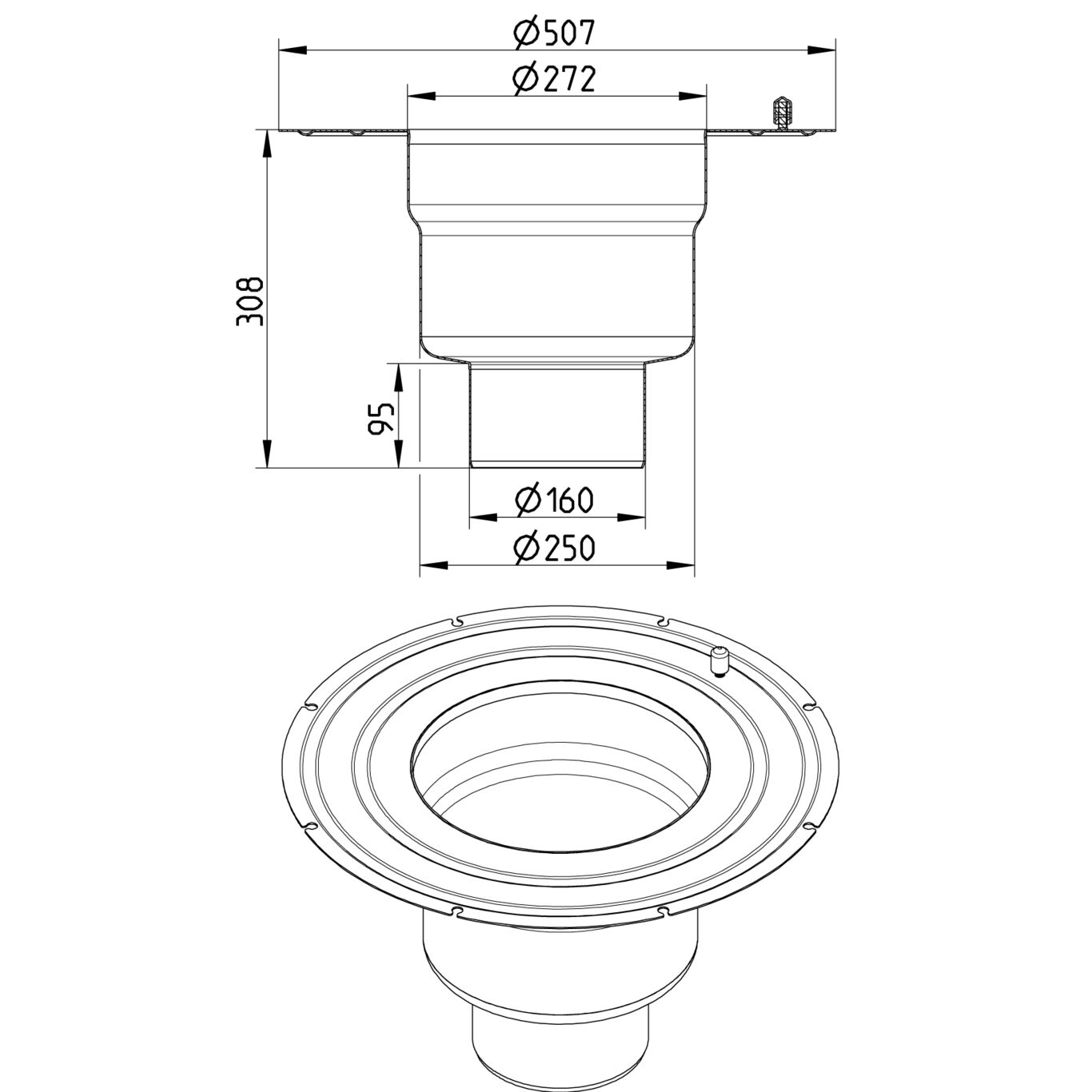

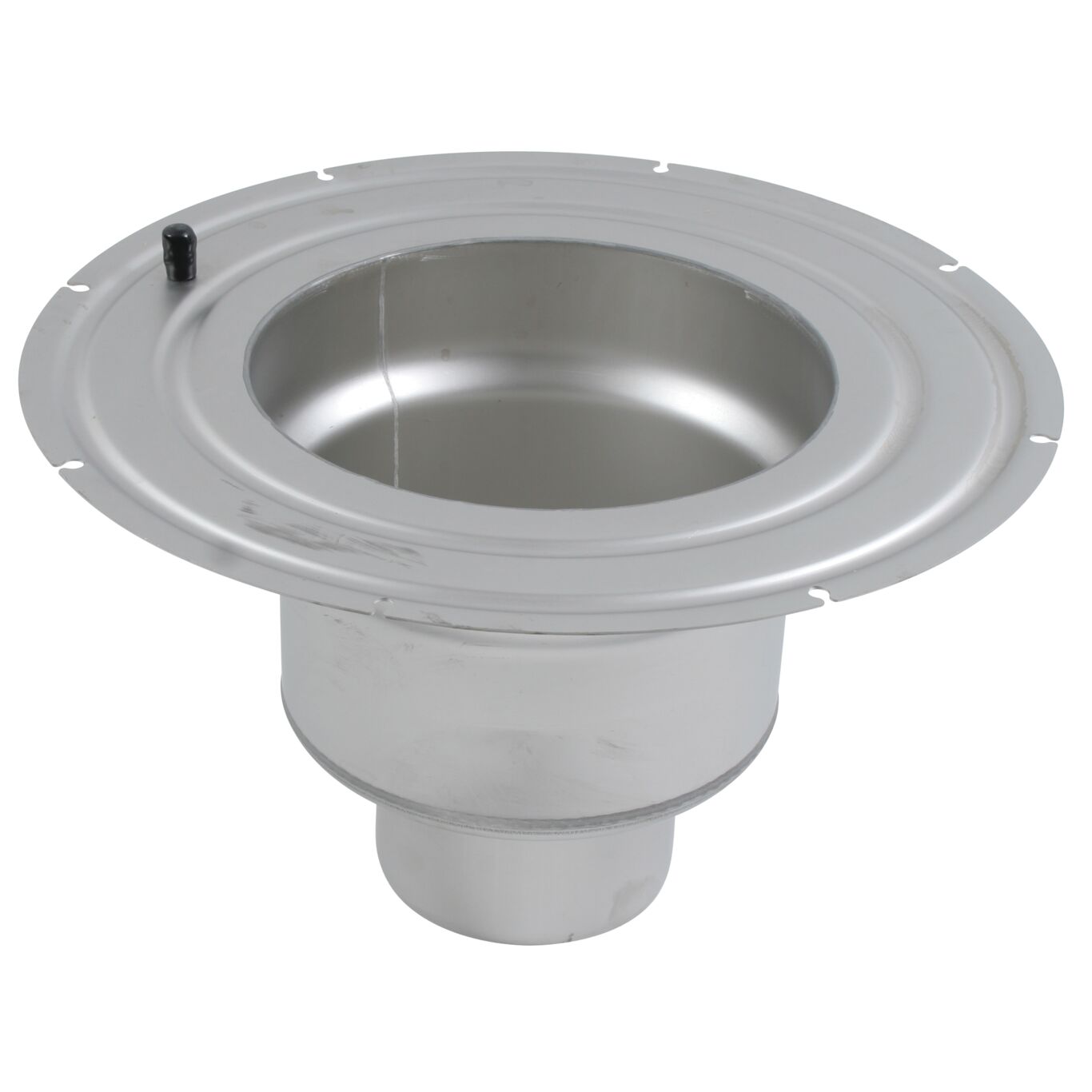

LOWER PART
-Liquid membrane flange
-Outlet: Ø160mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 308 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Weight (kg) | 5,82 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
