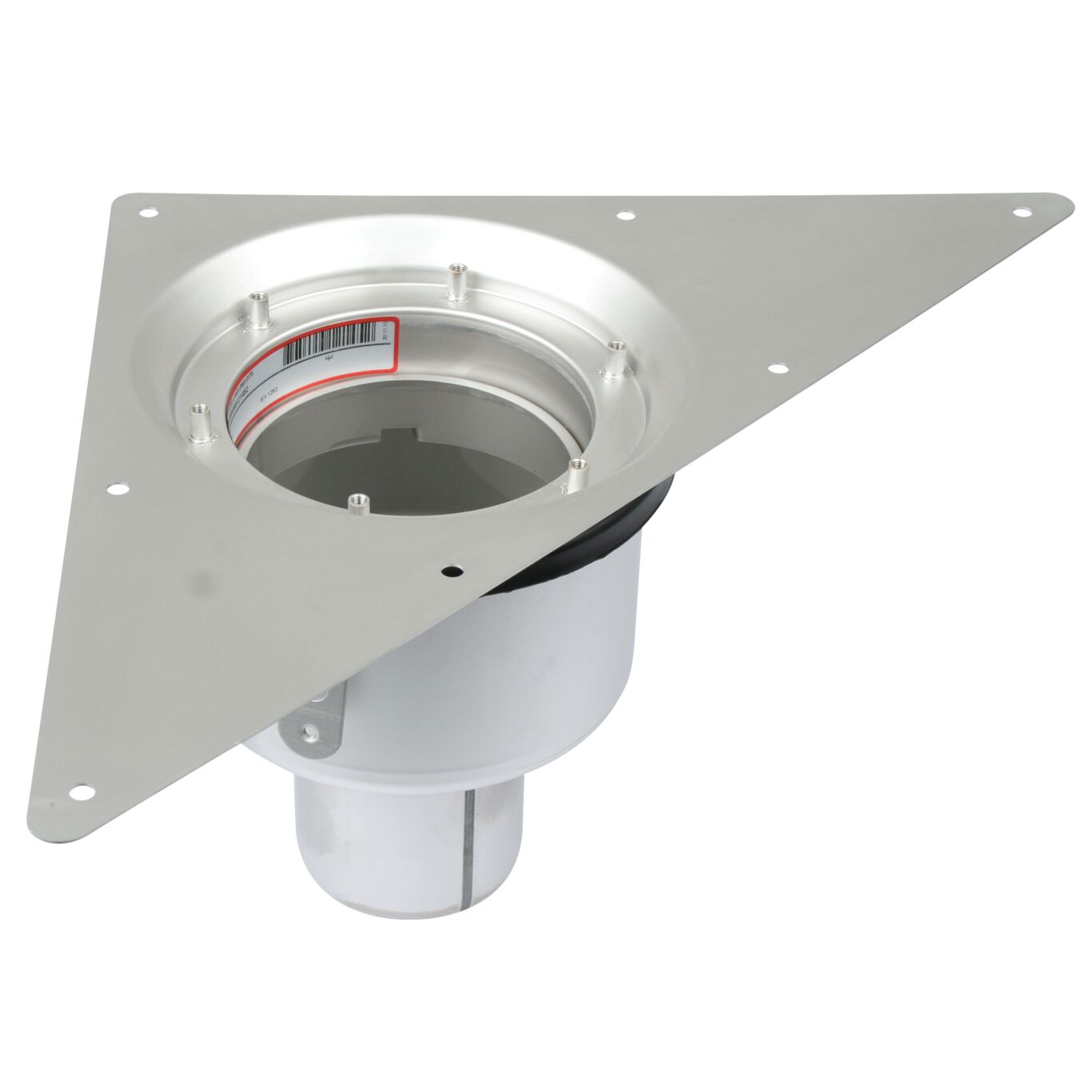

ADJUSTABLE LOWER PART MULTI FOR TRIO - (250.260.075)
Part Of the Series: MULTI lower part-triangular
Type no.: 250.260.075
EAN no.: 5705499121452
ADJUSTABLE LOWER PART MULTI FOR TRIO
-Free placing
-Flange: triangular
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 223 |
Minimum Height (mm) | 193 |
Number of Inlets | 0 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Weight (kg) | 1,28 |
-
Approval Information
For approval information, please refer to the below approval certificates.
