LOWER PART MARINE - (480.200.075 S)
×
![]()
Part Of the Series: Marine-lower part-bimetal flange-aluminium
Type no.: 480.200.075 S
EAN no.: 5705499121858
NRF no.: 3397048

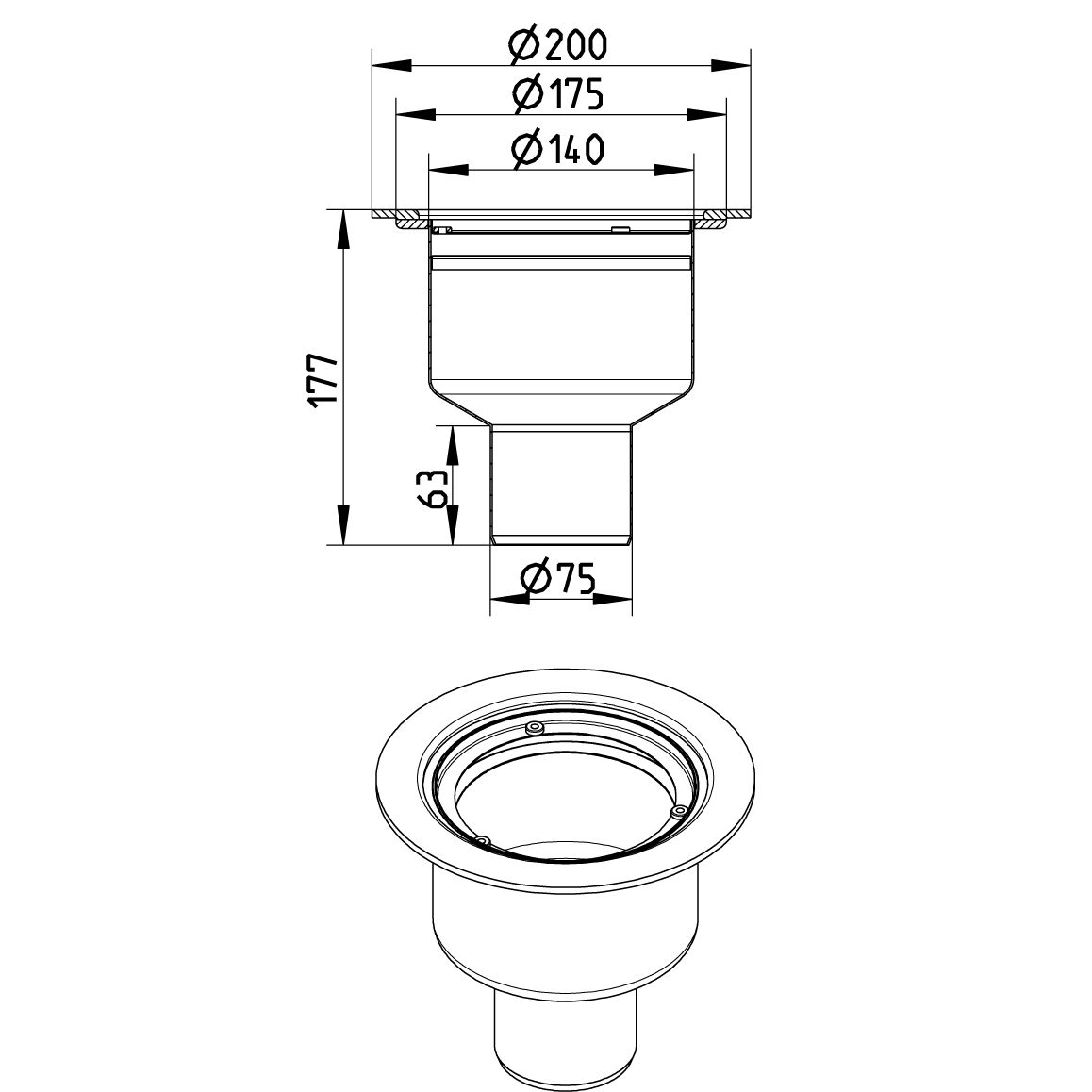

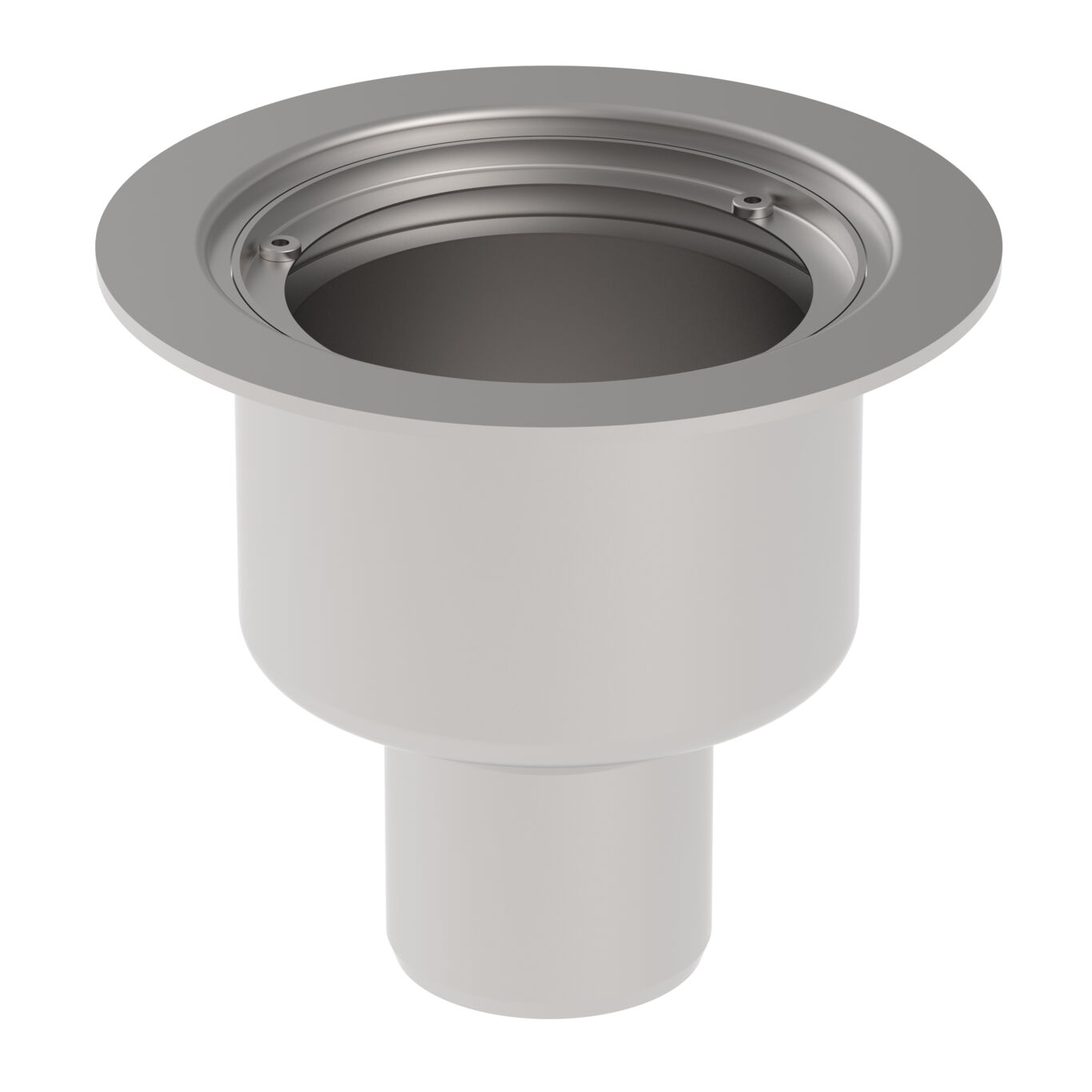

LOWER PART MARINE
-With Bimetal flange
-Deck: aluminium
-Flange: Ø200mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 177 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
TÜRK LOYDU - 25041616077231247
Declaration of Conformity Welded penetrations
