UPPER PART MARINE - (472.300.110 S)
×
![]()
Part Of the Series: Marine-upper part-155
Type no.: 472.300.110 S
EAN no.: 5705499106381
NRF no.: 3397033
Size: 155x155

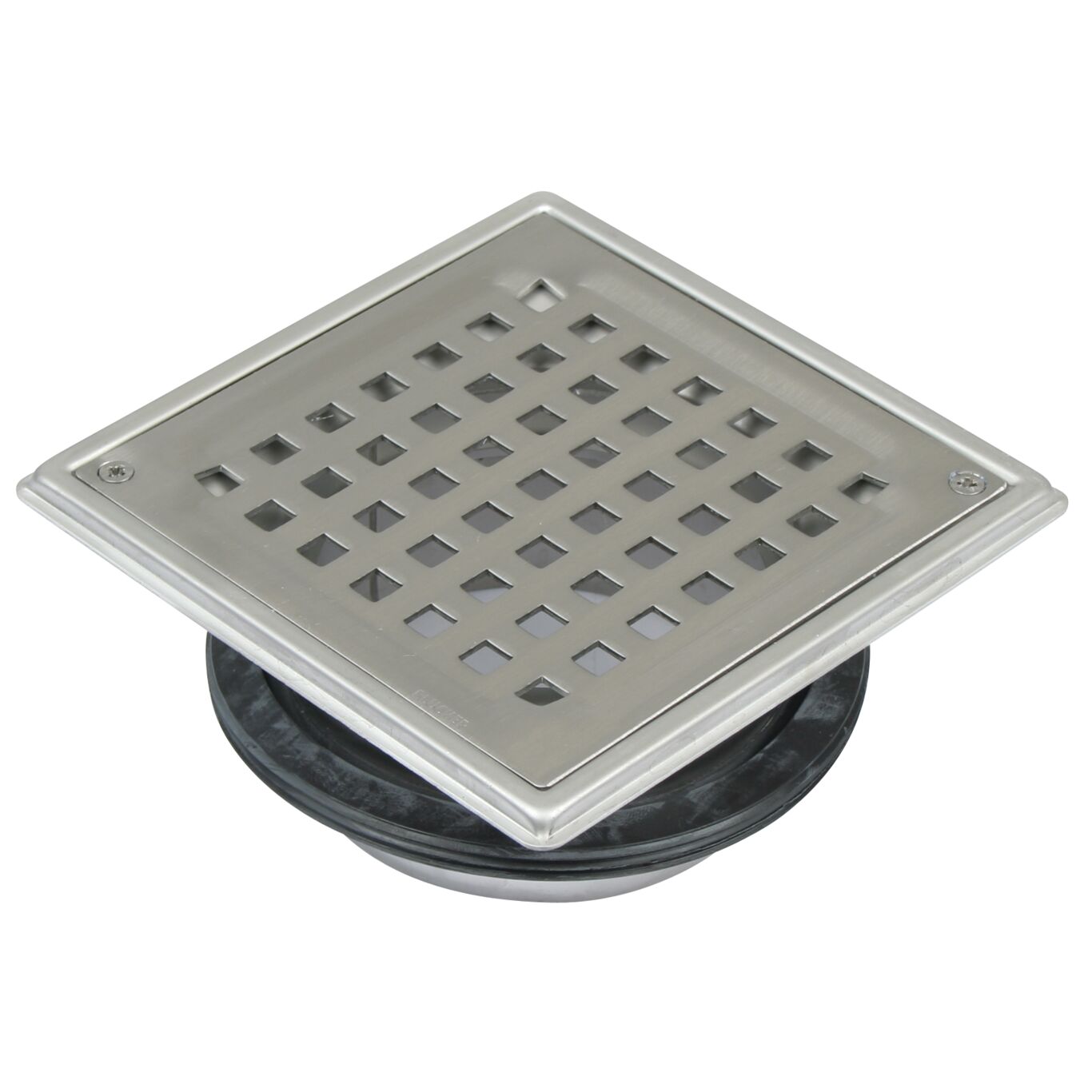

UPPER PART MARINE
-With supporting ring for water trap
-Floor: tiled and wooden

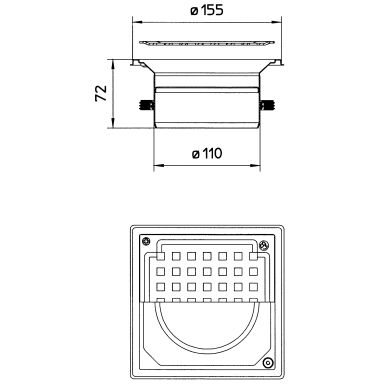

-Frame: 155x155mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 74 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 155x155 |
| Weight (kg) | 0,70 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MERB0001N3Z, Rev0
DNV - MEDB00000MA, Rev4, Marine Drains
BLÜCHER® Drains EPD Achilles Certificate - 46702 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001 Bureau Veritas - 03456-I0, ShipDrains
