LOWER PART MARINE - (470.900.075 S)
×
![]()
Part Of the Series: Marine-lower part-no welding
Type no.: 470.900.075 S
EAN no.: 5705499133325
NRF no.: 3397029

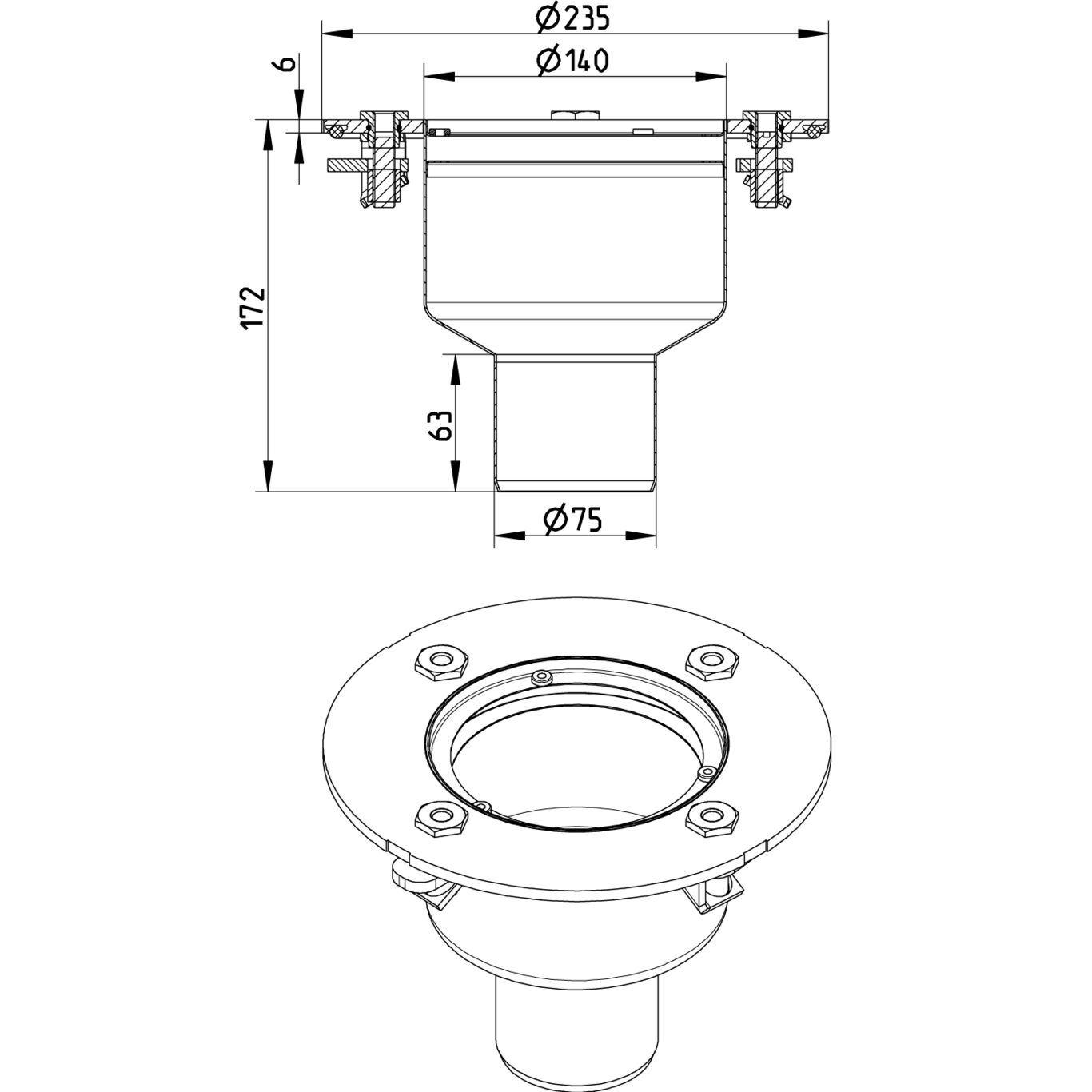

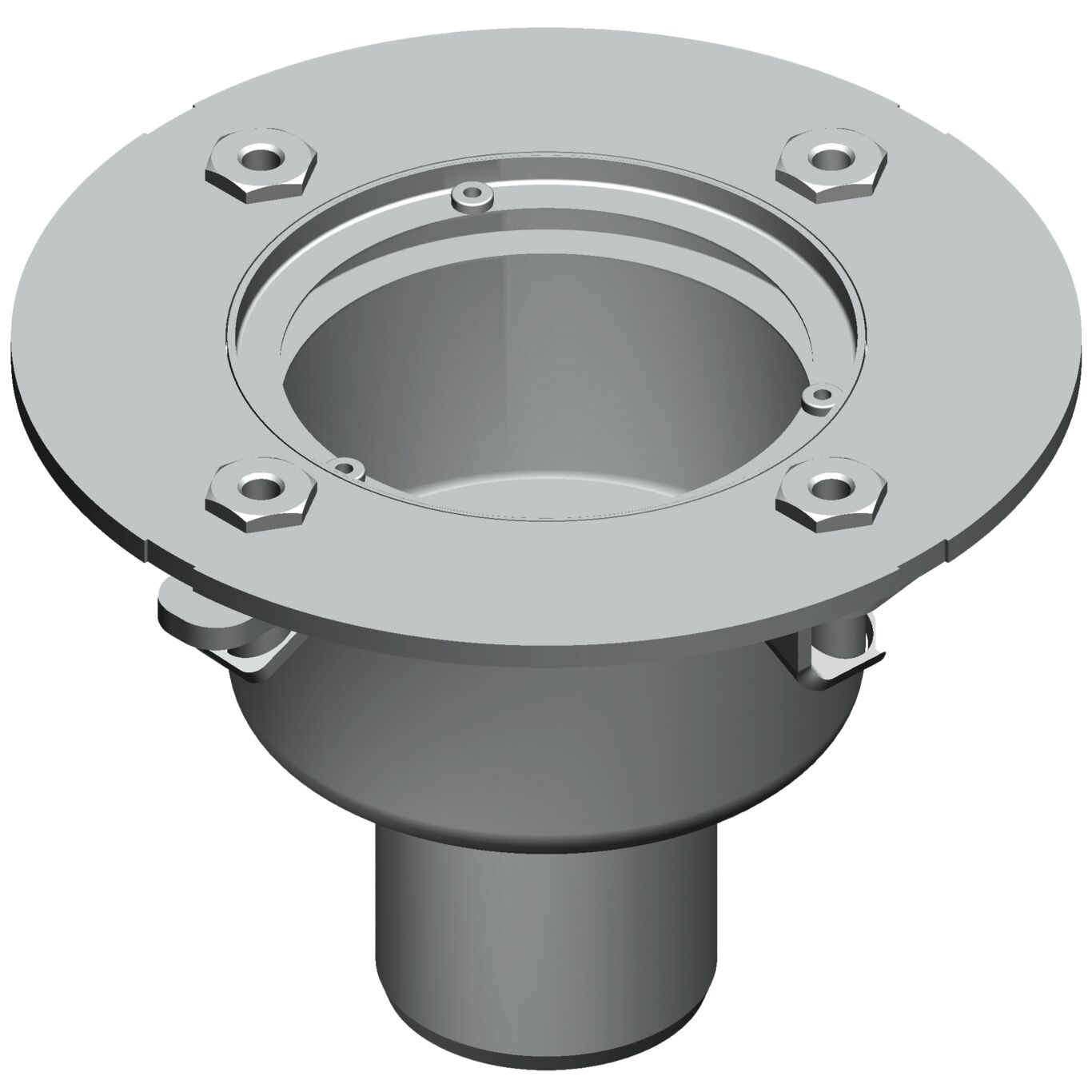

LOWER PART MARINE
-Non-welded
-Deck: aluminium and steel
-Flange: Ø235mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium / Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 172 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Weight (kg) | 2,37 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
