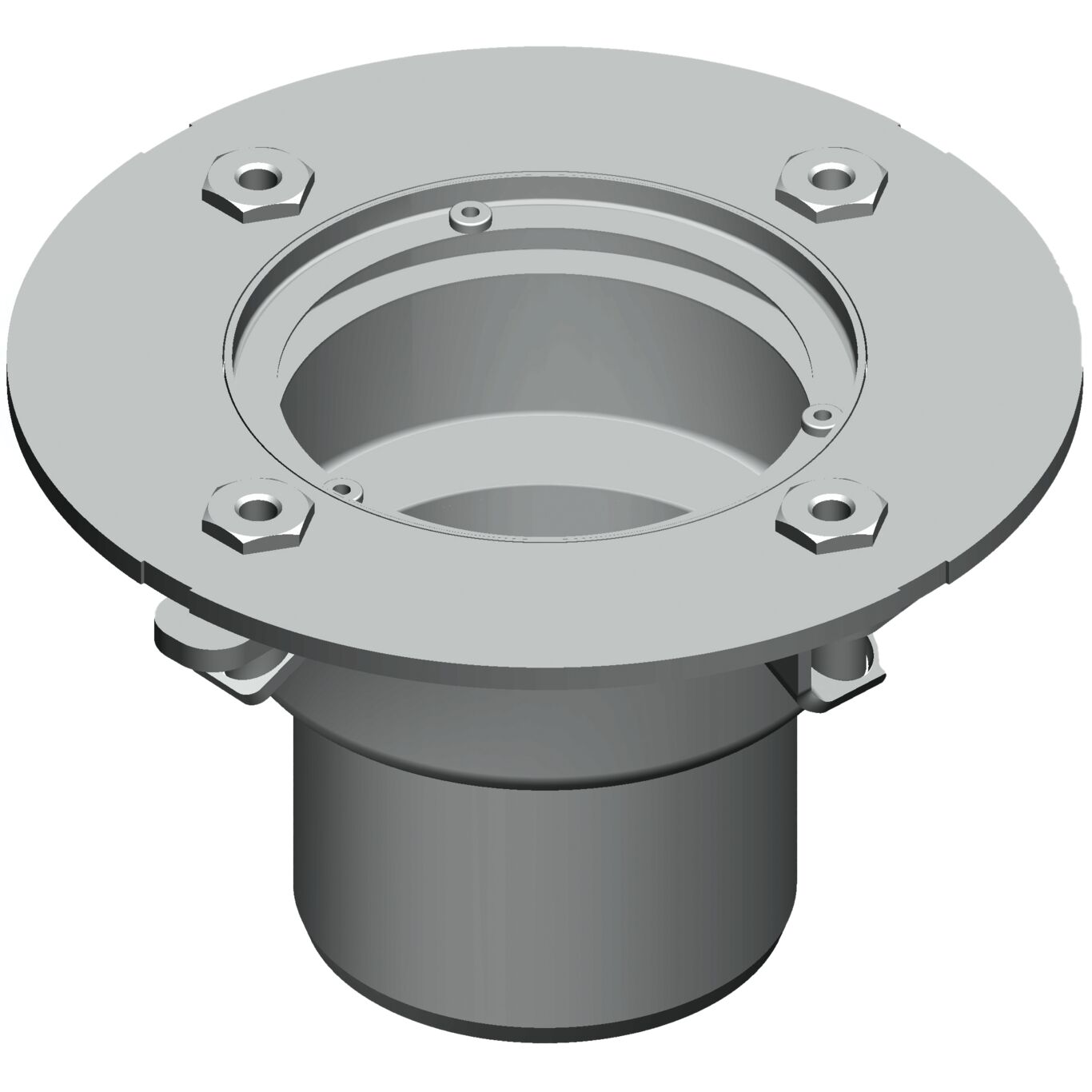

LOWER PART MARINE - (470.900.110 S)
×
![]()
Part Of the Series: Marine-lower part-no welding
Type no.: 470.900.110 S
EAN no.: 5705499133332
NRF no.: 3397031
LOWER PART MARINE
-Non-welded
-Deck: aluminium and steel

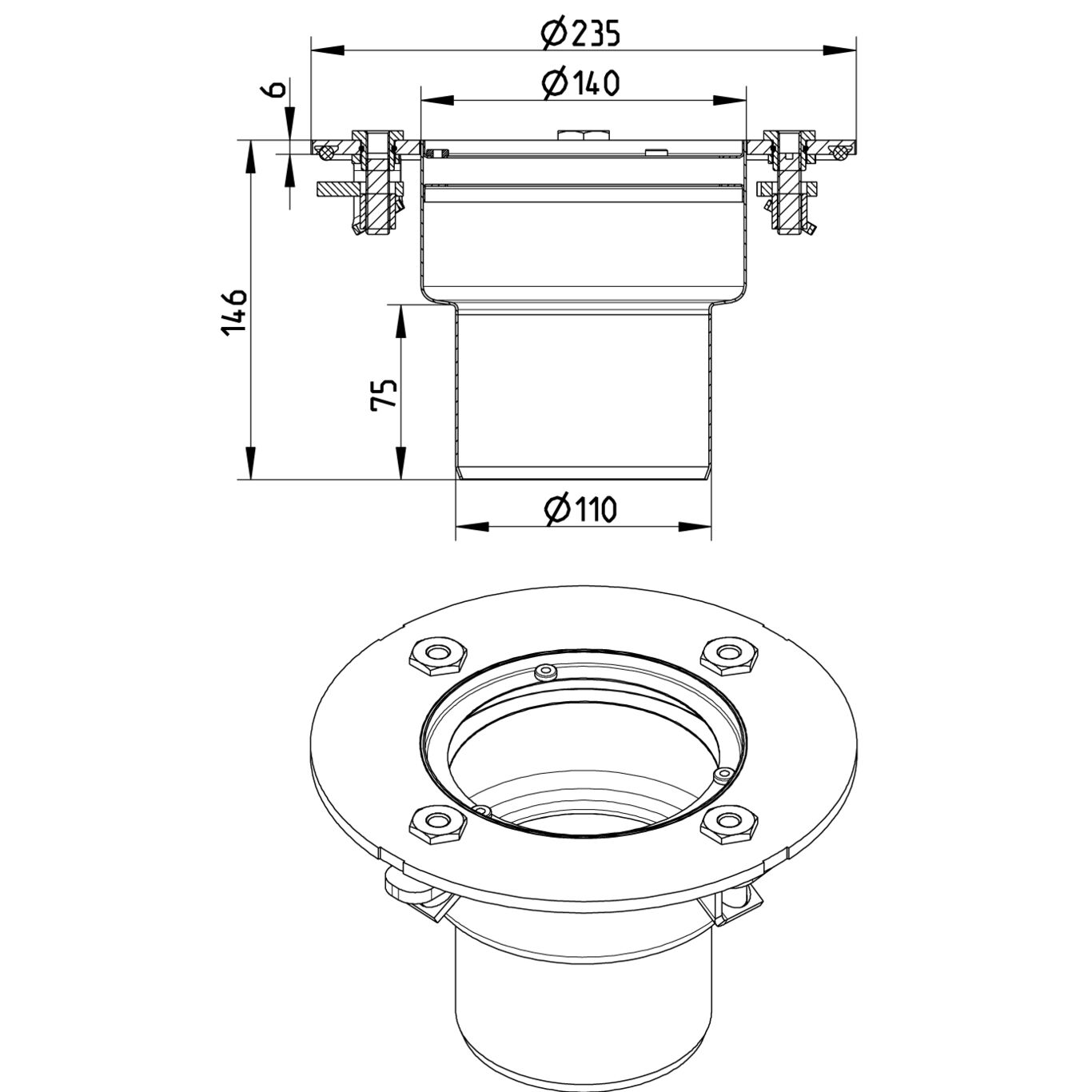

-Flange: Ø235mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium / Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 141 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 2,33 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
BLÜCHER® Drains EPD
Declaration of Conformity Welded penetrations
TÜRK LOYDU - 25041616077231247 Bureau Veritas - 03456-I0, ShipDrains ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02 RINA -MAC320524XG EuroPipe
