LOWER PART MARINE - (470.200.110)
×
![]()
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 470.200.110
EAN no.: 5705499106237

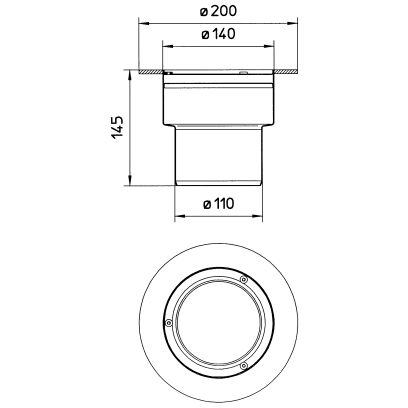

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø200mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 141 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,24 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev4, Marine Drains
TÜRK LOYDU - 25041616077231247
BLÜCHER® Drains EPD
DNV - MERB0001N3Z, Rev0 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC320524XG EuroPipe Achilles Certificate - 46702 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas - 03456-I0, ShipDrains Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA
