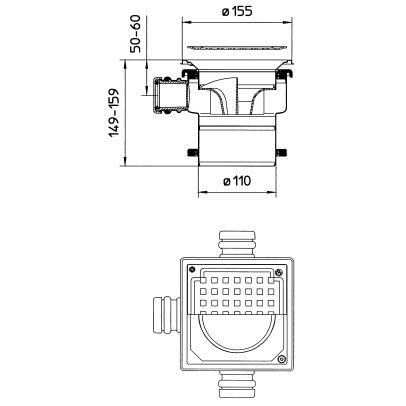

UPPER PART MARINE - (471.300.110)
×
![]()
Part Of the Series: Marine-upper part-155
Type no.: 471.300.110
EAN no.: 5705499106350
NRF no.: 3396733
Size: 155x155
UPPER PART MARINE
-With side inlets
-Floor: tiled and wooden
-Frame: 155x155mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Tiled / Wooden |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 160 |
| Minimum Height (mm) | 150 |
| Number of Inlets | 3 (Ø32/40mm) |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 155x155 |
| Weight (kg) | 3,00 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Bureau Veritas - 03456-H0, ShipDrains RU - 0212321 Drains-21 Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22
