LOWER PART MARINE - (475.200.050 S)
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 475.200.050 S
EAN no.: 5705499106329
NRF no.: 3397042

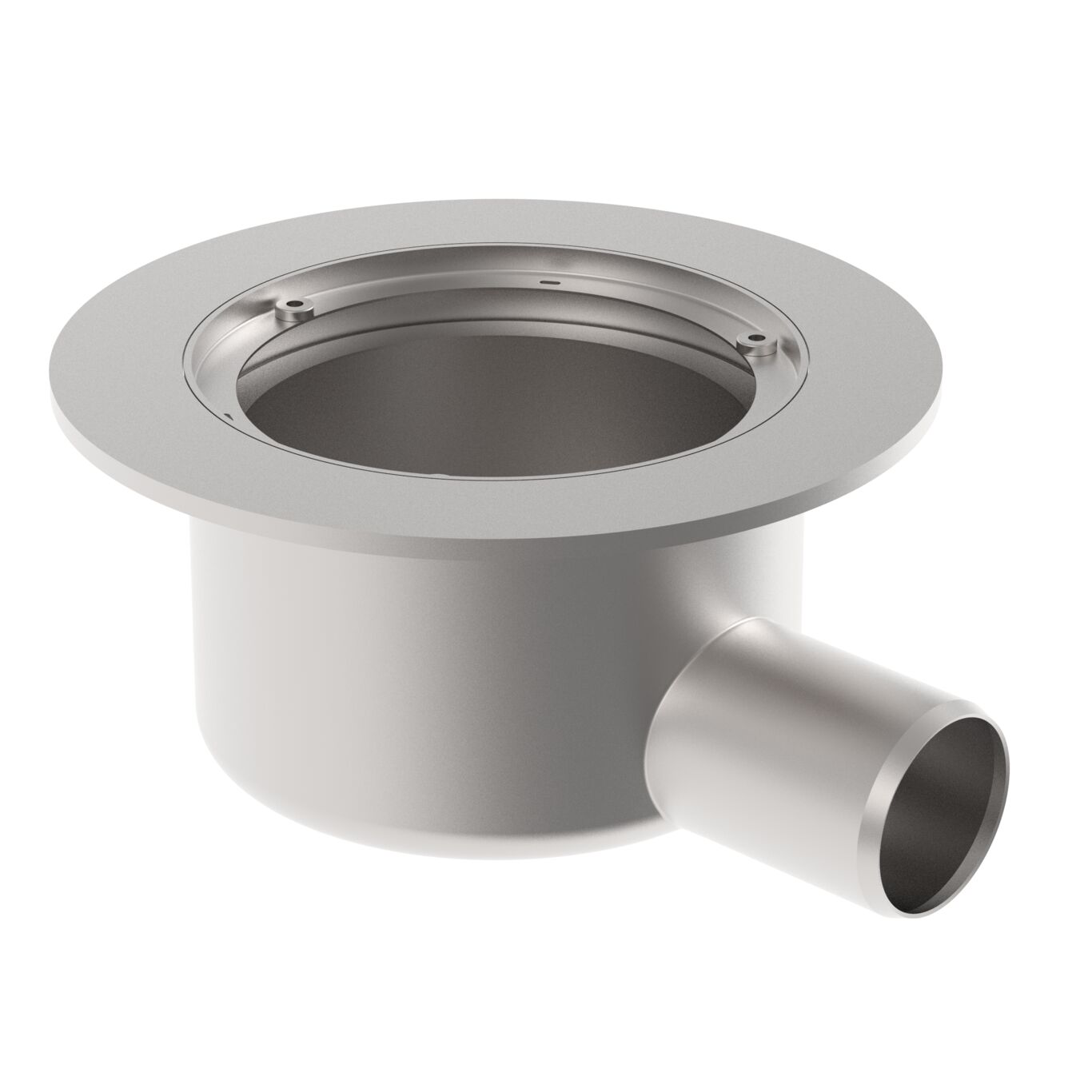

LOWER PART MARINE
-With welding flange
-Deck: steel

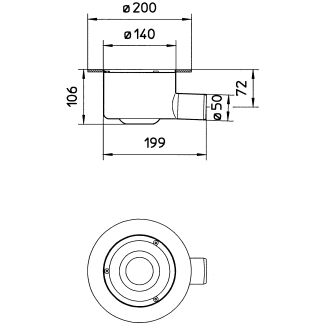

-Flange: Ø200mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 106 |
Number of Inlets | 0 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Weight (kg) | 1,30 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Lloyds Register LR22419510TA RU - 0212321 Drains-21 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev4, Sanitary discharge pipes Bureau Veritas - 03456-H0, ShipDrains Achilles Certificate - 46702-22
