LOWER PART HORISONTAL - (475.000.114 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 475.000.114 S
EAN no.: 5705499140590

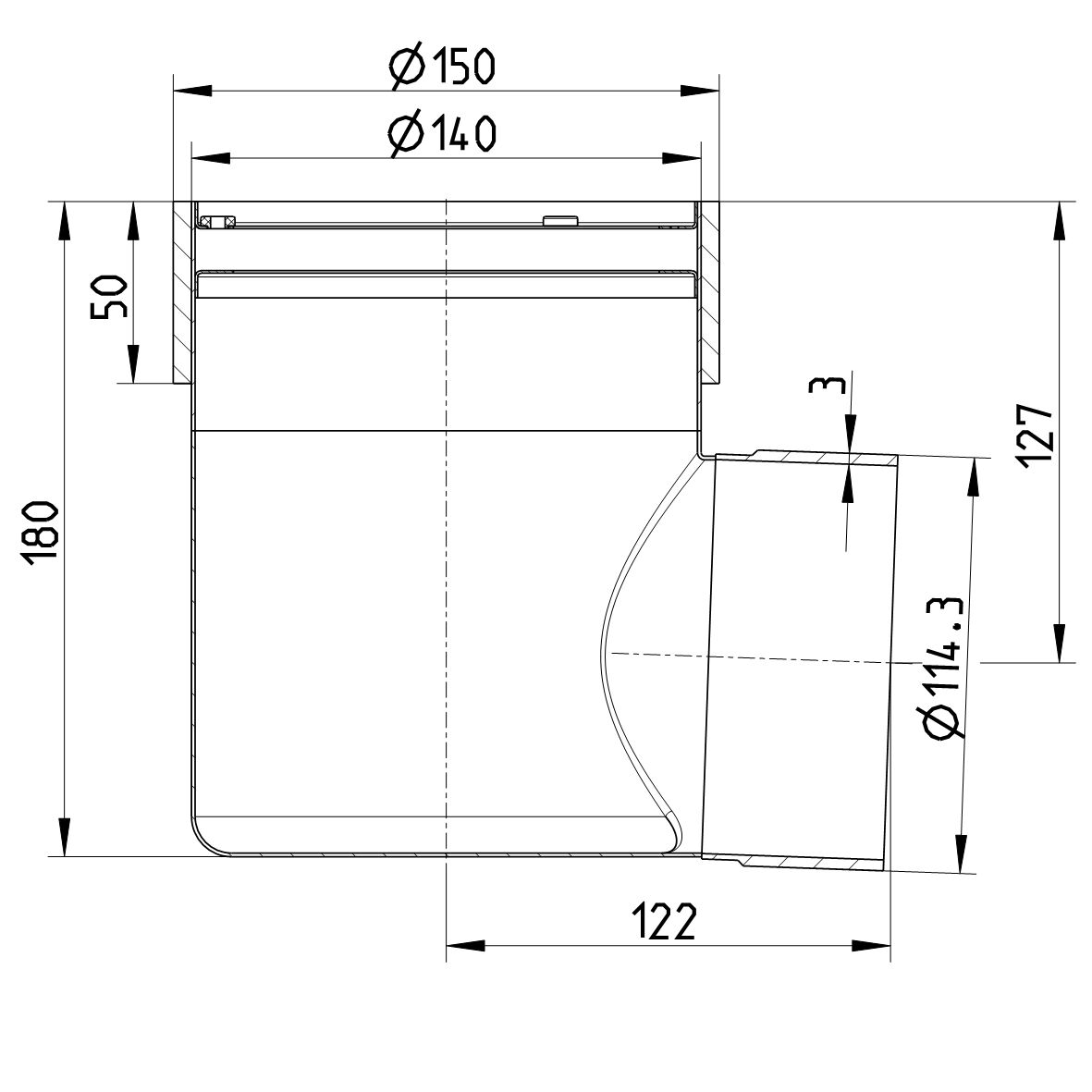

LOWER PART HORISONTAL
- With welding sleeve
- Deck: Steel
- Outlet: Ø114,3 x 3m, horizontal
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 180 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 114.3 |
| Outlet Direction | Horizontal |
| Weight (kg) | 2,13 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MERB0001N3Z, Rev0
BLÜCHER® Drains EPD
DNV - MEDB00000MA, Rev4, Marine Drains
TÜRK LOYDU - 25041616077231247 Achilles Certificate - 46702 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC320524XG EuroPipe Bureau Veritas - 03456-I0, ShipDrains
