LOWER PART VERTICAL - (470.000.076 S)
×
![]()
Part Of the Series: Marine-lower part-welding sleeve-steel
Type no.: 470.000.076 S
EAN no.: 5705499140538

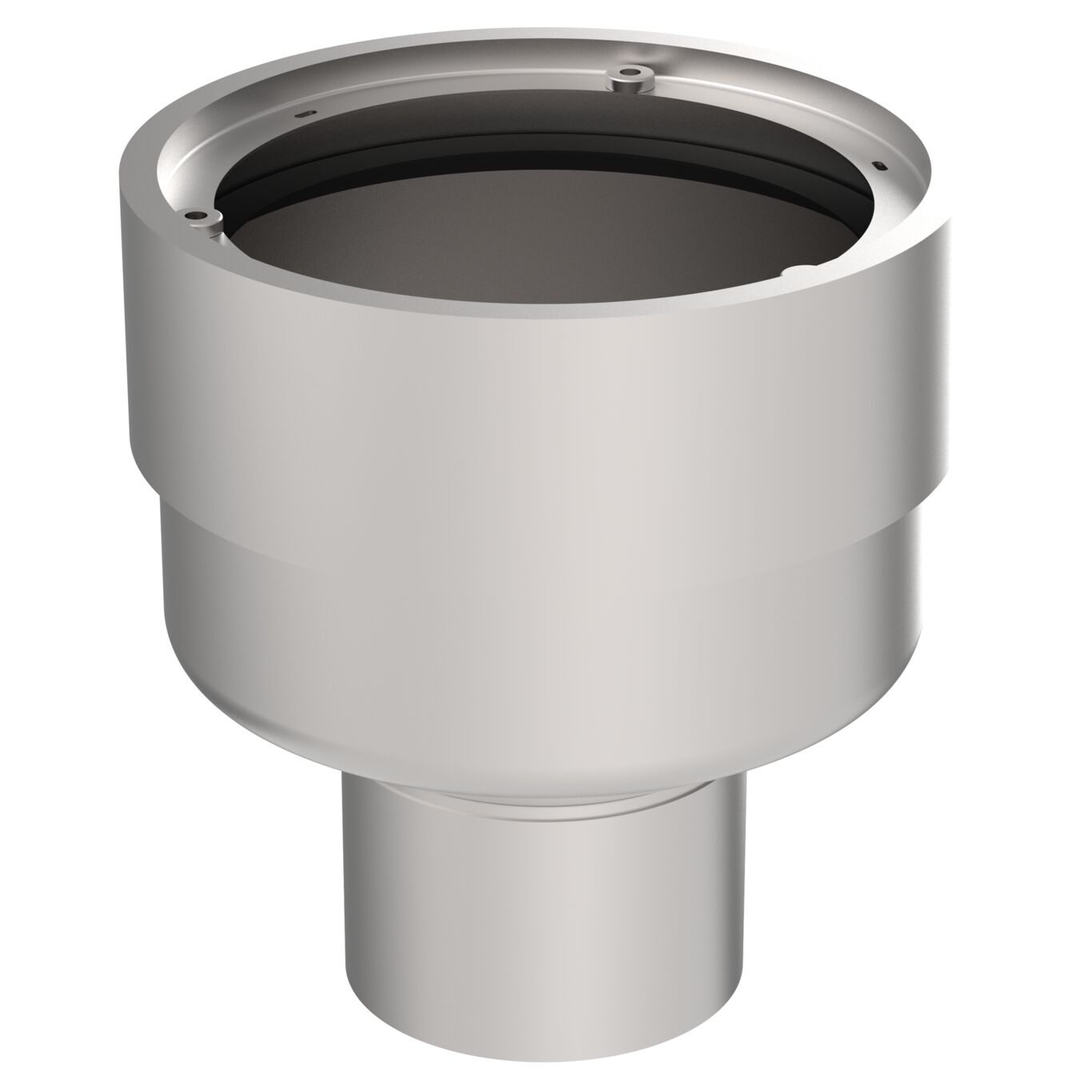

LOWER PART VERTICAL
- With welding sleeve
- Deck: Steel
- Outlet: Ø76,1 x 3,6mm, vertical
- Stainless steel: AISI316L/EN1.4404

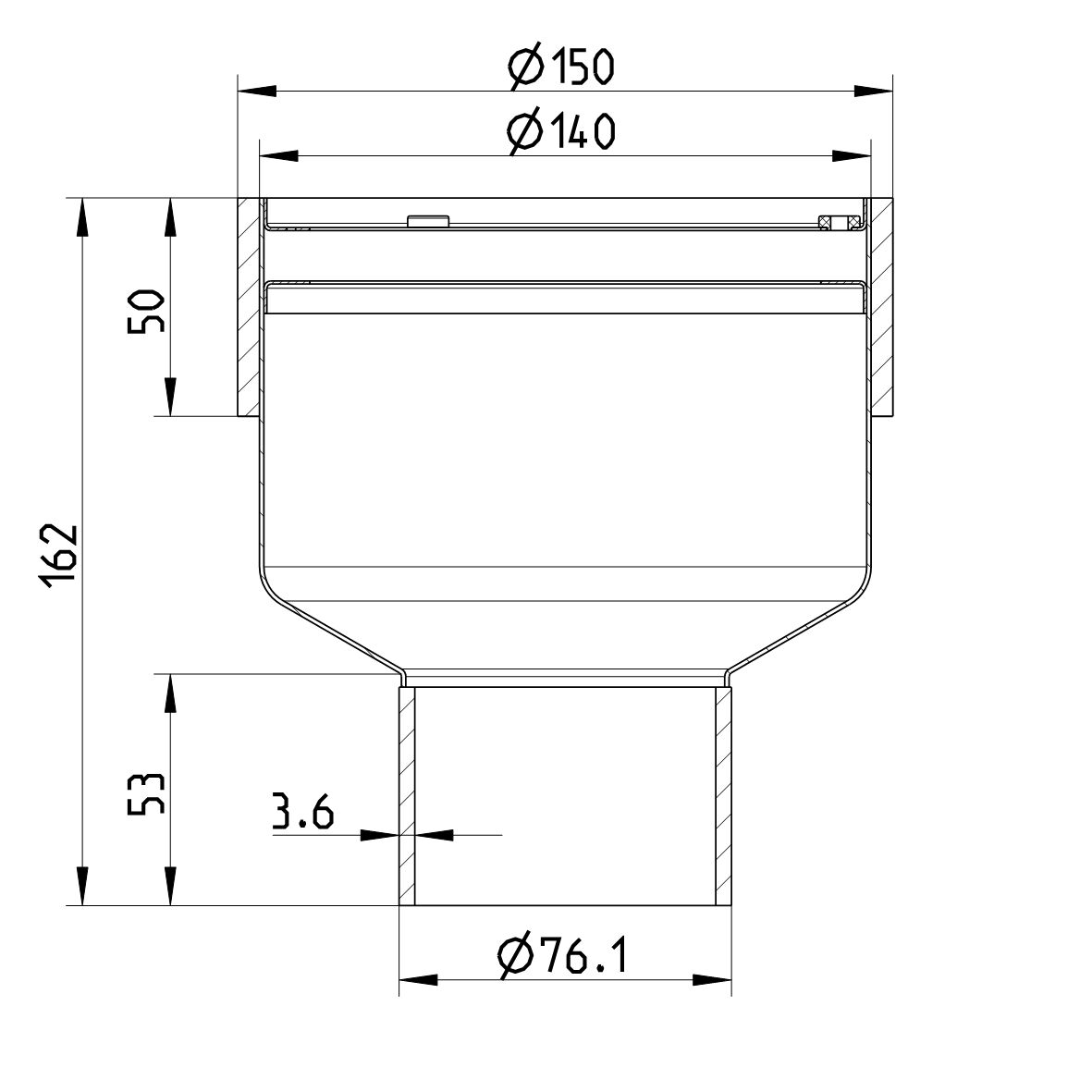

| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 162 |
| Number of Inlets | 0 |
| Outlet Diameter (mm) | 76.1 |
| Outlet Direction | Vertical |
| Weight (kg) | 1,77 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
TÜRK LOYDU - 25041616077231247
DNV - MERB0001N3Z, Rev0
BLÜCHER® Drains EPD
Declaration of Conformity Welded penetrations
