ROOF DRAIN FOR GRAVITY - (403.104.110)
Part Of the Series: Drain for gravity-bitumen collar
Type no.: 403.104.110
EAN no.: 5705499133165
VVS no.: 164102110
LVI no.: 3384542

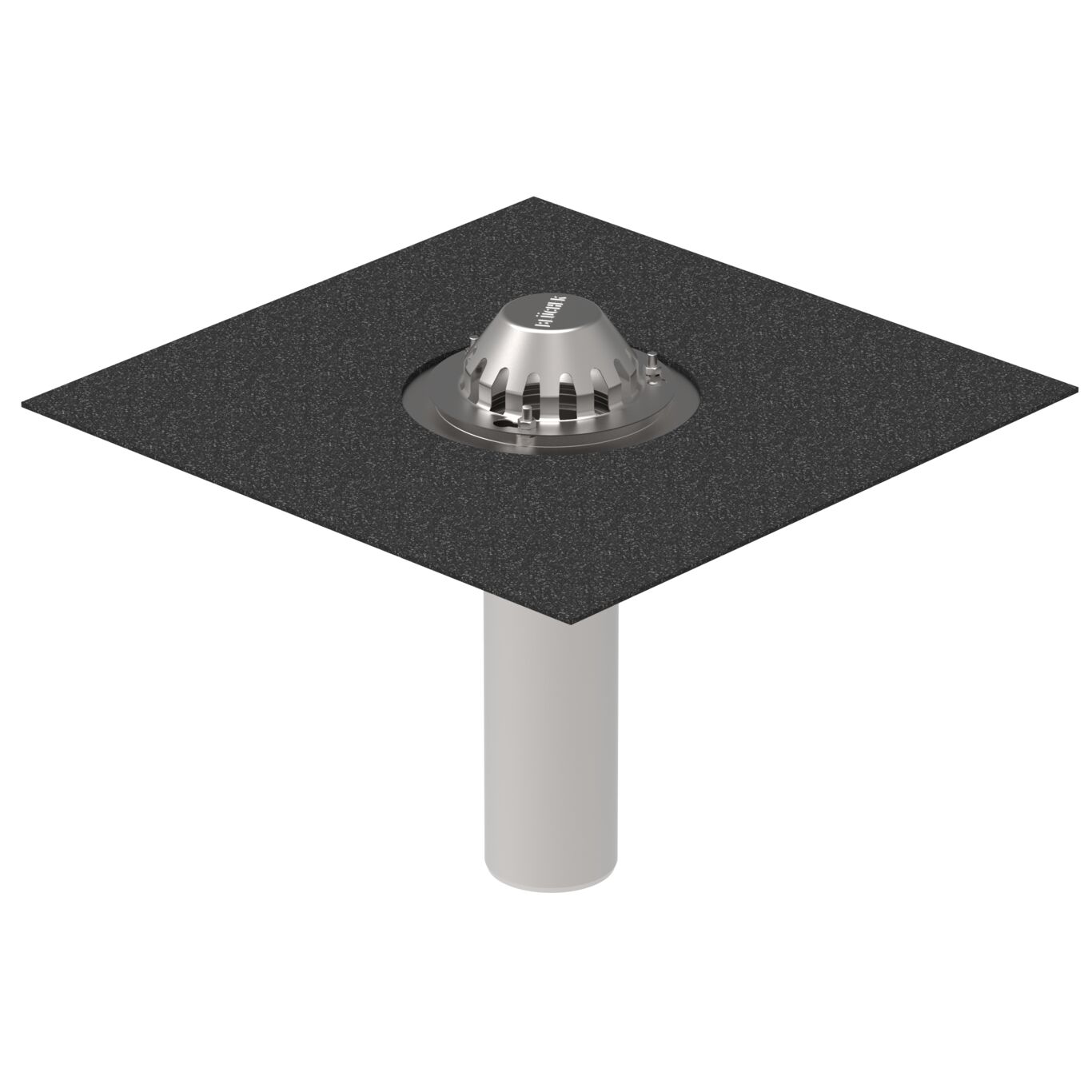

ROOF DRAIN FOR GRAVITY
-With pre-mounted bitumen collar
-Roof: bitumen

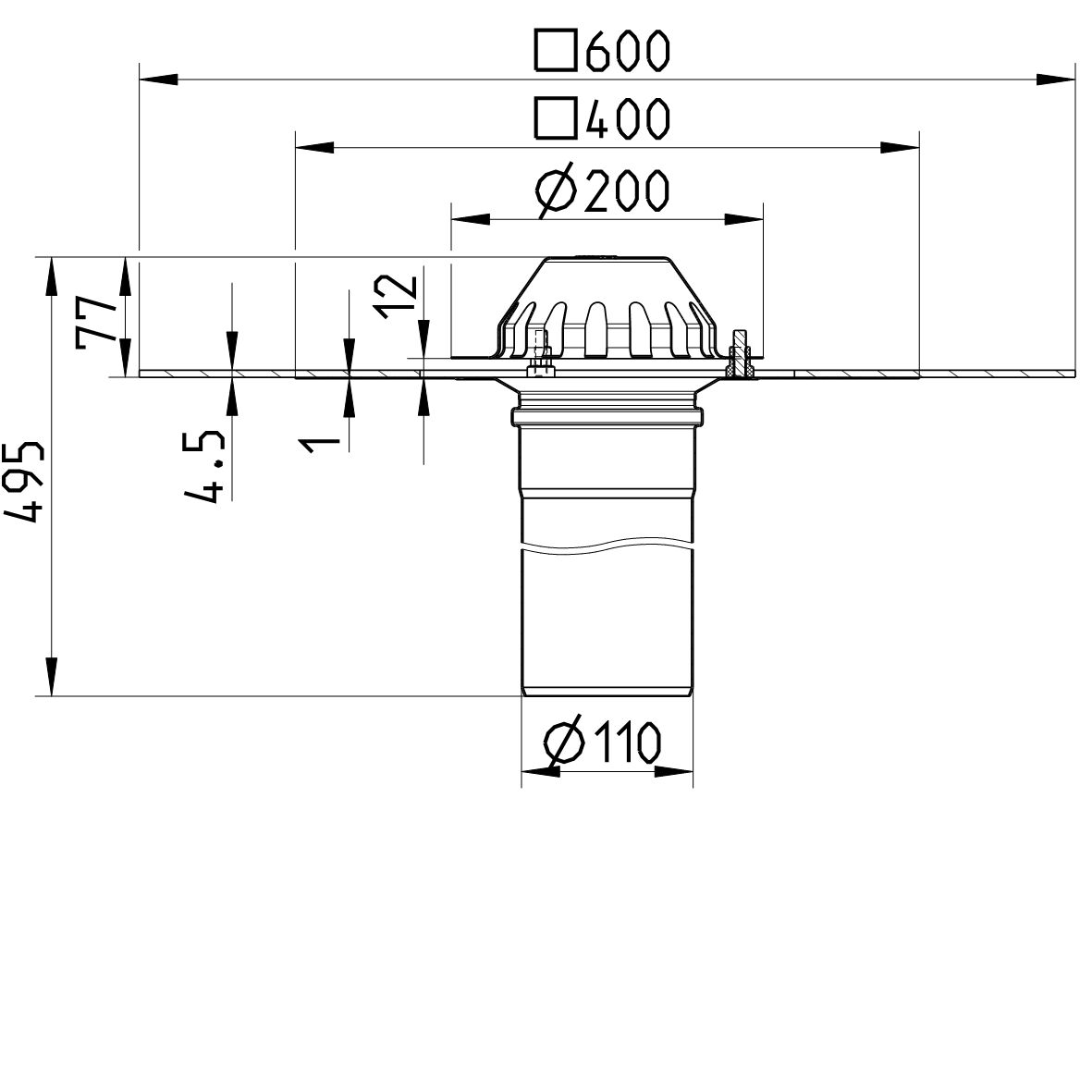

-Flange: 400x400mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 5.1 |
Minimum Height (mm) | 495 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Roof | Bitumen |
System | Gravity |
Weight (kg) | 3,85 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
