ROOF DRAIN FOR GRAVITY - (401.106.110)
×
![]()
Part Of the Series: Drain for gravity-bitumen
Type no.: 401.106.110
EAN no.: 5705499141184

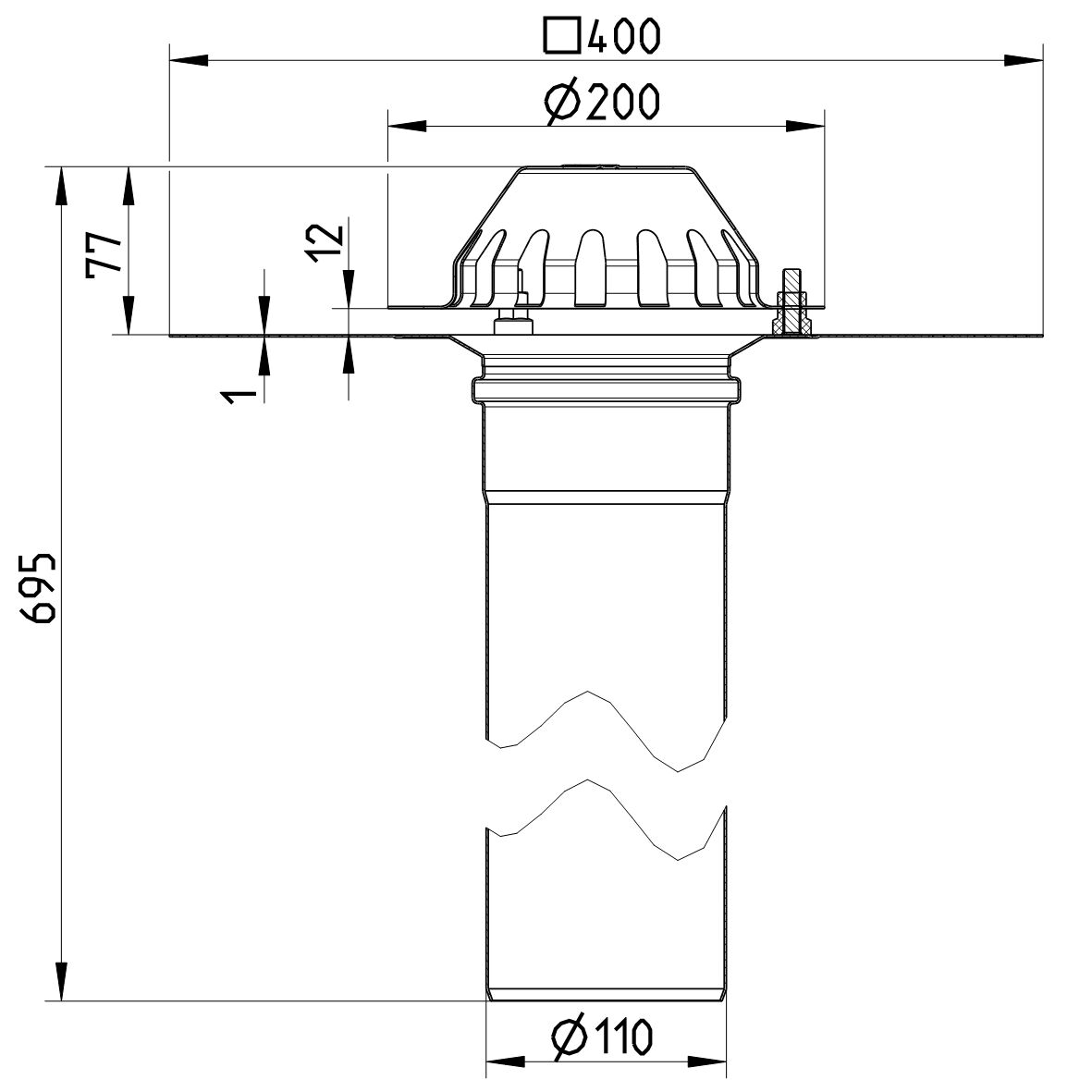

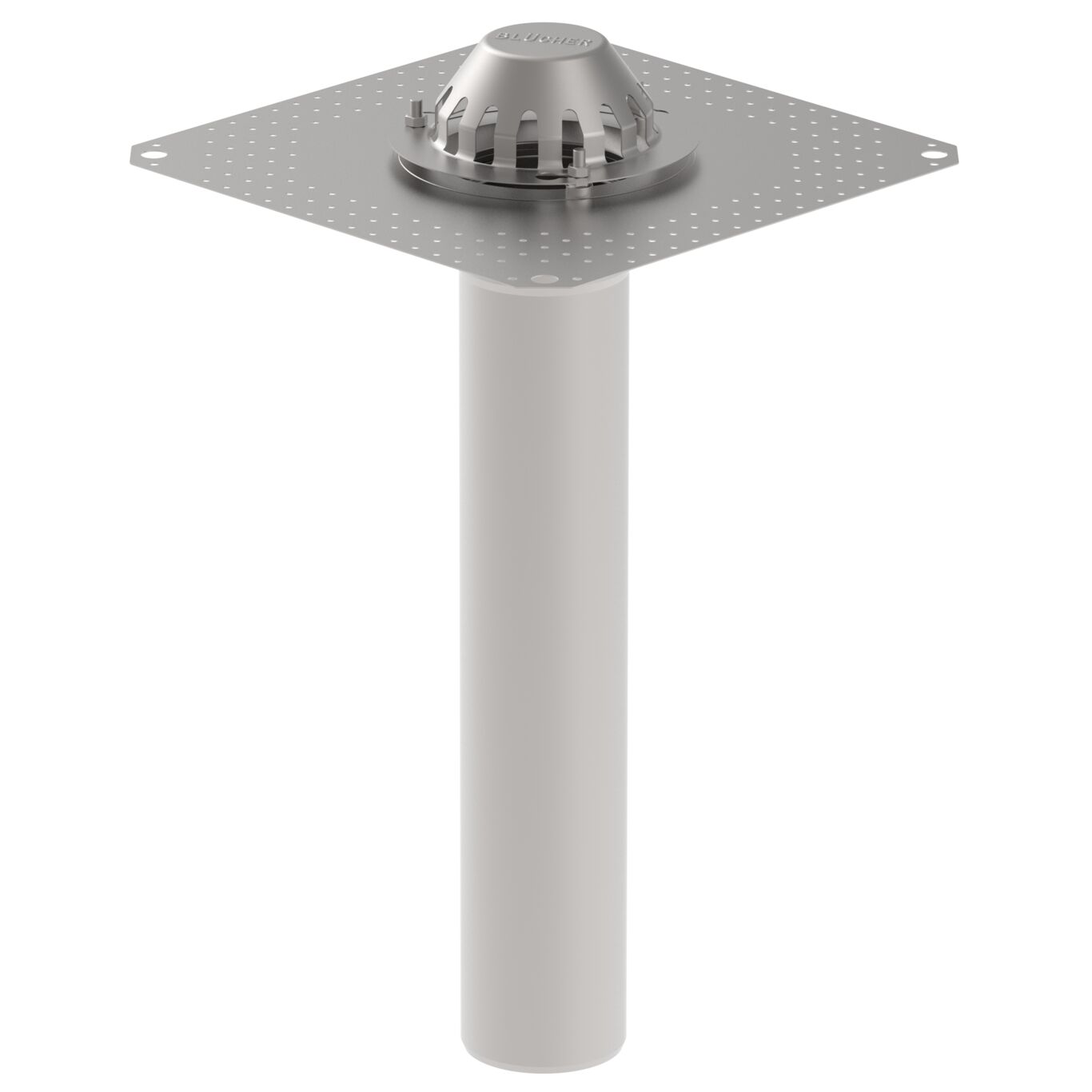

ROOF DRAIN FOR GRAVITY
- Roof: Bitumen
- Flange: 400x400mm
- Outlet: Ø110mm, vertical
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 5.1 |
| Minimum Height (mm) | 695 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Gravity |
| Weight (kg) | 3,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
